Name: Sharp Trolley PD04 Tipster Mobile Mount for Large Format Displays
Brand: Sharp
SKU: sharp-trolley-pd04-tipster
Availability: InStock

Overview

The Sharp Trolley PD04 Tipster is a dark grey mobile mount for a single display from 32 to 75 inches, rated for up to 50 kg. It has four fixed height settings, four lockable wheels, VESA patterns from 100 x 200 to 400 x 400 mm and cable routes through its cast aluminium foot. It suits corporate meeting rooms where one screen moves between spaces. Request a quote.

A mobile mount for one large display

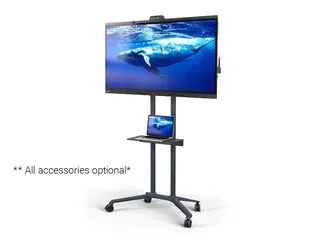

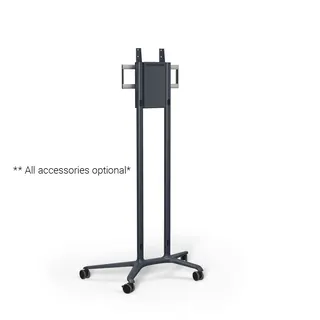

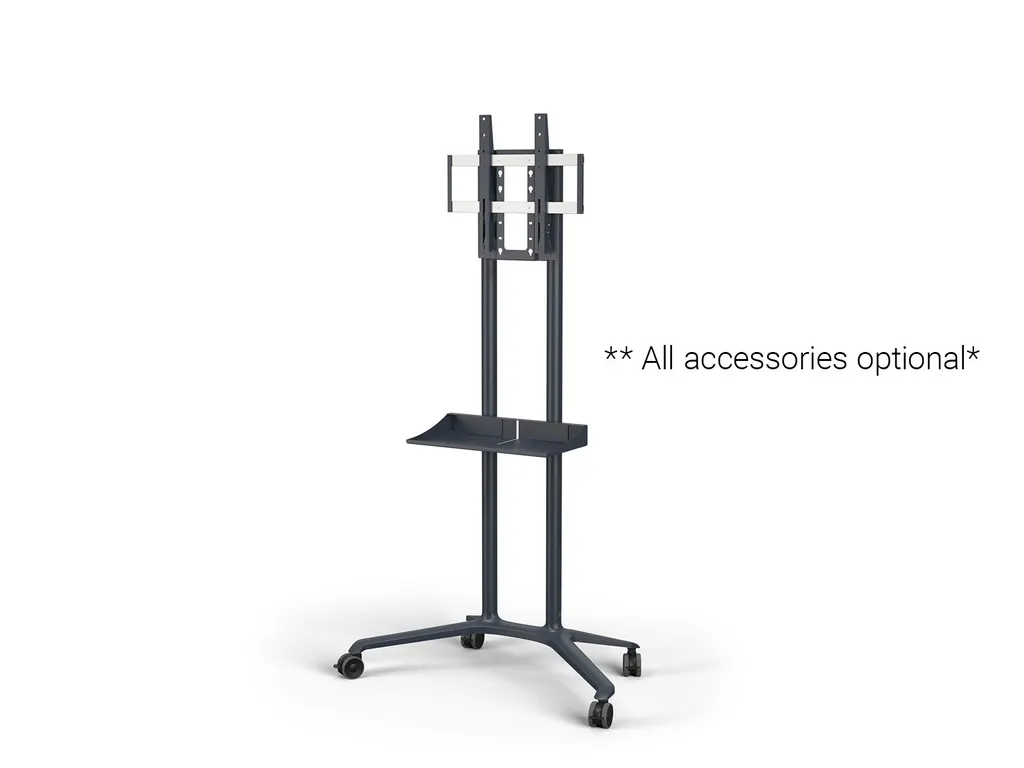

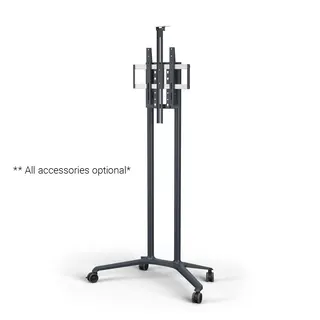

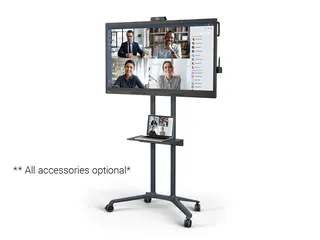

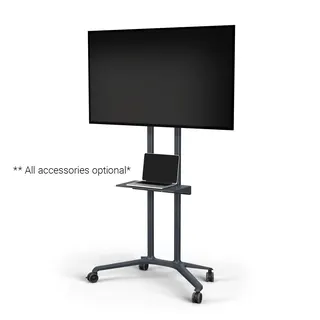

The Sharp Trolley PD04 Tipster (order code L50PD04-TIPSTER) is a floor-standing mobile mount that carries one display of 32 to 75 inches and a load of up to 50 kg. It is finished in Dark Grey RAL7016 and arrives with its wheels, a VESA adapter and fixings, so the screen can be moved to the next room without fixing a bracket to the wall.

The specifications that shape your decision

Heights: four fixed height settings, chosen to suit seated or standing viewers.
Mounting: VESA patterns from 100 x 200 mm up to 400 x 400 mm, with a VESA adapter in the box.
Mobility: four large lockable wheels, so the display can roll between rooms and stay put once positioned.
Size: 942 x 1,730 x 555 mm (W x H x D), weighing 18.0 kg with a 20 kg shipping weight.
Cabling: the pipes have room for cables, which can exit just above the cast aluminium foot or beneath it.

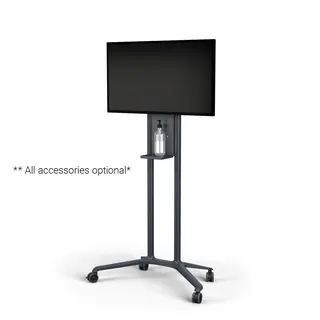

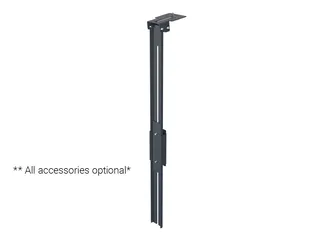

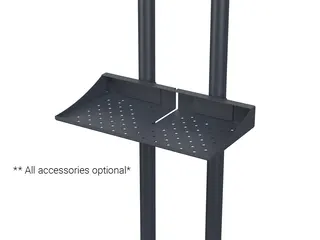

The manufacturer describes the trolley as suitable for presentation use in corporate environments and conferences. Orientation needs care: the feature notes describe both portrait and landscape use, while the specification sheet lists landscape. Confirm the orientation you need with the SmartRooms Qatar team before ordering. Optional accessories in the same Dark Grey RAL7016 finish are the PD04-CS Camera Shelf, PD04-DH Disinfection Holder, PD04-MB Media Box and PD04-MS Multi-use Shelf, each with its own order code.

Where it fits in Qatar

A private school in Al Wakrah fitting out a new block may want one 65-inch panel to serve several classrooms in turn. A trolley lets staff move it between rooms without drilling a wall in each one. In West Bay, a corporate office with a boardroom and a training room can share a single screen between both spaces, rolling it to wherever the meeting is held. An education or training centre in Education City running workshops in different halls can use the same approach for short courses across the building.

Planning checks before you order

Check the display's weight against the 50 kg limit and its rear VESA pattern against the 100 x 200 to 400 x 400 mm range. The manufacturer lists compatibility with the PN-LM431 and PN-LM551. Measure the route from the delivery point to the room, including doorways and lifts, since the trolley is 942 mm wide and 1,730 mm tall. The data does not give an operating temperature range for the trolley, so for a lobby or a window-facing space, confirm the environment with the SmartRooms Qatar team first. Ministries, schools and companies can issue an LPO against a quotation, and SmartRooms Qatar offers a free site survey to check the room and route before purchase.

Request a quote

Send us the model of your display and a sketch of the room layout. The SmartRooms Qatar team will confirm whether the trolley is right for that display, and whether any optional shelf, media box or camera shelf is needed. A quotation usually follows within one working day.

Highlights

Supports single displays from 32 to 75 inches
Maximum load capacity of 50 kg
Four fixed height settings for audience positioning
Four large lockable wheels for moving between rooms
VESA patterns from 100 x 200 to 400 x 400 mm
Listed as compatible with PN-LM431 and PN-LM551

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

13 specifications · Source: manufacturer · checked Oct 2026

Mount5

Mount Type: Mobile Mount
Installation: Single
Orientation: Landscape
Max. Load Capacity [kg]: 50
Recommended Display Size [inch]: 32 to 75

Mechanical1

Height Adjustment [mm]: 4 fixed heights

Weight And Dimensions3

Dimensions (W x H x D) [mm]: 942 x 1,730 x 555
Weight [kg]: 18.0
Shipping Weight [kg]: 20

Vesa1

VESA Pattern [mm]: 100 x 200 to 400 x 400

Accessories1

Optional Accessories: PD04-CS Camera Shelf - Dark Grey RAL7016 - (Order Code 100015734); PD04-DH Disinfection Holder - Dark Grey RAL7016 - (Order Code 100015735); PD04-MB Media Box - Dark Grey RAL7016 - (Order Code 100015736); PD04-MS Mulit-use Shelf - Dark Grey RAL7016 - (Order Code 100015737)

Additional Features2

Colour Versions: Dark Grey RAL7016
Shipping Content: Manual; Screws; Spacers; Trolley with 4 wheels; VESA Adapter

Downloads

3 files from the manufacturer

PDF Datasheets NEC_Datasheet_TrolleyTripsterPD04-en.pdf 561 KB PDF Manuals & guides Installation-Manual_PD04-Tipster.pdf 9.0 MB PDF Drawings & CAD PD04-Tipster-Drawings.pdf 232 KB

Questions about Trolley PD04 Tipster

What is the Sharp Trolley PD04 Tipster used for?

It is a mobile floor mount that lets one large format display be moved between rooms. It suits corporate presentation areas and conference spaces in Qatar where the screen is needed in more than one place. It holds displays from 32 to 75 inches weighing up to 50 kg, and because it rolls on four lockable wheels, the screen can be positioned for each session without a permanent wall fixing.

Which display sizes and weights does it support?

The recommended display size is 32 to 75 inches, and the maximum load capacity is 50 kg. Before ordering, check the weight of your exact display, including any mounting hardware it carries, against that 50 kg limit. The top of the recommended range is 75 inches, so a large panel should be checked against both the size and weight limits before you request a quotation.

What VESA patterns does the trolley accept?

The trolley accepts VESA patterns from 100 x 200 mm up to 400 x 400 mm. A VESA adapter is included in the box to help match your display. Check the rear of your display for its hole pattern and confirm it falls within this range before requesting a quote from SmartRooms Qatar.

Is the trolley compatible with the PN-LM431 and PN-LM551?

The manufacturer lists the PD04 Tipster as compatible with the PN-LM431 and PN-LM551 display models. If you run either model in a school, office or meeting room in Doha, you can plan the trolley for those panels directly. For any other display, check its weight, VESA pattern and size against the trolley specifications before ordering.

How many height settings does it have?

The trolley offers four fixed height settings rather than a continuous lift. Choose the setting that places the screen at a comfortable height for the audience, whether seated students in a classroom or standing presenters at a conference. Decide the height before the display is loaded so the setup stays consistent across sessions.

Can it be used in portrait orientation?

The manufacturer's feature notes describe the trolley as allowing both portrait and landscape use, but its specification sheet lists landscape orientation only. Because the two sources differ, confirm the orientation you need with the SmartRooms Qatar team before buying, especially for a digital signage screen in a corridor or reception area.

How does the cable management work?

The pipes have room for cables, which can exit just above the cast aluminium foot or under it, depending on which suits the installation. This keeps leads tidy around the base. Plan the cable route around where the display's power and data connections will sit, and check the display's own connection requirements before installation.

What comes in the box?

The package includes the trolley with four wheels, a VESA adapter, screws, spacers and a manual. The trolley weighs 18.0 kg, with a 20 kg shipping weight. Check the delivered contents against this list on arrival, and keep the manual with your asset records for the display.

What optional accessories are available?

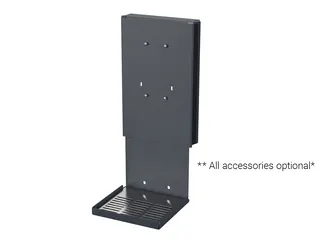

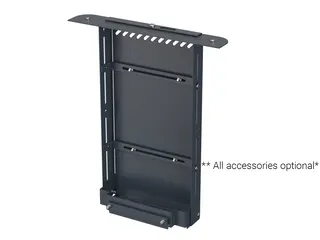

Four optional accessories in Dark Grey RAL7016 are listed: the PD04-CS Camera Shelf, PD04-DH Disinfection Holder, PD04-MB Media Box and PD04-MS Multi-use Shelf. Each has its own order code, so request them as separate line items on your quotation. A media box can help keep a presentation PC out of sight at a conference desk.

Will it fit through a doorway and into a lift?

The trolley measures 942 x 1,730 x 555 mm (W x H x D) and weighs 18.0 kg. Measure doorway, lift and corridor widths between the delivery point and the room, particularly in older buildings or compact office floors. A free site survey from SmartRooms Qatar can confirm the route before you place an order.

Can it be used near a window or in an unconditioned lobby in Doha?

The manufacturer data does not state an operating temperature range for the trolley. Summer temperatures in Doha regularly exceed 45°C, so for a window-facing or outdoor-adjacent area, confirm the environment with the SmartRooms Qatar team before ordering. For an air-conditioned meeting room or classroom, confirm the display's own environmental rating as part of the quotation.

Can a school or government office buy it through an LPO or tender?

Yes. SmartRooms Qatar supplies against purchase orders (LPOs) and government tenders, including Monaqasat, and accepts payment by bank transfer, cheque or purchase order. A school in Al Wakrah ordering trolleys for several classrooms can request one quotation covering the trolleys and any optional shelves. The team usually issues quotations within one working day.
