Sharp Wall Mount PDW S 32-65 P

Name: Sharp Wall Mount PDW S 32-65 P Portrait VESA Wall Mount
Brand: Sharp
SKU: sharp-wall-mount-pdw-s-32-65-p
Availability: InStock

Overview

The Sharp Wall Mount PDW S 32-65 P is a fixed bracket for one Sharp large format display in portrait orientation. It carries up to 50 kg, holds the panel flat with no tilt, and includes a lock plate to deter theft. It suits 32 to 65 inch screens in schools, clinics and offices across Qatar. Request a quote for your site.

What this Sharp wall mount does

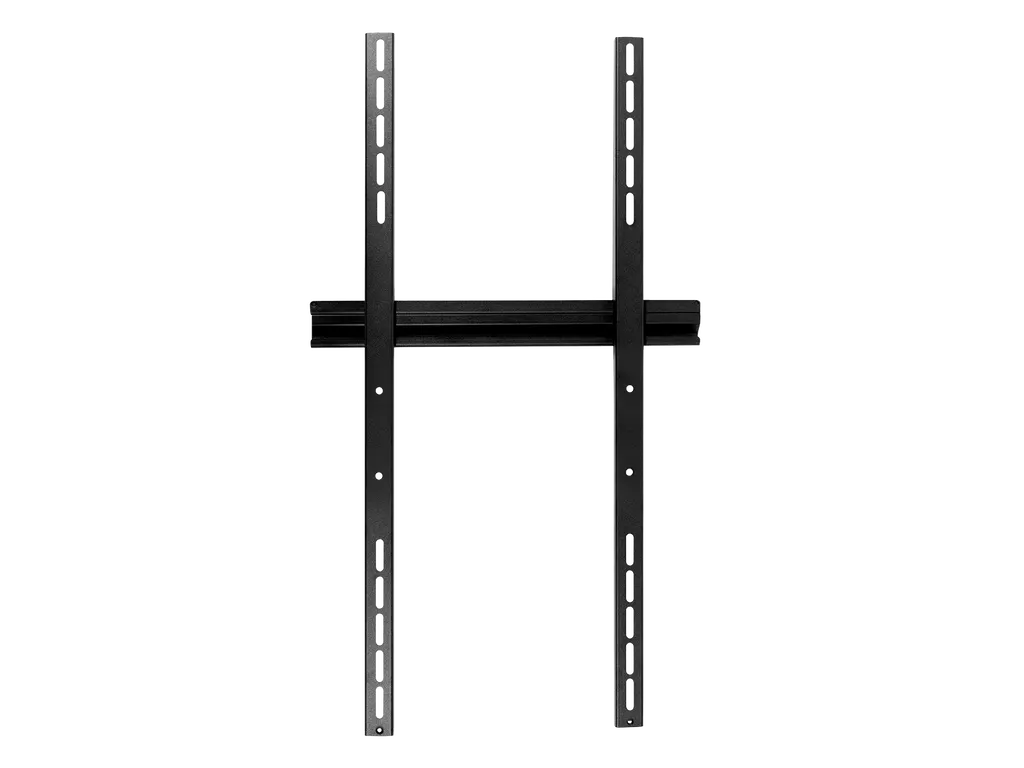

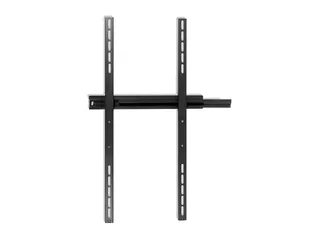

The Sharp Wall Mount PDW S 32-65 P is a fixed bracket for fitting one Sharp large format display to a wall in portrait orientation. It is listed for screens from 32 to 65 inches and carries a maximum load of 50 kg. The mount has a tilt function of 0 degrees, so the display stays flat against the wall. Its 3 kg mount weight and 35 mm minimum depth are the figures to plan around for a single panel.

Specifications to check before you order

Confirm these figures against your display and wall before ordering a bracket.

VESA patterns: 300 x 300 mm, 400 x 200 mm and 400 x 400 mm
Maximum load: 50 kg
Recommended display size: 32 to 65 inches
Orientation: Portrait, single display
Tilt function: 0 degrees (flat)
Mount weight: 3 kg
Minimum depth: 35 mm

The manufacturer lists the PN-LM431 and PN-LM551 as compatible with this mount. Compare the weight of your complete panel with the 50 kg limit, and check that its rear mounting holes match one of the three VESA patterns above.

What is in the box and how it is secured

Each kit includes one wall plate, one lock plate, two vertical plates with hooks, two distance washers, two 4.2 x 16 screws, eight M6 x 12 screws and eight 6 x 19 x 1 washers. The shipping package measures 870 x 63 x 43 mm. The lock plate takes a padlock, which helps protect the display from theft in lobbies, corridors and other public areas where equipment is left unattended. A padlock is not listed in the contents, so budget for one separately. The manufacturer's warranty for this mount is 3 years.

Where it fits in Qatar

A private school in Al Wakrah fitting out a corridor could mount portrait screens beside classroom doors to show timetables and notices, where a landscape screen would not suit the wall. A clinic on The Pearl could place a portrait display at reception to show patient directions and queue information. A serviced apartment building in Msheireb could use one in a lobby to display building information and visitor guidance.

Summer temperatures above 45 degrees Celsius and dust are normal conditions in Qatar. The source data does not give an operating temperature range for this mount, so confirm the wall position with the SmartRooms Qatar team before fitting it to an outdoor, sun-facing or open-entrance wall.

Planning the installation

Wall construction, the position of structural fixings and the panel's weight all shape the fixing plan. SmartRooms Qatar offers a free site survey before a heavy panel goes on the wall, and professional installation can be arranged. For a school or government office ordering several units, quotations are usually issued within one working day, and purchase orders (LPOs), tenders and payment by bank transfer, cheque or purchase order are all accepted. Delivery covers all 8 municipalities of Qatar.

To request a quote for the Sharp Wall Mount PDW S 32-65 P, send your display model number, its VESA pattern, the number of mounts needed and the wall location, and the SmartRooms Qatar team will confirm the correct bracket and fixings for your site.

Highlights

Portrait wall mount for Sharp displays from 32 to 65 inches
Maximum load capacity of 50 kg
Flat mounting with a 0 degree tilt function
VESA patterns 300 x 300, 400 x 200 and 400 x 400 mm
Lock plate that takes a padlock to deter theft
3-year manufacturer warranty with full fixing kit included

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

12 specifications · Source: manufacturer · checked Oct 2026

Mount4

Installation: Single
Orientation: Portrait
Max. Load Capacity [kg]: 50
Recommended Display Size [inch]: 32 to 65

Mechanical2

Enter english translation value: Flat
Tilt Function [°]: 0

Weight And Dimensions3

Weight [kg]: 3
Min. Depth [mm]: 35
Shipping Dimensions (W x H x D) [mm]: 870 x 63 x 43

Vesa1

VESA Pattern [mm]: 300 x 300; 400 x 200; 400 x 400

Additional Features2

Warranty: 3 years
Shipping Content: 1x Lock Plate; 1x Wall Plate; 2x Distance Washers; 2x Screws 4.2x16; 2x Vertical Plate incl. Hook; 8x Screws M6x12; 8x Washers 6x19x1

Downloads

3 files from the manufacturer

PDF Datasheets PDFDatasheetEnglish.pdf 110 KB PDF Manuals & guides UserManualPortrait.pdf 154 KB PDF Drawings & CAD DrawingPortrait.pdf 54 KB

Questions about Wall Mount PDW S 32-65 P

What is the Sharp Wall Mount PDW S 32-65 P used for?

It is a fixed wall bracket that holds one Sharp large format display in portrait orientation. The recommended display size is 32 to 65 inches and the maximum load is 50 kg. It suits schools, clinics and offices in Qatar that run vertical signage, timetables, wayfinding or information screens and need a flat, non-tilting mount.

Which screen sizes does it support?

The recommended display size is 32 to 65 inches. Before ordering, check that your Sharp panel falls within that range and that its VESA pattern matches one of the three patterns the mount supports: 300 x 300 mm, 400 x 200 mm or 400 x 400 mm. If you are unsure, include your display model number in your quote request.

Which VESA patterns does the mount support?

The mount supports 300 x 300 mm, 400 x 200 mm and 400 x 400 mm patterns. Measure the spacing between the rear mounting holes of your display before ordering, because the bracket only fits a panel whose holes match one of these patterns. Checking this first avoids delays when the mount arrives on site.

What is the maximum weight the mount can carry?

The maximum load capacity is 50 kg, and the mount itself weighs 3 kg. Check the weight of your complete display against the 50 kg limit before ordering. A heavier panel should be confirmed with the SmartRooms Qatar team during quotation, so the fixing plan matches the wall.

Can the display be tilted with this mount?

No. The tilt function is listed as 0 degrees, so the mount holds the display flat against the wall. If you need an angled view, for example a screen mounted below eye level at a reception desk, request a quote for a different bracket that offers tilt.

Is the mount compatible with the PN-LM431 and PN-LM551?

The manufacturer lists the PN-LM431 and PN-LM551 as compatible with this mount. When you request a quote, give the exact model code of your display, including any suffix, so the team can confirm the match before you order.

What hardware comes in the box?

Each kit includes one wall plate, one lock plate, two vertical plates with hooks, two distance washers, two 4.2 x 16 screws, eight M6 x 12 screws and eight 6 x 19 x 1 washers. The package measures 870 x 63 x 43 mm. The fixings are supplied, but the wall material should still be checked during a site survey.

How does the lock plate help protect the display?

The mount includes a lock plate that takes a padlock, and the manufacturer describes it as improving security against theft. In public areas such as lobbies, school corridors and reception halls, a padlock on the lock plate helps deter removal of the display. A padlock is not included in the shipping contents, so plan to supply one.

Can I use it in a school corridor in Al Wakrah?

Yes, for a portrait display on a corridor or classroom-door wall within the 32 to 65 inch range. A private school could use portrait screens to show timetables and notices beside doors. Schools ordering several units can send a purchase order (LPO), and SmartRooms Qatar delivers to all 8 municipalities of Qatar.

Can it go on an outdoor or sun-facing wall in Doha?

The source data does not give an operating temperature range or an outdoor rating for this mount, so it should not be assumed suitable for outdoor use. Summer temperatures above 45 degrees Celsius are common in Doha. Ask the SmartRooms Qatar team to confirm the environment for any sun-facing, outdoor or open-entrance wall before you request a quote.

Do I need a site survey before fitting a large panel?

A site survey is strongly advisable for a heavy panel. SmartRooms Qatar offers free site surveys, where the wall construction, the display position and the fixing method can be checked against the mount's 50 kg load and VESA pattern. This is useful before a 65-inch panel goes up in a boardroom or lecture hall.

How quickly can I get a quote for several units?

Quotations are usually issued within one working day. A school, ministry or company ordering several mounts can send a purchase order (LPO), and payment can be made by bank transfer, cheque or purchase order. Include the display model numbers, the number of mounts and the locations across Qatar when you request the quote.
