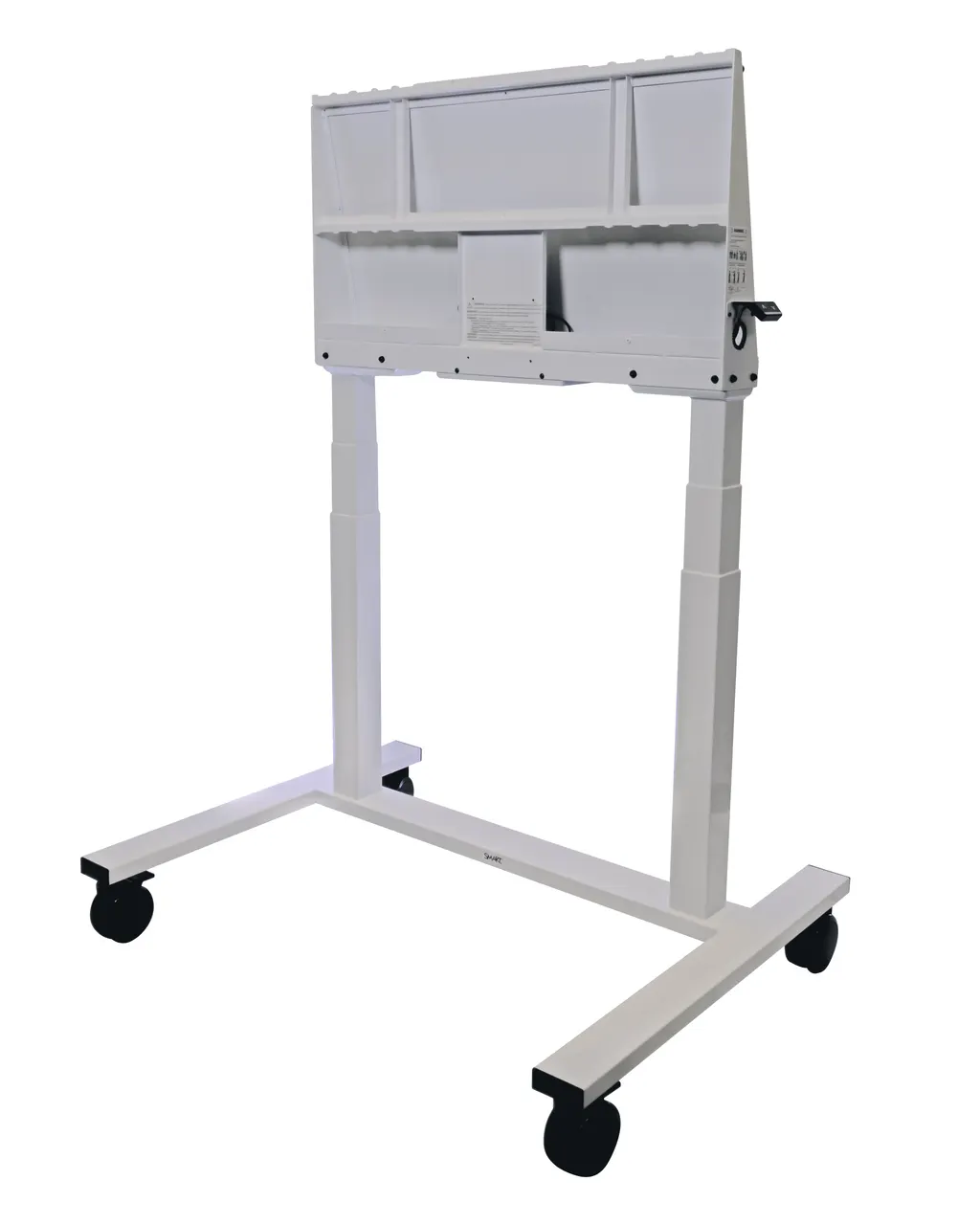

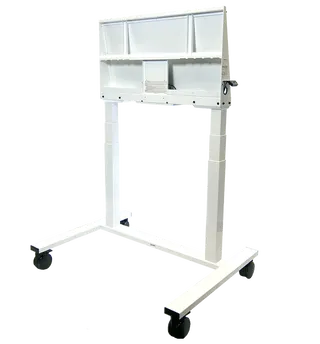

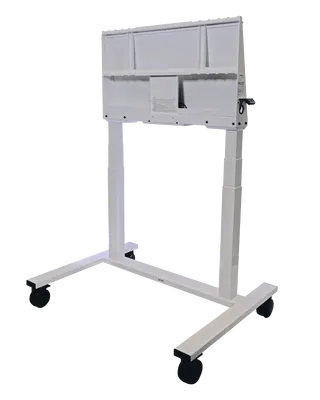

SMART SMART FSE-500 series electric height-adjustable mobile stand

Name: SMART FSE-500-W Electric Height-Adjustable Mobile Stand
Brand: SMART
SKU: smart-smart-fse-500-series-electric-height-adjustable-mobile-stand
Availability: InStock

Overview

The SMART FSE-500-W is a white, non-locking electric floor stand for SMART Board displays. Powered height adjustment raises and lowers the display across a 26-inch (65 cm) range, and the stand supports panels up to 86 inches diagonal and 220 lb (100 kg). Rolling on 4-inch dual locking casters, it suits classrooms and boardrooms across Qatar where a display must move between rooms.

What the FSE-500-W adds to a SMART Board

The SMART FSE-500-W is a white electric floor stand that turns a compatible SMART Board display into a mobile teaching or meeting station. Rather than fixing a panel to the wall, you roll the complete unit to where it is needed and raise or lower the display electrically. It is the non-locking white version in the FSE-500 series, built for displays that are too heavy or too large to move by hand.

Height, load and display limits to check first

Check these figures against your display before ordering. The stand offers 26 inches (65 cm) of powered height adjustment, with a minimum extended height of 56 inches (141 cm) and a maximum of 81 inches (206 cm) with the VESA bracket fitted. It supports displays up to 86 inches diagonal and 80 inches wide, with a maximum display weight of 220 lb (100 kg) and a total lift capacity of 254 lb (115 kg) including accessories.

Compatible with SMART Board RX, GX (V2 and V3), MX (V4 and V5), QX Pro and 6000S (V3) displays
Multiple VESA patterns from 400x400 to 800x600 mm, all M8 fixings
Bounce-back response when an obstruction is detected

Where it fits in Qatar

A private school in Al Wakrah fitting out new classrooms can use one stand per room and avoid drilling into walls for every display. The 4-inch (10 cm) industrial-grade dual locking casters hold the unit in position during lessons, and the locking rear cabinet keeps the transfer cable and power strip tidy when the stand is moved between rooms.

In a boardroom in West Bay or a ministry meeting room in Msheireb, the stand lets a team reposition the display for each presentation and lock the casters once it is in place. At a training centre or university in Education City, a flexible lab can change its layout from one week to the next without a fresh installation each time.

Planning the move, power and operating limits

The stand ships upright in a carton measuring 114 cm × 85 cm × 18 cm, and the stand itself weighs 39 kg. Plan the delivery route, building access and corridor widths before the unit arrives. The data lists supply voltages of 120 V AC at 60 Hz and 230 V AC at 50 Hz. Qatar mains is 240 V at 50 Hz, and the data does not state compatibility with that supply, so confirm the power arrangement with the SmartRooms Qatar team before ordering.

The duty cycle is 10%, meaning 2 minutes of fully loaded operation followed by 18 minutes of rest, so schedule height changes around those rest periods. Operating temperature is 0 to 40°C (32 to 104°F). Summer temperatures in Qatar often rise above 45°C, so keep the stand in air-conditioned rooms and confirm room conditions before installation.

Accessories and what is in the box

One transfer cable and one power strip are included
Laptop shelf FSE-500-LS-WH in white, weighing 2.5 kg, ordered separately
Camera bracket FSE-500-CM-BK in black
Storage cabinet measuring 75 cm × 50 cm × 18.1 cm

Request a quote for the stand, accessories and display together, and the SmartRooms Qatar team will confirm the right configuration for your site. A free site survey can confirm floor space and the route for moving the stand before delivery.

Highlights

26-inch (65 cm) powered height adjustment with bounce-back response
Supports displays up to 86 inches diagonal and 220 lb (100 kg)
Height range 56 to 81 inches (141 to 206 cm) with VESA bracket
4-inch (10 cm) industrial-grade dual locking casters for mobility
Compatible with SMART Board RX, GX, MX, QX Pro and 6000S (V3)
5-year SMART warranty; UL listed, non-locking white model

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

39 specifications · Source: manufacturer · checked Oct 2026

Overview1

_text: Designed for the current line of SMART Board interactive displays, the SMART electric height-adjustable floor stand features 26" ( 65 cm ) of powered height adjustment with a bounce-back feature if an obstruction is detected. With a sturdy steel frame, the stand supports displays up to 86" ( 218 cm ) diagonal and 254 lb. ( 115 kg ) total weight including accessories. You can easily roll the stand across smooth floors and secure it with the 4" ( 10 cm ) industrial-grade dual locking casters. The stand has a TUV-certified drive system and complies with Americans with Disabilities Act (ADA) stand

Hardware4

Supported SMART Board displays: SMART Board RX series; SMART Board GX (V2); SMART Board GX (V3); SMART Board MX (V4); SMART Board MX (V5); SMART Board QX Pro series; SMART Board 6000S (V3)
Maximum display size: Supports displays up to 86" ( 218 cm ) diagonal and 80" ( 203 cm ) wide
Maximum display weight: 220 lb. ( 100 kg )
Maximum lift capacity: 254 lb. ( 115 kg )

Height adjustment (with VESA bracket)3

Total range: 26" ( 65 cm )
Maximum extended height: 81" ( 206 cm )
Minimum extended height: 56" ( 141 cm )

Components6

Wheels: 4" ( 10 cm ) industrial-grade dual locking casters
Mounting: VESA mounting patterns 400x400 500x400 600x400 700x400 800x400 800x600 All M8. Unit: mm
400x400: 500x400
600x400: 700x400
800x400: 800x600
Software: SMART Electric Stand Android app available for download.

Power4

Supply voltage (North America): 120V AC, 60 Hz
Supply voltage (Europe): 230V AC, 50 Hz
Standby mode: < 0.7 W
Duty cycle: 10% (2 minutes of operation fully loaded, 18 minutes of rest)

Operating requirements3

Operating temperature: 32–104°F ( 0–40°C )
Storage temperature: -4–140°F ( -20–60°C )
Humidity: 90% non-condensing

Included cables and accessories2

Transfer cable: 1
Power strip: 1

Certification and compliance3

Regulatory certification: FCC, ISED, UL (US and Canada) Usage Area IA, CB, CE, LVD, EMCD, UKCA
Environmental compliance: RoHS, REACH, POP, Packaging, WEEE, TSCA, CONEG Packaging, California Prop 65
Other: ADA

Purchasing information4

Order number: FSE-500-W: SMART Electric Height-Adjustable Floor Stand, FSE-500-W, UL Listed, Non-Locking, White
Order number: FSE-500-LS-WH: Laptop Shelf, SMART Stand, FSE-500-LS-WH, White
Order number: FSE-500-CM-BK: Camera Bracket, SMART Stand, FSE-500-CM-B, Black
Optional accessories: See smarttech.com/accessories

Warranty1

SMART Warranty: 5 years

Installation, dimensions, and weights1

Notes: All dimensions ± 0.3 cm. All weights ± 0.9 kg. Product ships upright.

Installation, dimensions, and weights – FSE-500-W4

Stand Weight: 39 kg
Shipping carton dimensions: 114 cm × 85 cm × 18 cm
Shipping weight: 45 kg
Storage cabinet dimensions: 75 cm × 50 cm × 18.1 cm

Installation, dimensions, and weights – FSE-500-LS-WH3

Laptop Shelf Weight: 2.5 kg
Shipping carton dimensions: 40 cm × 34 cm × 7 cm
Shipping weight: 3 kg

Downloads

4 files from the manufacturer

PDF Datasheets SMART-Electric-Stand-500-product-sheet-en.pdf 594 KB PDF Datasheets SMART-Electric-Stand-500-product-sheet-engb.pdf 592 KB PDF Manuals & guides fse500floorstand_textless.pdf 6.2 MB PDF Certificates & compliance SMART_FSE_500_Important_Safety.pdf 178 KB

Questions about SMART FSE-500 series electric height-adjustable mobile stand

What is the SMART FSE-500-W and who is it for?

The SMART FSE-500-W is a white, non-locking electric floor stand for compatible SMART Board displays. It adds 26 inches (65 cm) of powered height adjustment and rolls on 4-inch dual locking casters, so one display can move between classrooms, meeting rooms or training suites. It suits schools, universities and offices in Qatar that need a large interactive panel at different heights, rather than a fixed wall installation.

Which SMART Boards does the FSE-500-W support?

The stand is listed for SMART Board RX series, GX (V2), GX (V3), MX (V4), MX (V5), QX Pro series and 6000S (V3) displays. Before ordering, confirm your exact panel model against that list and check that its diagonal is no more than 86 inches (218 cm) and its weight no more than 220 lb (100 kg). The listed compatibility covers SMART Board models only, so send your model number to the SmartRooms Qatar team for confirmation before you order.

How does the FSE-500-W differ from the FSE-510-W and FSE-520-B?

The FSE-500-W is the white, non-locking floor stand. The FSE-510-W is the white locking variant, and its controller locks height adjustment automatically so only people with proper training or supervision can change the height. The FSE-520-B is the black, non-locking version. All three share the same 26-inch range, 86-inch display capacity and 5-year warranty, so choose by colour and by whether height control needs to be restricted.

What height range and weight limits should I check?

Height adjustment spans 26 inches (65 cm), with a minimum extended height of 56 inches (141 cm) and a maximum of 81 inches (206 cm) with the VESA bracket. The display itself can weigh up to 220 lb (100 kg), and the total lift capacity is 254 lb (115 kg) including accessories. Measure the ceiling height and the eye level of your audience, and add the weight of any laptop shelf or camera bracket to the total before you confirm.

Will the FSE-500-W work on Qatar's 240 V power supply?

The source data lists 120 V AC at 60 Hz for North America and 230 V AC at 50 Hz for Europe. Qatar mains is 240 V at 50 Hz, and the data does not state that the stand is compatible with it. Ask the SmartRooms Qatar team to confirm the power arrangement for your site before ordering, and include the supplied power strip in that check so the electrical setup is settled before delivery.

Can the stand be used in a hot room or near windows in Qatar?

The operating temperature range is 0 to 40°C (32 to 104°F), with humidity up to 90% non-condensing. Summer temperatures in Qatar often rise above 45°C, so keep the stand in air-conditioned rooms, away from windows that receive direct sun and from open doorways to outdoor heat. Confirm your room conditions with the SmartRooms Qatar team before installation, particularly for lobbies and corridors that are not air-conditioned.

How could a school in Qatar use this stand in a classroom?

A private school in Al Wakrah fitting out new classrooms can use one stand per room and avoid drilling walls for every display. The dual locking casters hold the unit steady during lessons, and the locking rear cabinet keeps the transfer cable and power strip out of the way when the stand is moved to another classroom or a shared science space.

Is the FSE-500-W suitable for a boardroom with an 86-inch display?

Yes, provided the display falls within the stated limits of 86 inches diagonal, 80 inches wide and 220 lb (100 kg). In a boardroom in West Bay or a ministry meeting room in Msheireb, check the route from the loading area to the room, the door width and the floor surface, because the casters are intended for smooth floors. A free site survey from the SmartRooms Qatar team can confirm these points before delivery.

What comes with the stand and which accessories can I add?

The package includes one transfer cable and one power strip. Optional accessories include the FSE-500-LS-WH laptop shelf in white, weighing 2.5 kg, and the FSE-500-CM-BK camera bracket in black. The stand also has a storage cabinet measuring 75 cm × 50 cm × 18.1 cm for cables and accessories. Add any accessories to your quotation so the team can check the combined weight against the 254 lb (115 kg) lift capacity.

How often can the stand be raised and lowered?

The duty cycle is 10%, which means 2 minutes of fully loaded operation followed by 18 minutes of rest. Standby power is below 0.7 W. Plan height changes around those rest periods, especially where a display is raised and lowered several times in one session. A SMART Electric Stand app for Android is also available to download from the manufacturer.

What warranty applies, and how do schools or government bodies order?

The SMART warranty for this stand is 5 years. For a school ordering several units, or a government body buying through Monaqasat, SmartRooms Qatar supports purchase orders (LPOs) and tender paperwork, and accepts payment by bank transfer, cheque or purchase order. Send the display model, the quantity and the accessories you need, and a quotation is usually returned within one working day.
