ViewSonic VB-WMK-001 · Price in Qatar

Name: ViewSonic VB-WMK-001 Wall Mount for 55 to 84-inch Flat Panels
Brand: ViewSonic
SKU: viewsonic-vb-wmk-001
Availability: InStock

Overview

The ViewSonic VB-WMK-001 is a wall mount for flat panels from 55 to 84 inches. It carries up to 125 kg, has a 46 mm depth and includes a locking screw to secure the panel. Built from iron with a powder-coated finish, it suits boardrooms, lecture halls and classrooms across Qatar that need a fixed, tidy installation. Request a quote from SmartRooms Qatar.

A fixed wall mount for 55 to 84-inch panels

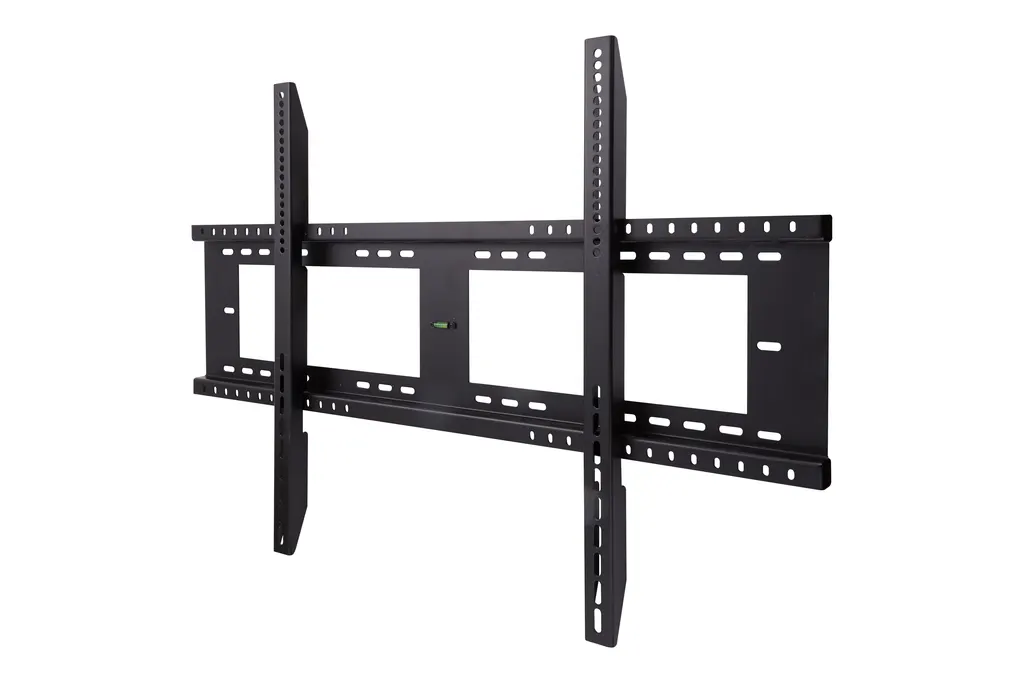

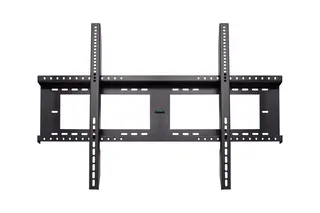

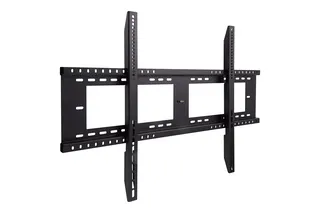

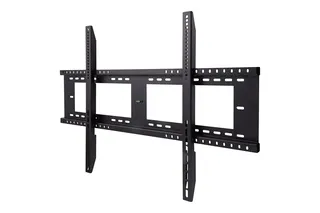

The ViewSonic VB-WMK-001 holds flat panel displays from 55 to 84 inches on a wall in a fixed position. Its rated load is 125 kg (275.6 lb) at most, so the panel and any attached parts must stay within that figure. The bracket is made from iron and finished with a powder-coated surface. SmartRooms Qatar supplies it for projects where a display stays in one place.

Specifications that shape the installation

Panel range: 55 to 84 inches
Load rating: 125 kg (275.6 lb) maximum
Mount pattern: up to 900 x 600 mm
Bracket size: 960 x 650 x 46 mm (37.8 x 25.6 x 1.8 in)
Weight: 5.2 kg (11.46 lb) net, 6.2 kg (13.67 lb) gross

The 46 mm depth matters most on a busy wall. It keeps the panel close to the surface and limits how far it projects into a corridor or classroom aisle. The locking screw adds a secure fixing point so the panel stays put once hung. The manufacturer describes the design as a patented universal design, which fits panels within the stated size range.

Where it fits across Qatar

In a university lecture hall at Education City, an 84-inch panel on a fixed wall frees floor space at the front of the room and keeps the display at one height for students at the back. In a West Bay boardroom, a fixed bracket removes the need for a trolley standing in the room during meetings. A school in Al Wakrah fitting out several classrooms with smaller panels from the 55-inch end of the range can use one mounting method across every room, which keeps maintenance simple.

Planning the wall and the panel

Before ordering, check three things: the panel's rear mounting pattern must not exceed 900 x 600 mm, the panel's weight must sit within 125 kg, and the wall must carry the combined load. The data does not list which wall materials the mount suits, so confirm the wall construction on site. SmartRooms Qatar offers free site surveys, which are useful before you mount a heavy 84-inch panel.

The package includes one plate, two trestles, 24 screws, 10 washers, 10 plastic bolts and an installation guide. These parts cover the bracket itself. The data does not list panel-specific hardware, so check what your panel requires. The data also gives no operating temperature range for this mount. For walls that face windows or sit in areas that can exceed 45°C in summer, confirm the environment with the SmartRooms Qatar team before fixing the bracket.

Ordering for your project

SmartRooms Qatar supplies the VB-WMK-001 and delivers to all eight municipalities of Qatar, with professional installation available. Schools and government bodies ordering several brackets can raise a purchase order (LPO) or work through a government tender, and quotations are usually issued within one working day. Lead times are estimates until confirmed in your quotation, based on stock.

To request a quote for the VB-WMK-001, send the panel model, its weight and the wall location. The SmartRooms Qatar team will confirm fit and availability before you commit.

Highlights

Designed for flat panel displays from 55 to 84 inches
Rated for up to 125 kg (275.6 lb)
46 mm depth keeps the panel close to the wall
Locking screw secures the panel once mounted
Iron construction with powder-coated finish
Mount pattern up to 900 x 600 mm

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

8 specifications · Source: manufacturer · checked Oct 2026

ERGONOMICS1

Wall mount: 900x600 max.

Material1

Value: Iron

Loading1

Value: 125 kg max. / 275.6 lb max.

DIMENSIONS (W x H x D)2

Physical (mm): 960x650x46 mm / 37.8x25.6x1.8 in
Packaging (mm): 1000x280 x55 mm / 39.37x11.02x2.17 in

WEIGHT2

Net (kg): 5.2kg / 11.46lb
Gross (kg): 6.2kg / 13.67lb

INCLUDED ACCESSORIES1

Value: Plate x 1, Installation Guide x 1, Trestle x 2, Screw x 24, Washer x 10, Plastic bolt x 10

Downloads

1 file from the manufacturer

PDF Datasheets VB-WMK-001_Datasheet.pdf 462 KB

Questions about VB-WMK-001

Which panel sizes does the VB-WMK-001 fit?

The VB-WMK-001 is designed to mount flat panel displays from 55 to 84 inches. Before ordering, check the panel's rear mounting pattern, which must fit the 900 x 600 mm maximum, and confirm the panel weight against the 125 kg (275.6 lb) rated load. An 84-inch panel for a boardroom and a 55-inch panel for a small meeting room both fall within this range.

How much weight can the bracket hold?

The maximum load is 125 kg (275.6 lb). The bracket itself weighs 5.2 kg net, so the panel and any extras should be weighed separately against the limit. For an 84-inch display in a West Bay boardroom, ask your panel supplier for the exact weight and send it with your quote request so the fit can be checked before installation.

Is this mount suitable for a lecture hall in Education City?

It can be, for an 84-inch panel on a fixed wall in a large teaching space. The mount's 46 mm depth keeps the display close to the wall, so the front of the hall stays clear for lecturers and students. Confirm the wall can carry the combined load, and book a free site survey to check the wall position and sight lines before fixing anything.

How deep does the mount sit off the wall?

The bracket measures 46 mm deep, with overall physical dimensions of 960 x 650 x 46 mm, and the source lists this as its thin profile. The depth matters in narrow corridors of government buildings or hospitals in Doha, where a deeper frame would stick into walkways. Measure the clearance available, including door swing and nearby fittings, and compare it with the 46 mm depth before ordering.

What comes in the box?

The package includes one plate, two trestles, 24 screws, 10 washers, 10 plastic bolts and an installation guide. These parts cover the bracket itself. The data does not list panel-specific hardware, so check your panel's own requirements before installation day. Keep the installation guide with the site file so your installer can follow the fixing sequence.

Do I need a site survey before mounting an 84-inch panel?

A site survey is worthwhile for a heavy panel. SmartRooms Qatar offers free site surveys, which let the installer check wall construction, fixing points, mounting height and the panel's position relative to doors and windows. For a ministry meeting room or hospital conference room in Msheireb, this avoids drilling into the wrong wall or planning a mount the structure cannot take.

Can the mount go on a window-facing wall or in a hot area?

The data gives no operating temperature range or environmental rating for the VB-WMK-001, so it should not be assumed suitable for hot or dusty locations. Summer temperatures in Qatar can exceed 45°C, and window-facing walls can get hotter. Confirm the exact location with the SmartRooms Qatar team before installation, and check the panel's own temperature rating as well.

What is the bracket made of and how is it finished?

The bracket is made from iron with a powder-coated finish, a durable paint layer applied to metal. This suits a classroom or meeting room wall where a durable, low-maintenance finish is preferred. The data does not state a colour, so ask the SmartRooms Qatar team about colour options if the bracket must match a wall or existing equipment.

Is a wall mount better than a mobile stand for a school classroom?

A wall mount keeps a panel at a fixed height and frees the floor. For a school in Al Wakrah fitting out classrooms, a fixed bracket reduces the risk of a stand being knocked over and keeps the room layout consistent. A mobile stand suits panels that move between rooms, whereas this fixed bracket holds one panel in one position.

Can a school or ministry order several brackets on an LPO?

Yes. SmartRooms Qatar accepts purchase orders (LPOs) and government tenders, including Monaqasat. Send the number of units, the panel sizes and the delivery location with your request. For a school fitting out several classrooms, quotations are usually issued within one working day, and the team will confirm the quantities and lead time against stock.

What are the shipping weights for delivery to the Industrial Area or Mesaieed?

Each bracket has a net weight of 5.2 kg (11.46 lb) and a gross weight of 6.2 kg (13.67 lb). The packaging measures 1000 x 280 x 55 mm. SmartRooms Qatar delivers to all eight municipalities, including the Industrial Area and Mesaieed, so you can estimate the load for several units when planning storage at the site.
