LG 10SM3TB (Discontinued) · Replacements in Qatar

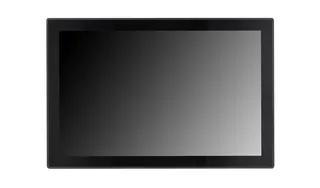

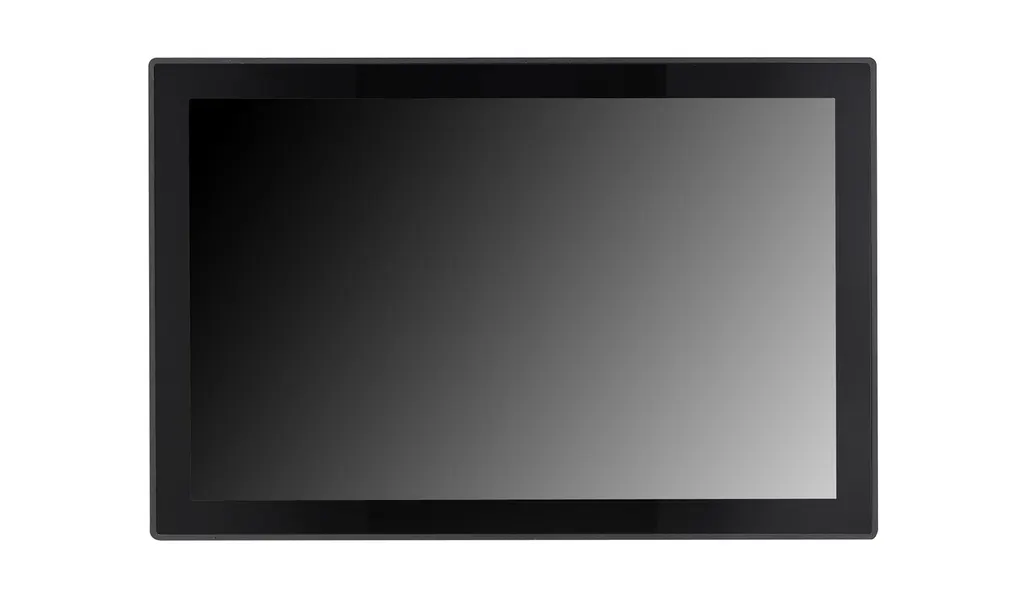

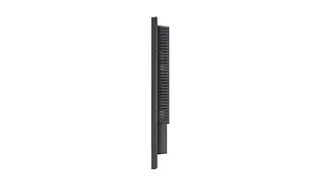

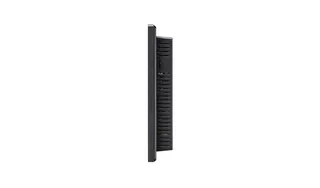

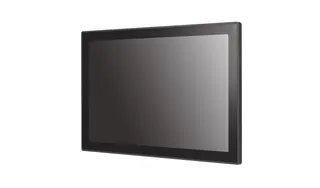

Name: LG 10SM3TB 10-inch WebOS Kiosk Touch Display
Brand: LG
SKU: lg-10sm3tb
Availability: Discontinued

Overview

The LG 10SM3TB is a discontinued 10-inch touch display from the Kiosk Touch SM3TB series, built for kiosks, counters and self-service stations. Its 1,280 x 800 panel sits behind a 14 mm bezel and can be powered over a single network cable using PoE. It suits Qatari shops, banks and clinics that already run this model or need a compact touch screen. Request a quote for a current equivalent.

What the 10SM3TB is built for

The LG 10SM3TB is a 10-inch touch display from the Kiosk Touch SM3TB series, designed for retail kiosks, service counters and self-service stations where a compact screen needs to sit close to the customer. It uses a 10.1-inch panel at 1,280 x 800 resolution, a 14 mm bezel and a body measuring 245.6 mm x 164.2 mm x 29.7 mm, with a head weight of 0.63 kg. The manufacturer has discontinued this model, so this page is for organisations that already run it, buyers comparing it with other kiosk displays, and anyone looking for a current replacement.

Connectivity: one cable for power and network

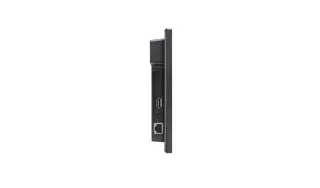

The main reason to specify this unit in a kiosk is Power-over-Ethernet. The single RJ45 port carries both network and power over one cable, so the kiosk position does not need a separate mains socket. That matters in lobbies, corridors and pillars where running power is costly or not permitted. The display also has one USB 2.0 port and a micro SD card slot. It has no HDMI, DisplayPort, DVI-D or analogue RGB video input, and no OPS slot or external media player connection, so confirm how your content will reach the screen before ordering.

Software features for self-service kiosks

Built-in touch for direct interaction at a counter or kiosk.
SoftAP: the display can act as a wireless access point for nearby mobile devices.
BEACON and Bluetooth Low Energy support for sending coupons and information to shoppers in real time.
SNMP support for managing the display across the network.
Android-based applications can be developed for the on-screen customer experience.

Where it fits in Qatar

A shopping centre in West Bay or Lusail could use a screen like this as a store directory or promotion point at the entrance, where a 10-inch display suits a narrow wall or shelf. A bank branch in Al Sadd might place one at a queue-management counter, and a clinic in Al Rayyan could use one at a self check-in station. Because the unit is intended for kiosk and counter use, confirm the environment with the SmartRooms Qatar team before installation, especially where summer heat above 45 degrees Celsius or dust storms reach the location. No operating temperature range for this model is confirmed in our data.

What to plan for before ordering

Check that your network switch can supply PoE to the RJ45 port.
Plan the bracket around the 50 mm x 50 mm VESA mount pattern.
Confirm your content source, because the unit has no video input.
Add optional SP-2000, ST-200T or LSW430 accessories to the quotation if needed.

The basic accessories listed with the unit are an adaptor, a web manual and ESG. Because this model is discontinued, the SmartRooms Qatar team can check availability and suggest a current equivalent or compatible replacement. Request a quote and we will usually reply within one working day. We supply to all 8 municipalities of Qatar, offer professional installation and free site surveys, and accept purchase orders (LPOs) and government tenders.

Highlights

10.1-inch panel at 1,280 x 800 HD resolution
Module brightness 450 cd/m², set brightness 400 cd/m² with touch
PoE support: power and network over one RJ45 cable
SoftAP, BEACON and Bluetooth Low Energy support
SNMP network management and Android application support
50 mm x 50 mm VESA mount interface

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

28 specifications · Source: manufacturer · checked Oct 2026

PANEL3

Screen Size: 10" (10.1")
Resolution: 1,280 x 800 (HD)
Brightness: Module : 450cd/m², SET : 400cd/m² [ W/Touch ]

CONNECTIVITY - INTPUT11

HDMI: No
DVI-D: No
DP: No
Analog (RGB): No
Audio In: No
External Control (RS232C IN): No
External Control (RJ45): Yes (1)
External Control (IR receiver): No
External Control (Pixel Sensor): No
USB (USB2.0): Yes (1)
SD Card (SDHC/Full Size): Yes (micro SD)

CONNECTIVITY - OUTPUT3

Audio Out: No
Externel Speaker Out: No
External Control (RS232C OUT): No

PHYSICAL SPECIFICATION4

Bezel Width: 14mm (T,R/L,B)
Monitor Dimension (W x H x D): 245.6mm X 164.2mm X 29.7mm
Weight (Head): 0.63kg
VESA™ Standard Mount Interface: 50mm x 50mm

MEDIA PLAYER COMPATIBILITY2

OPS Type Compatible: No
External Media Player Attatchable: No

SOFTWARE COMPATIBILITY2

SuperSign-w lite: No
SuperSign-c: No

ACCESSORY2

Basic: Adaptor, Manual (Web), ESG
Optional: SP-2000, ST-200T, LSW430

GENERAL1

Region: Global

Downloads

3 files from the manufacturer

PDF Manuals & guides English.pdf 5.9 MB PDF Manuals & guides MBM65302904_03_E_180514_GSCS.pdf 1.6 MB URL Software & firmware · Opens on manufacturer site Software & Drivers (support page)

Questions about 10SM3TB

Is the LG 10SM3TB still available from the manufacturer?

No. LG has discontinued the 10SM3TB, so it is not advisable to specify it for a new project. SmartRooms Qatar can quote for a current equivalent or a compatible replacement, and the quotation can set out differences in screen size, resolution and connectivity. Send us your kiosk layout and whether you need power over the network, and we will suggest options that fit the same counter or wall space.

What are the screen size, resolution and brightness of the 10SM3TB?

The panel is listed as 10 inches (10.1 inches) with 1,280 x 800 HD resolution. Brightness is 450 cd/m² for the module and 400 cd/m² for the set with touch. These figures suit close-range use at a counter, where a customer stands directly in front of the screen, rather than viewing from a distance across a large room.

Can the 10SM3TB be powered over a network cable?

Yes. The unit supports Power-over-Ethernet, so a single RJ45 cable carries both power and network connectivity. This helps where no socket is nearby, such as pillars in a mall concourse or a corridor in a hospital. Ask your IT team to confirm that the switch port can supply power to this unit before installation, and check the switch specification against your site plan.

Does the display have HDMI or DisplayPort inputs for a media player?

No. The data available for this model lists no HDMI, DisplayPort, DVI-D or analogue RGB input, and no OPS slot or external media player attachment. Only one RJ45 port and one USB 2.0 port are listed as inputs, along with a micro SD card slot. Before ordering, define how your content will reach the screen so the quotation matches your software plan.

What is SoftAP and when would a kiosk use it?

SoftAP software allows the display to operate as a wireless access point for nearby mobile devices. A service kiosk in a shopping centre in Lusail could use this so shoppers connect their phones to a local service while standing at the screen. Review your organisation's security policy before enabling any wireless access point, and agree on what the connected devices are allowed to access.

How do BEACON and Bluetooth Low Energy support help a store?

The 10SM3TB supports Beacon and Bluetooth Low Energy, which allows a store to send coupons and information to customers in real time at the point of interaction. This needs beacon hardware and content set up in advance. For example, a retailer in The Pearl could trigger a promotion when a shopper approaches the kiosk, provided the beacon setup and offers are planned before the display goes live.

Can several units be monitored across a network?

Yes, the unit supports SNMP for network management, which helps IT teams keep track of connected displays from a central system. For a bank branch or government office in Doha with several kiosks, this makes oversight simpler than checking each unit by hand. How it is configured depends on your network design, which the SmartRooms Qatar team can review during a free site survey.

Can an application be developed to run on the screen?

Yes. The display supports applications developed on the Android operating system for on-screen customer interaction. A clinic in Al Rayyan might use this for a self check-in or wayfinding app. Your developer should confirm the platform requirements and the content management method before the display is ordered, so the hardware matches the software you plan to run.

What mounting details should I plan for?

The VESA mount interface is 50 mm x 50 mm. The monitor measures 245.6 mm x 164.2 mm x 29.7 mm and the head weighs 0.63 kg, which suits counter stands and slim wall brackets. Check that any bracket you buy matches the 50 x 50 mm pattern. A free site survey from SmartRooms Qatar can confirm the best height and position for the kiosk in your shop or lobby.

Is the display suitable for outdoor placement in Qatar's summer heat?

Our data for this model does not list an operating temperature range or an outdoor rating, so we cannot confirm outdoor or high-heat use. Summer temperatures in Qatar regularly exceed 45 degrees Celsius, and kiosks near entrances, windows or open courtyards face harder conditions, including dust storms. Ask SmartRooms Qatar to confirm the environment and any enclosure requirements before a quotation is issued.

What comes with the unit?

The basic accessories listed are an adaptor, a web manual and ESG. Optional accessories SP-2000, ST-200T and LSW430 are also available, and they can be included in the same quotation. Tell us which optional items you need when you request a quote, so the proposal lists everything required for your installation and nothing is missed at delivery.

Can government buyers and schools order through purchase orders?

Yes. SmartRooms Qatar accepts purchase orders (LPOs) and government tenders, including Monaqasat, with payment by bank transfer, cheque or purchase order. A public organisation that needs several units can request one quotation covering all of them, delivered to any of Qatar's 8 municipalities. As the model is discontinued, the quotation will be for a current equivalent, so state the number of units when you request it.
