PDSIM21CAN0P

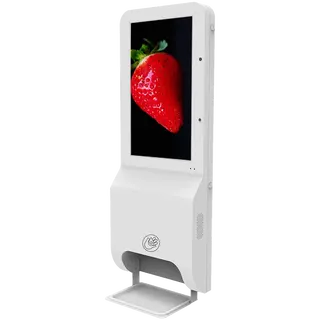

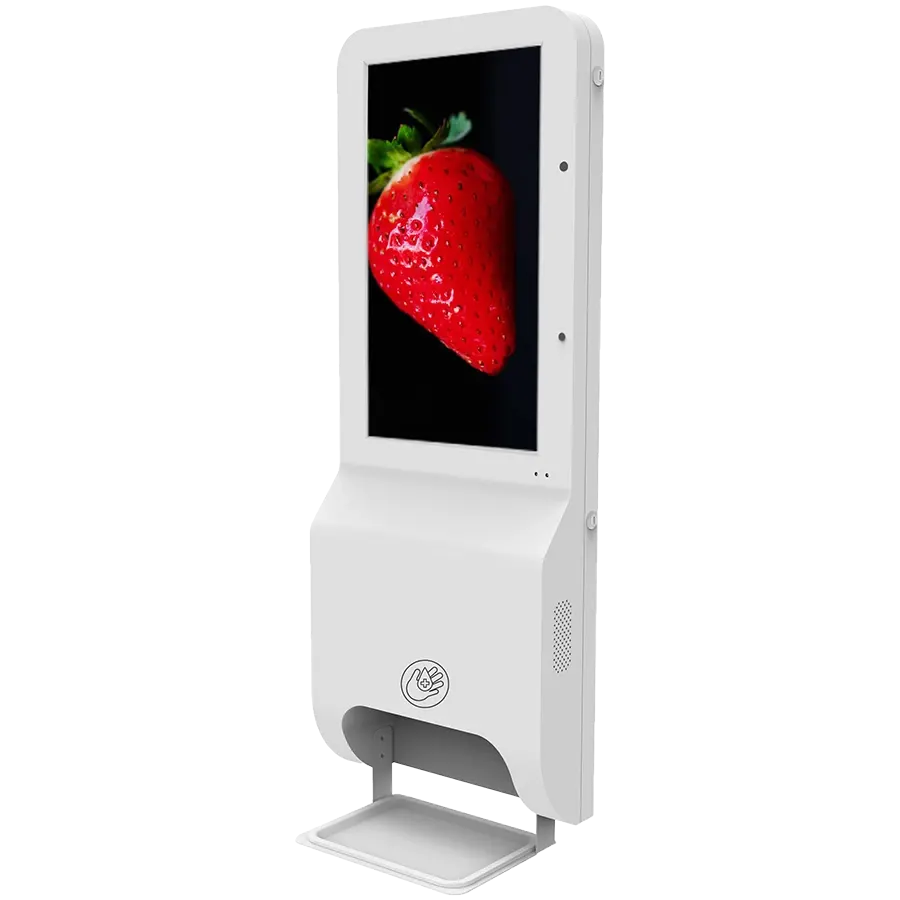

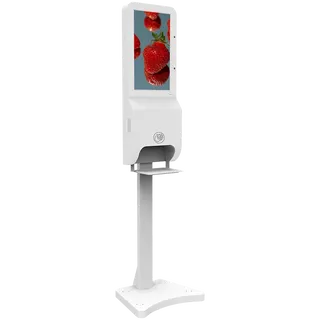

Prestigio PDSIM21CAN0P 21.5-inch Indoor Digital Signage Totem
- Screen size
- 21.5"
- Resolution
- 1080x1920
- System
- Android 7.1
The Prestigio PDSIM21CAN0P is a discontinued 21.5-inch indoor digital signage totem with a Full HD IPS panel, 178-degree viewing angles and an Android 7.1 player built in. It suits reception areas, wayfinding points and lobbies needing a freestanding screen. The manufacturer has discontinued this model. Owners and buyers comparing options can request a quote for a current equivalent or compatible replacement from SmartRooms Qatar.
What the PDSIM21CAN0P is
The Prestigio PDSIM21CAN0P is an indoor digital signage totem built around a 21.5-inch LCD with a Full HD maximum resolution of 1080x1920 in a tall format. The panel uses an IPS matrix, which gives 178-degree horizontal and vertical viewing angles, so people approaching from the side can still read the content. The display sits behind 3 mm tempered glass and is rated at 200 nits. The manufacturer has discontinued this model, so this page is written for organisations that already run one, buyers comparing it with newer totems, and anyone searching for a replacement.
Specifications that matter for planning
Inside the enclosure sits a quad-core ARM Cortex-A17 RK3288 processor with 4 GB of RAM and 16 GB of eMMC storage, running Android 7.1. A 2 MP camera is built in, and audio comes from stereo speakers rated at 2x5 W. Connectivity covers Wi-Fi to 802.11b, 802.11g and 802.11n standards, one RJ-45 LAN port and two USB 2.0 Type-A ports. The unit accepts AC 100-240 V at 50/60 Hz, draws 50 W in operation and 3 W in standby, and includes a stand.
- Dimensions: 1900 mm high, 524 mm wide and 413 mm deep
- Weight: 27 kg
- Finish: white
- Warranty: 12 months from the manufacturer, unless local law requires otherwise
Where it fits in Qatar
With a 21.5-inch screen on a stand about 1.9 metres tall, this totem suits places where people stop to read rather than view from across a hall. A clinic reception in Al Sadd or a serviced apartment lobby in West Bay could use it for visitor check-in notices and building directories. Universities in Education City or training centres in Doha can place one at a corridor junction to show room schedules and campus wayfinding. A mall operator in Lusail might run promotional loops near a store entrance, provided the position is an air-conditioned indoor area.
Things to check before you buy
Because the model is discontinued, the practical route for most projects is a quotation for a current equivalent or compatible replacement, scoped against your location. The manufacturer's data gives no operating temperature range, so confirm the planned position with the SmartRooms Qatar team, especially for entrances, glazed frontages or spots close to outdoor air. The panel is not multi-touch, so it works as a signage or directory display rather than an interactive kiosk. A site survey before installation will confirm floor space, the position of the power outlet and the cable route to the network.
Request a quote
SmartRooms Qatar supplies the equipment, delivers to all eight municipalities of Qatar and arranges professional installation. Quotations are usually issued within one working day, and we accept purchase orders and government tenders. Send us your site details and intended use, and we will reply with a quote for a current equivalent or compatible replacement that matches your planned position.
Highlights
- Discontinued by the manufacturer; quote for a current replacement
- 21.5-inch Full HD (1080x1920) IPS LCD with 200 nits brightness
- 178-degree horizontal and vertical viewing angles
- Quad-core ARM Cortex-A17 processor, 4 GB RAM, 16 GB eMMC storage
- Android 7.1, Wi-Fi 802.11b/g/n and one RJ-45 LAN port
- Built-in 2 MP camera, stereo speakers (2x5 W) and included stand
Estimated timeline
Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.
Specifications
Software1
- Operating System
- Android 7.1
System3
- Digital Signage Type
- Indoor
- Digital Signage Device Type
- Totem
- Built-in Devices
- Camera 2 M-pixel
Processor3
- CPU
- ARM Cortex-A17 RK3288
- CPU Core Quantity
- 4
- Installed L2 Cache Memory Storage Capacity
- 8 MB
Memory1
- RAM Capacity
- 4 GB
Display12
- Display Form Factor
- Built-in
- Display Type
- LCD
- Display Diagonal
- 21.5"
- Maximum Resolution
- 1080x1920
- Pitch Type
- Dot Pitch
- Pitch Width
- 0.2479 mm
- Image Max. V-View Angle
- 178 °
- Image Max. H-View Angle
- 178 °
- Display Features
- Full HD 3mm Tempered Glass 200 nits Brightness
- Multi-touch
- No
- Display Technology
- TFT Active Matrix
- Type of Matrix
- IPS
Video Output2
- Video Controller Form Factor
- Integrated
- Video Chipset
- ARM Mali-T764
Speaker2
- Audio Output Mode
- Stereo
- Output Power
- 2x5 W
Networking Specifications1
- Wi-Fi
- IEEE 802.11b IEEE 802.11g IEEE 802.11n Wi-Fi 4
Power6
- Power Device Type
- Power Supply
- Power Device Location
- Internal
- Input Voltage
- AC 100-240 V
- Input Frequency
- 50/60 Hz
- Power Consumption Operational
- 50 W
- Power Consumption Stand By/Sleep
- 3 W
Dimensions & Weight Device4
- Height (mm)
- 1900 mm
- Depth (mm)
- 413 mm
- Width (mm)
- 524 mm
- Nominal Weight
- 27 kg
Warranty2
- Warranty Term (month)
- 12 month(s)
- Warranty Term Notes
- Unless otherwise required by local law (see prestigio-solutions.com/warranty)
Interface Provided2
- USB 2.0
- 2 (4-pin USB (type A))
- LAN
- 1 (RJ-45)
Miscellaneous2
- Included Accessories
- Stand
- External Color
- White
Storage1
- EMMC
- 16 GB
Audio Output1
- Audio Controller Form Factor
- integrated
