Barco ClickShare CX-50 2nd generation

Name: Barco ClickShare CX-50 2nd Generation Wireless Conferencing System
Brand: Barco
SKU: barco-clickshare-cx-50-gen2
Availability: InStock

Overview

The Barco ClickShare CX-50 2nd generation is a wireless conferencing system for boardrooms and high-impact meeting rooms. It shows the participants and the shared material next to each other across two displays. A wired roomdock adds 4K sharing, and two ClickShare Buttons let staff and guests join from laptops. Suited to executive offices in West Bay or Lusail, it is cloud-managed and ANSSI CSPN certified. Request a quote today.

Two displays, one meeting: how the CX-50 presents

The Barco ClickShare CX-50 2nd generation is designed for boardrooms and high-impact meeting spaces where the people in the room and the material on the table both need to be seen. Its dual-screen output puts remote participants on one display and shared content on the other, so attendees keep eye contact with the room while a slide deck or spreadsheet stays readable. Up to two sources can appear on screen at the same time.

When someone walks in, the system links to room equipment such as cameras, microphones, speakers, sound bars and displays, which cuts down the manual setup before a call. Presenters start a session from a laptop and the unit works with the video conferencing platform in use. The system requirements are written for Microsoft Teams and Zoom.

Wireless sharing and the wired roomdock

Each unit includes two ClickShare Buttons, and the ClickShare App runs on desktop, Android and iOS. Wireless transmission uses IEEE 802.11 a/g/n/ac and IEEE 802.15.1 across 2.4 GHz and 5 GHz, with DFS channels supported in select countries. The stated reach is up to 30 m between a Button and the base unit. AirPlay, Google Cast and Miracast are also supported natively.

For cable-based sources, the wired roomdock accepts 4K at 30 Hz through its front USB-C input, while the HDMI 2.1 and USB-C outputs carry 4K at 60 Hz. Two rear USB-A 3.0 ports, a 2.5 Gbps Ethernet port and a 3.5 mm analogue line out complete the connections.

Where the CX-50 fits in Qatar

Executive boardroom in West Bay or Lusail: a weekly leadership review with colleagues in Doha and abroad, with participants on one screen and the financial model on the other.
Ministry or authority meeting room in Doha: a wireless setup that sits within the organisation's network security policy, with 802.1X authentication where the IT team requires it.
Training centre in Education City: visiting lecturers share from their own laptops during hybrid sessions, while a wired 4K source feeds the room display.

Security, network and operating conditions

ClickShare is cloud-managed and carries ANSSI CSPN security certification, a point that matters to IT teams reviewing every device on their network. In network integration mode the Button authenticates with WPA2-PSK or IEEE 802.1X; standalone mode uses WPA2-PSK. Wired authentication options include EAP-TLS, EAP-TTLS and PEAP. The unit is rated FCC and CE.

Qatar's summer heat is a planning factor. The rated operating range is 0°C to +40°C, with a maximum of 35°C at 3,000 m and 0 to 85% relative humidity, non-condensing. Noise is rated at a maximum of 25 dBA at 0 to 30°C. Install it in an air-conditioned meeting room rather than a lobby or a sunlit space.

What to plan before ordering

Displays: dual-screen output needs two displays in the room. Confirm positions during the site survey.
Power: the source lists a standard 110/220 V AC plug and 50 W maximum consumption. SmartRooms Qatar will confirm the power arrangement against Qatar's 240 V, 50 Hz supply before installation.
Network: plan a 2.5 Gbps Ethernet drop near the unit and check Wi-Fi coverage in the room.
Footprint: the unit measures 39 x 200 x 202 mm and weighs 900 g. A Kensington lock point is available.

SmartRooms Qatar offers free site surveys, professional installation and delivery to all eight municipalities of Qatar. The manufacturer's standard warranty is 1 year, extending to 5 years when the unit is registered through SmartCare. Request a quote for the Barco ClickShare CX-50 2nd generation and we will return a quotation, usually within one working day.

Highlights

Two displays show participants and shared content together
Up to two sources on screen simultaneously
Wired roomdock accepts 4K content sharing

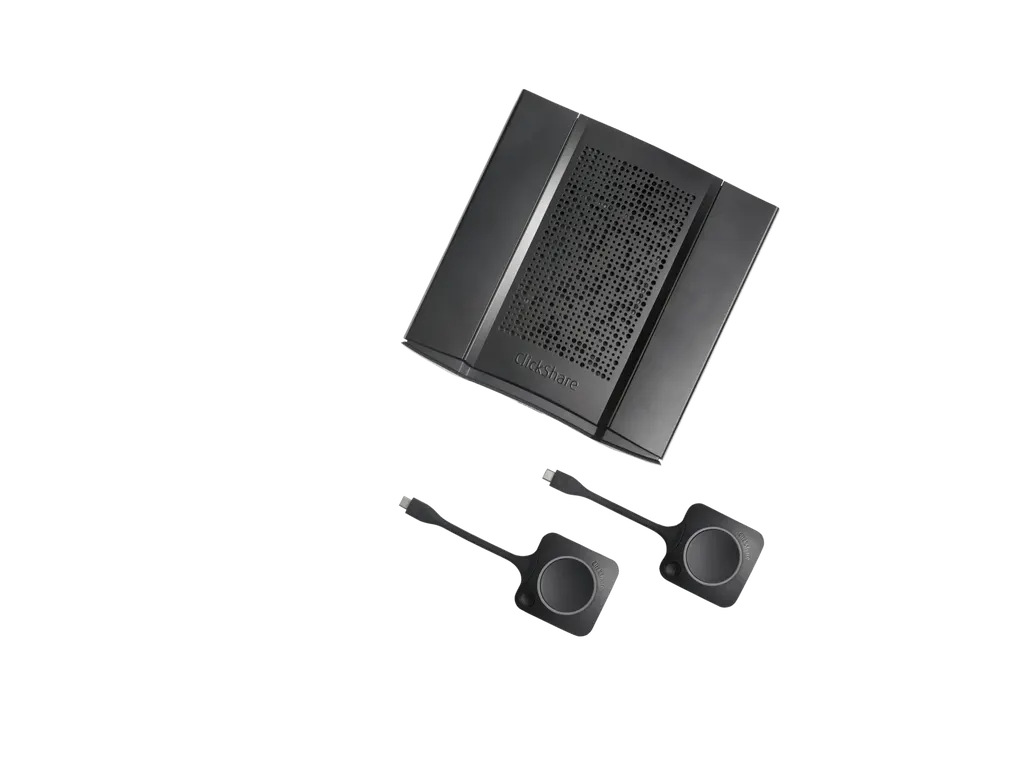

Two ClickShare Buttons included with each unit
Cloud-managed with ANSSI CSPN security certification
1-year standard warranty, 5 years after SmartCare registration

Room fit

Tell us the room size and platform (Teams, Zoom or BYOD) and we confirm the right combination with your quotation.

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

31 specifications · Source: manufacturer · checked Oct 2026

General Specifications31

Operating system: Windows 10 or higher macOS 11 (BigSur) and higher Android v11 and higher (ClickShare App) iOS 14 and higher (ClickShare App)
System requirements: For a smooth experience with Microsoft Teams or Zoom Minimum: Windows processor Intel Core i3 or AMD Ryzen 5/macOS: Intel Core i3 or Apple Silicon M1; RAM 8GB; OS version: Windows 10 20H2/macOS 11 Big Sur Recommended: Windows processor Intel Core i5/Ultra 5 or AMD Ryzen 7/macOS: Apple Silicon M3; RAM 8GB; OS version: Windows 11 latest build/macOS latest build
Video outputs: HDMI: 3840*2160 @ 60Hz, HDMI 2.1 Source USB-C: 3840*2160 @ 60Hz, DisplayPort Alternate mode Source with DisplayPort v1.2
Video inputs: USB-C: 3840*2160 @ 30Hz, DisplayPort Alternate mode Sink with DisplayPort v1.2
Audio output: USB, jack, HDMI
ClickShare Buttons: 2
ClickShare App: Desktop & Mobile
Native protocols: Airplay, Google Cast, Miracast
Maximum sources simultaneously on screen: 2
Noise Level: Max. 25dBA @ 0-30°C Max. 30dBA @ 30-40°C
Wired authentication: 802.1x, EAP-TLS, EAP-TTLS, PEAP.
SoftAP client mode: 802.1X EAP-TLS, EAP-TTLS, PEAP, and WPA2 PSK.
Authentication protocol: WPA2-PSK in stand alone mode WPA2-PSK or IEEE 802.1X using the ClickShare Button in network integration mode
Wireless transmission protocol: IEEE 802.11 a/g/n/ac and IEEE 802.15.1
Reach: Max. 30m (100 ft) between ClickShare Button and ClickShare Base Unit Frequency band 2.4 GHZ and 5 GHz (DFS)
Frequency band: 2.4 GHZ and 5 GHz (DFS channels supported in select number of countries)

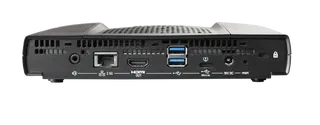

Connections: 1x Ethernet LAN 2.5Gbps 1x USB-C (USB3.0/DP Alt. Output/PD Sink, back) 2x USB-A 3.0 (back) 1x USB-C (USB3.0/DP Alt. Input, front) Audio analog line out on mini jack socket (3.5mm)
Temperature range: Operating: 0°C to +40°C (+32°F to +104°F) Max: 35°C (95°F) at 3000m Storage: -20°C to +60°C (-4°F to +140°F)
Humidity: Storage: 0 to 90% relative humidity, non-condensing Operation: 0 to 85% relative humidity, non-condensing
Anti-theft system: Kensington lock
Certifications: FCC/CE
Touch screen support & Interactivity: Yes
Wireless conferencing: via App or Button
Local view: High quality
Network connection: LAN & WiFi (dual)
Management and reporting: Yes
Warranty: 1 year standard. 5 years coverage upon registering via SmartCare
Dimensions (HxWxD): 39mm x 200mm x 202mm
Power consumption: Operational: 50W (max) Standby:
Power supply: Standard 110/220 V AC plug
Weight: 900 gr

Downloads

3 files from the manufacturer

PDF Datasheets ClickShare-CX-50-2nd-generation-en-Spec-sheet.pdf 146 KB URL Manuals & guides · Opens on manufacturer site Manuals, drivers and support URL Other documents · Opens on manufacturer site ClickShare warranty & support

Questions about ClickShare CX-50 2nd generation

What is the Barco ClickShare CX-50 2nd generation used for?

It is a wireless conferencing system for boardrooms and high-impact meeting rooms. It connects to room devices such as cameras, microphones and displays, and lets staff and guests share from laptops through a ClickShare Button or the ClickShare App. It suits organisations in Qatar that run hybrid meetings with colleagues in Doha and overseas, and it is cloud-managed.

How many displays does the CX-50 drive, and what does that change?

It drives two displays, so participants can appear on one screen while shared content runs on the other. Up to two sources can be on screen at the same time. Plan for two screens in the room before ordering, and use the free site survey from SmartRooms Qatar to confirm display positions and sightlines from the main seats.

Can a visiting speaker at a Doha hotel conference room share from a personal laptop?

Yes, visitors can share through a ClickShare Button, and each unit includes two Buttons. Staff can use the ClickShare App on desktop, Android or iOS. Wireless sharing has a stated reach of up to 30 m between a Button and the base unit, so the Button should be used within that range of the base unit in the room.

Which laptop operating systems and video platforms does it support?

The requirements list Windows 10 or higher and macOS 11 Big Sur or higher for laptops, with Android 11 and iOS 14 for the ClickShare App. Microsoft Teams and Zoom are named, with Windows 11 and Apple Silicon M3 recommended for a smooth experience. Check the minimum and recommended lines against your fleet before rollout, especially older Intel machines.

What resolution does the wired roomdock handle?

The front USB-C input accepts 4K at 30 Hz, which suits a wired 4K source such as a laptop or media PC. The HDMI 2.1 and USB-C outputs carry 4K at 60 Hz to the room display. Two rear USB-A 3.0 ports and a 2.5 Gbps Ethernet connection support other peripherals and network needs.

Is the CX-50 a good fit for a boardroom in West Bay or Lusail?

It suits an executive boardroom where a leadership team meets colleagues in Doha and abroad. Participants can sit on one screen while the financial model or contract runs on the other. Before ordering, request a free site survey to check room size, display positions and cable routes, so the installation matches the room.

Can a Doha ministry or authority use it with strict network security?

The unit is cloud-managed and carries ANSSI CSPN security certification. In network integration mode the ClickShare Button can authenticate with WPA2-PSK or IEEE 802.1X, and wired authentication options include EAP-TLS, EAP-TTLS and PEAP. Share the organisation's security policy with SmartRooms Qatar, and purchase orders or government tenders can be processed.

How does a training centre in Education City use it for hybrid sessions?

A lecturer or visiting expert can share from a personal laptop through the ClickShare App while the room display shows remote participants on the other screen. A wired 4K source can connect through the roomdock. Plan for two displays and a stable LAN or Wi-Fi connection, and agree the sharing process with the IT team before the first session.

Can it go in an entrance lobby or a room without air conditioning?

Not as a default. The operating range is 0°C to +40°C, with a maximum of 35°C at 3,000 m, and humidity from 0 to 85% non-condensing. Qatar summer temperatures outdoors often pass 45°C, so install it in an air-conditioned meeting room away from direct sun and dust-heavy entrances.

What power does it need, and will it run on Qatar's supply?

The source lists a standard 110/220 V AC plug and a maximum operating consumption of 50 W. Qatar's mains supply is 240 V, 50 Hz with BS 1363 sockets. SmartRooms Qatar will confirm the power arrangement for your site before installation, so the unit is not connected to a supply it is not rated for.

How large is the unit and how should I plan its position?

The unit measures 39 mm high, 200 mm wide and 202 mm deep, and weighs 900 g. A Kensington lock point supports physical security. Plan its position near the displays and the table, with cable runs for displays, audio output and the Ethernet drop mapped during the site survey.

What warranty applies, and how do I order for a government tender?

The manufacturer's standard warranty is 1 year. Registering the unit through SmartCare extends coverage to 5 years. Request a quote with the product model and quantity, and SmartRooms Qatar can supply against a purchase order (LPO) or a government tender, with delivery to all eight municipalities of Qatar.
