Barco ClickShare X-Display Plus 86

Name: Barco ClickShare X-Display Plus 86-inch All-in-One Meeting Room Display
Brand: Barco
SKU: barco-clickshare-x-display-plus-86
Availability: InStock

Overview

The Barco ClickShare X-Display Plus 86-inch is an all-in-one meeting room display with an 86-inch 4K UHD LCD, a 50-megapixel camera with a 99 degree field of view, a 16-microphone array with 12-metre pickup and a 2.1 speaker system. It includes a built-in ClickShare CX-M module for wireless sharing. It suits boardrooms and hybrid meeting rooms in Doha, West Bay and Lusail where some attendees join remotely.

One unit for display, camera, microphones and sharing

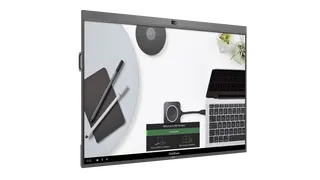

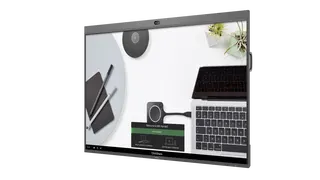

The Barco ClickShare X-Display Plus 86-inch puts a large 4K LCD panel, a camera, a microphone array, a speaker system and wireless sharing into one unit. Instead of mounting a display and then adding a separate webcam, ceiling microphones, a soundbar and a sharing box, a room gets all of these from a single installation. It is built for hybrid meetings, where some people sit in the room and others join from another site.

Picture, camera and sound specifications that matter

The 86-inch panel offers 3840 x 2160 resolution, 400 cd/m2 typical brightness, a 1,200:1 contrast ratio and an anti-glare finish, which helps in rooms with daylight through windows. The camera is a 50-megapixel unit with a Sony sensor, a 99 degree field of view and 5x digital zoom, and it outputs 4K, 1080p or 720p at 30 fps.

Audio comes from 16 beamforming MEMS microphones that pick up sound up to 12 metres away across a 180 degree angle. Echo cancellation, noise suppression covering more than 300 types of noise, automatic gain control and dereverberation work together to keep voices clear. The 2.1 speaker system has five units and covers 60 Hz to 20 kHz.

Camera framing: group framing, speaker framing and intelligent tracking with a panoramic view, with composition mode for up to 8 people.
Sound settings: AI soundscreen settings at 30, 60, 90 and 180 degrees, plus adaptive speaker tuning for the room's acoustics.

Wireless sharing and dual working modes

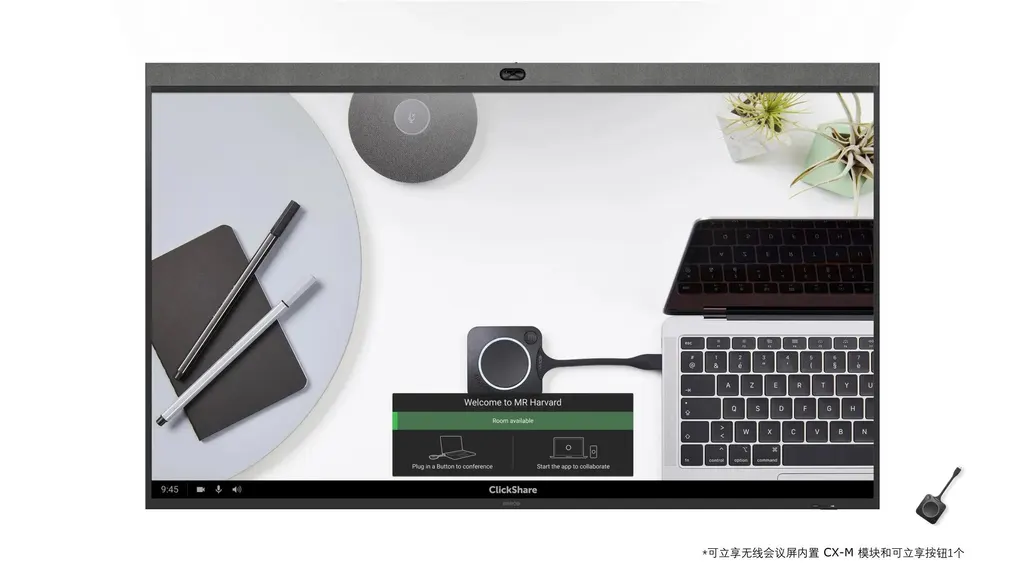

The built-in ClickShare CX-M module handles wireless sharing through the ClickShare app on desktop and mobile, and natively supports AirPlay, Google Cast and Miracast. Two sources can appear on screen at the same time. Wireless transmission uses IEEE 802.11 a/g/n/ac and IEEE 802.15.1 on the 2.4 GHz and 5 GHz bands, with a button reach of up to 30 metres. The unit switches between meeting room (MTR) mode and bring-your-own-meeting (BYOM) mode, so a visiting presenter can use their own laptop.

Where it fits in Qatar

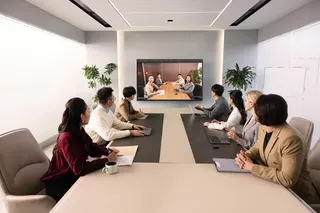

A boardroom in West Bay where executives join partner offices in Europe or Asia, with the 12-metre pickup covering a standard conference table.
A government authority meeting room in Msheireb where staff in Doha and colleagues in other departments review the same document together.
A private school in Al Wakrah equipping a room for governors and staff meetings that include remote members.

What to plan before you order

At 1932 x 82.5 x 1175 mm, with a net weight of 47 kg and a gross weight of 62.3 kg, the wall must be able to carry the load. A wall bracket is included, and a floor stand is available as an option. SmartRooms Qatar offers a free site survey to check wall strength, mounting height and cable routes before installation. The room must stay within the 0 to 40 degrees C operating range, so air conditioning is essential during Qatar's summers. Power draw is under 320 W in operation and under 0.5 W on standby, and the input accepts 100 to 240 V at 50/60 Hz. The supplied power cord is 3 metres long, so confirm the plug type for BS 1363 sockets with our team. The manufacturer's warranty is 1 year standard, extended to 5 years on registration via SmartCare.

Send us your room dimensions, seating layout and cable route, and the SmartRooms Qatar team will return a quotation, usually within one working day. Request a quote today and we will confirm the mounting, power and connection details for your space.

Highlights

86-inch 4K UHD LCD with 400 cd/m2 typical brightness
50-megapixel 4K camera with 99 degree field of view
16 beamforming microphones with up to 12-metre pickup
2.1 stereo speakers with five units and 2x15W+20W output
Built-in ClickShare CX-M module supporting two sources on screen
Operating range 0 to 40 C; input 100 to 240 V, 50/60 Hz

Room fit

Tell us the room size and platform (Teams, Zoom or BYOD) and we confirm the right combination with your quotation.

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

99 specifications · Source: manufacturer · checked Oct 2026

Display10

Size: 86-inch
Type: LCD
Resolution: 4K UHD (3840*2160)
Contrast ratio: 1200 1
Brightness: 400 cd/m2 typical
Color gamut: 94% P3 typical
Color accuracy: E
Backlight type: D-LED
Panel: • Anti-glare • Anti-ambient light interference, Clearer display
Refresh Rate: 60Hz

Camera9

Pixels: 50 MP
Sensor source: SONY
Resolution: 4K, 1080p, 720p at 30fps
FOV: 99°
Pixel size: 1.0 um
ZOOM: 5x digital zoom
WDR: Yes
Distortion correction: Yes
Lens cap: Manual slide cover

AI function6

Group Framing: Yes
Composition mode: Yes up to 8 people
Speaker framing: Yes
Intelligent tracking: Yes Speaker framing with panoramic view
AI soundscreen: Yes 30º/60º/90º/180º -4 level available
Speaker AI adaptive: Yes According to the different acoustic environment of the meeting space, the sound effect of the Speaker is automatically adjusted to fit the current meeting space

Microphone8

Quantity: 16 beamforming MEMS microphones
Hardware accelerated audio processing: Yes
Pickup distance: up to 12 meters
Sound pickup angle: 180°
Echo cancellation: Yes
Noise suppression: Yes More than 300 types of noise can be suppressed
Automatic gain control: Yes
Dereverberation: Yes

Speaker5

Channel: 2.1 Channel stereo
Quantity: 5 Speaker units (separate bass speakers)
Frequency Domain: 60 Hz to 20KHz
Output Power: 2x15W+20W
Position: Top

General specifications2

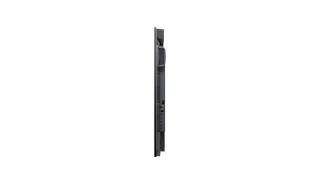

Dimensions (W*D*H): 1932*82.5*1175mm
Weight: 62.3 kg gross weight 47 kg net weight

Expansion capability3

Support extend Microphone (Cascade mode): Yes up to 4 ClickShare Wireless Speakerphone
Third-party USB peripherals: Yes
OPS: CX-M included

Connections9

HDMI IN: 2 HDMI 2.0
HDMI OUT: 1 1080p / 2160p
USB-C (front): 1 front
USB-C (board): 1 board
USB-B (2.0): 1
USB-A (3.0): 2
USB-A (2.0): 1 only for X-Display upgrading
RJ45 (MIC IN): 1 connect to ClickShare Wireless Speakerphone
Audio Out: 1 SPDIF

022

RS232: 1 DB9, 1
RJ45 (1Gbps): 2 Ethernet

Accessories6

Cable: Power cord x 1
Remote control: 1
Wall-mounted bracket: Yes
Floor stand: Optional
Storage Box: Yes
Type-C Cable: Yes

Power4

Power Supply: AC100 to 240V, 50/60Hz
Power Cord: China, length 3Meters
Max Operating Power Consumption: < 320W
Max Standby Power Consumption: < 0.5W

Environment5

Operation Temperature: 0°C~40°C
Operation Humidity: 10% ~ 90% RH
Storage Humidity: 10% ~ 90% RH
Storage Temperature: -20°C~60°C
Altitude: 5000metres

Compliance3

EMC/Saftey: CCC/CE
Energy: China Energy Label 2
RoHS: China RoHS

CX-M Specifications27

Video Outputs: 4K UHD (3840*2160) @ 30Hz. HDMI 1.4b(OPS 80pins connector) or USB-C DisplayPort 1.2
Audio output: USB
USB: 1 X USB-C
ClickShare Buttons: 1
ClickShare App: Desktop & Mobile
Native protocols: Airplay, Google Cast, Miracast
Maximum sources simultaneously on screen: 2
Noise Level: Max. 25dBA @ 0-30°C Max. 30dBA @ 30-50°C
Authentication protocol: WPA2-PSK in stand alone mode WPA2-PSK or IEEE 802.1X using the ClickShare Button in network integration mode
Wireless transmission protocol: IEEE 802.11 a/g/n/ac and IEEE 802.15.1
Reach: Max. 30m (100 ft) between ClickShare Button and ClickShare Base Unit
Frequency band: 2.4 GHZ and 5 GHz
Connections: 1x Ethernet LAN 1Gbit 1x USB-C 3.0 (front)br> 1x OPS-80 pin
Temperature range: Operating: 0°C to +40°C (+32°F to +104°F) Max: 40°C (104°F) at 5000m Storage: -20°C to +60°C (-4°F to +140°F)
Humidity: Storage: 0 to 90% relative humidity, non-condensing Operation: 0 to 85% relative humidity, non-condensing
Anti-theft system: NA
Certifications: SRRC/CE
Touch screen support & Interactivity: Yes
Local view: Yes
Wireless conferencing: via App or Button
Network connection: LAN & WiFi
Management and reporting: Yes
Warranty: 1 year standard. 5 years coverage upon registering via SmartCare
Dimensions (H×W×D): 202mm x 119mm x 30mm
Power consumptions: Operational: 5-10W, 16W Max
Power Supply: 18V DC from OPS display
Weight: 698g

Downloads

2 files from the manufacturer

PDF Datasheets ClickShare-X-Display-Plus-86-en-Spec-sheet.pdf 286 KB URL Manuals & guides · Opens on manufacturer site Manuals, drivers and support

Questions about ClickShare X-Display Plus 86

What is the ClickShare X-Display Plus 86-inch built for?

It is an all-in-one meeting room display that combines an 86-inch 4K UHD LCD, a 50-megapixel camera, a 16-microphone array, a 2.1 speaker system and a built-in ClickShare CX-M wireless sharing module. It suits boardrooms and hybrid meeting rooms where some attendees sit in the room while others join remotely from another site.

How large a room suits this 86-inch model?

The microphones pick up voices up to 12 metres away across a 180 degree angle, so the model suits rooms where every seat falls inside that range, such as a boardroom or a medium meeting room. Camera composition mode frames up to 8 people, so plan the seating layout around that limit before ordering.

Can visitors share from their own laptops?

Yes. The unit switches between meeting room (MTR) mode and bring-your-own-meeting (BYOM) mode, so visiting presenters can connect their own laptops. Wireless sharing works through the ClickShare app on desktop and mobile, and natively supports AirPlay, Google Cast and Miracast. Two sources can be shown on screen at once.

How does the camera follow speakers?

The 50-megapixel camera has a 99 degree field of view and 5x digital zoom. It offers group framing, speaker framing and intelligent tracking with a panoramic view. Video outputs at 4K, 1080p or 720p at 30 fps, and a manual slide cover lets staff block the lens when the room is not in use.

How does the audio handle echo and background noise?

Echo cancellation, automatic gain control and dereverberation work alongside noise suppression that covers more than 300 types of noise. AI soundscreen settings at 30, 60, 90 and 180 degrees narrow the pickup area, and adaptive speaker tuning adjusts output to the acoustics of the meeting space.

Can it be installed in a West Bay boardroom during Qatar's summer heat?

The rated operating range is 0 to 40 degrees C, with a maximum of 40 degrees C at 5000 m altitude. Qatar's summer temperatures can exceed 45 degrees C, so the room must be air-conditioned to keep the unit within range. Confirm the room climate with the SmartRooms Qatar team during the site survey before ordering.

Will it run on Qatar's 240 V, 50 Hz supply?

The power input is rated AC 100 to 240 V at 50/60 Hz, which covers Qatar's 240 V, 50 Hz mains. Maximum operating consumption is under 320 W and standby is under 0.5 W. The supplied power cord is 3 metres long, so confirm the plug type for BS 1363 (Type G) sockets with the SmartRooms Qatar team before ordering.

How heavy is it and what does wall mounting involve?

Net weight is 47 kg and gross weight is 62.3 kg, with dimensions of 1932 x 82.5 x 1175 mm. A wall bracket is included and a floor stand is optional. SmartRooms Qatar offers a free site survey to check wall strength, height and cable routes before installation, so request the survey when you ask for your quote.

Which ports are available for wired connections?

The unit provides two HDMI 2.0 inputs, one HDMI output at 1080p or 2160p, front and board USB-C ports, two USB-A 3.0 ports, one USB-B 2.0 port and two 1 Gbps Ethernet ports. It also has an RS232 DB9 port, an SPDIF audio output and an RJ45 connection for a ClickShare Wireless Speakerphone.

Can the microphone coverage be extended?

Yes. The microphone input supports cascading up to four ClickShare Wireless Speakerphones, and the unit can be expanded with third-party USB peripherals. The CX-M module is included as an OPS module with an 80-pin connector, so the sharing function is part of the purchase rather than an add-on.

Is it covered by warranty, and how can a government body buy it?

The manufacturer's warranty is 1 year standard, extending to 5 years on registration via SmartCare. Government bodies can order through a purchase order (LPO) or a government tender, including Monaqasat. SmartRooms Qatar accepts payment by bank transfer, cheque or purchase order, and quotations usually come within one working day.
