XDS-1071

What the XDS-1071 is and who it suits

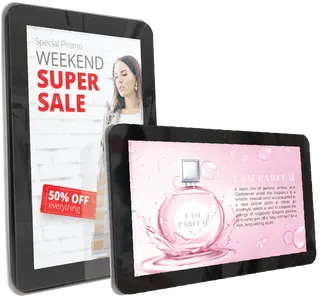

The IAdea XDS-1071 is a 10.1-inch all-in-one signage display with a non-touch LCD panel and a 1280 x 800 resolution. Its all-in-one design means no separate media box is needed, which keeps a counter, shelf edge or entrance tidy. The manufacturer has discontinued this model. This page is written for organisations that already run one, buyers comparing it with newer signage, and anyone who needs a current replacement.

Brightness, resolution and playback

The wide-aspect panel is rated at 300 nits maximum brightness, which suits counters and queue lines where ambient light is moderate rather than direct sunlight. The view angle is rated at 170 x 170. The specification lists support for a range of POPAI content standards, from 480p and 720p JPEG and PNG images up to 1080p H.264 video at 20 Mbps CBR, so check your existing files against that list before ordering. StrongCache keeps playback running when the network is unavailable.

Management, connectivity and mounting

The unit comes with SignApps Express for content management, and a third-party solution can be used under an optional licence. Remote commissioning and AppLock help IT teams set up units from one place and guard against unauthorised access. Connections include:

• Wi-Fi 802.11 b/g/n and Ethernet 10/100 BASE-T
• Optional 3G or 4G mobile module through USB
• HDMI output to an external display and 3.5 mm stereo audio out
• Two USB 2.0 ports and a Micro USB port for ADB

Mounting flexibility is the main reason to choose this model for tight spaces. It has built-in VESA 100 x 100 mm posts and supports flush mounting, and optional accessories add a glass mount (PGM-001), a VESA tilt mount (PTM-101), a pivot table stand (PVK-102) and a window mount (PWM-040). The display weighs 692 g and measures 269.88 x 170.77 x 28.5 mm. A table stand, power plug, vandal-proof I/O bracket and quick guide are supplied.

Heat, power and the Qatar site check

The operating range is 0 to 40 °C, with humidity from 10 to 85% non-condensing at 40 °C. Qatar summers can exceed 45 °C, so this unit belongs in an air-conditioned indoor space, away from direct sun through glass, even with the window mount. The power supply accepts 100 to 240 V at 50 to 60 Hz, which covers Qatar mains, and outputs 12 V at 1.5 A. The supplied plug is the US type, so confirm the correct connector for BS 1363 sockets before ordering.

Where it fits in Qatar

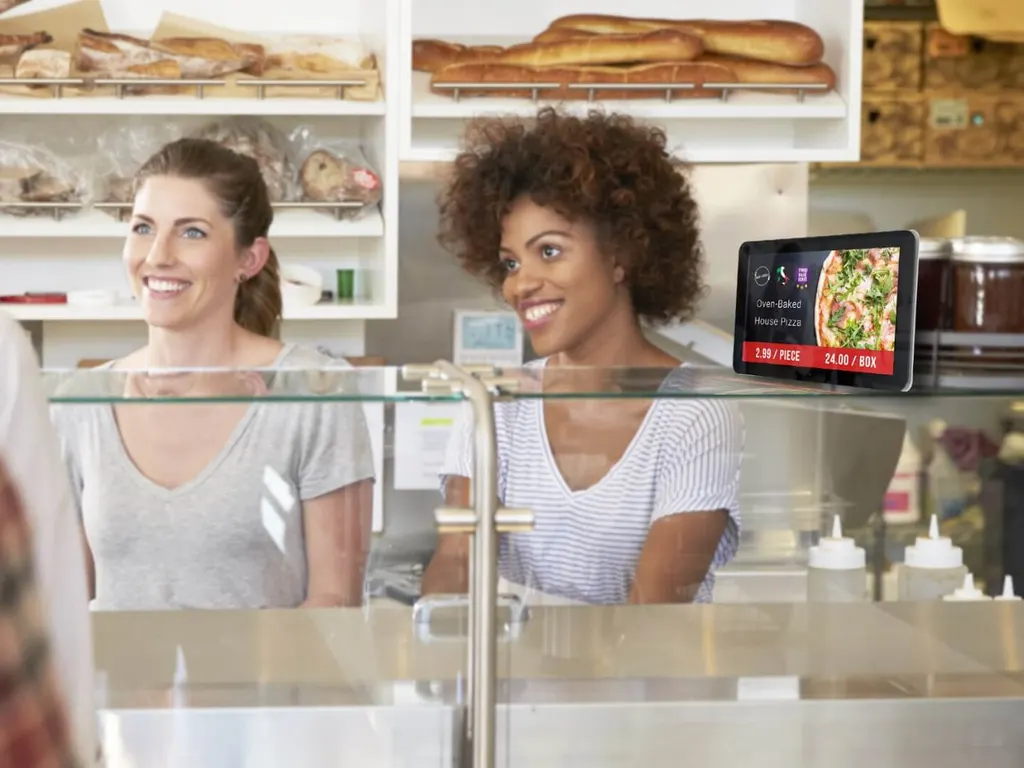

• Retail shop in Msheireb: a counter-side loop promotes weekly offers, updated from the office through SignApps Express.
• Clinic waiting area in Al Rayyan: a wall-mounted screen shows health information and opening hours at seated eye level.
• Serviced apartment reception in The Pearl: a table-mounted or flush-mounted display shows local guide information in an air-conditioned lobby.

What to plan before you order

Mark the wall or counter, the power point and the network port before the unit arrives. Check Wi-Fi or Ethernet coverage at the install point, and remember that 4G needs a compatible USB module. SmartRooms Qatar offers free site surveys, supply and delivery to all eight municipalities of Qatar, professional installation, and purchase orders for government tenders. Quotations are usually issued within one working day.

To replace an XDS-1071 or add a unit to an existing setup, request a quote from SmartRooms Qatar and our team will recommend a current equivalent or compatible replacement for your space.
