Newline TT-8622S (Discontinued) · Replacements in Qatar

Name: Newline TT-8622S 86-inch Interactive Display (Discontinued)
Brand: Newline
SKU: newline-s-series-tt-8622s
Availability: Discontinued

Overview

The Newline TT-8622S is an 86-inch 4K LED interactive display with 20-point infrared touch, a 65W USB-C power delivery port and an integrated Wi-Fi 6 module. The manufacturer has discontinued this model, so SmartRooms Qatar can quote a current equivalent for your project. It suits large lecture halls, university rooms and boardrooms across Qatar. Request a quote.

What the Newline TT-8622S is

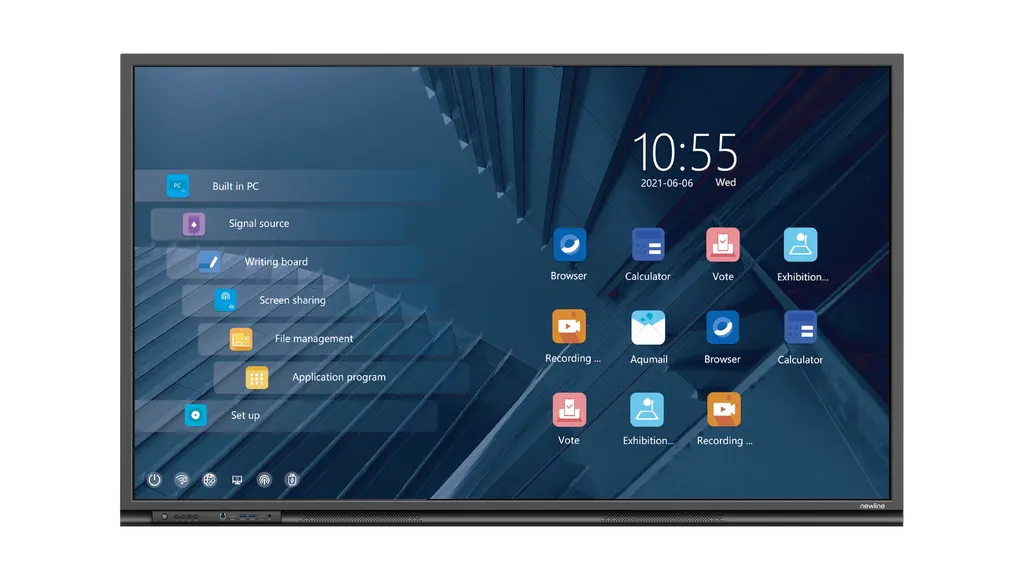

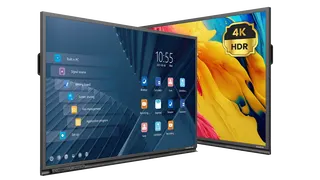

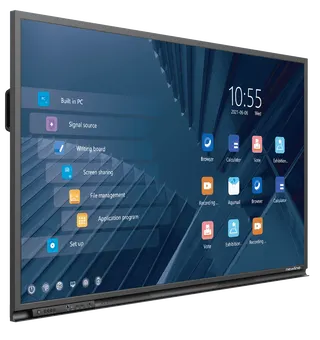

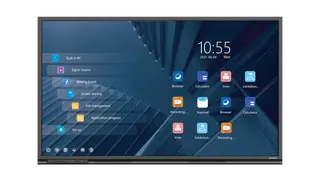

The Newline TT-8622S is an 86-inch interactive display from the manufacturer's S Series, built for classrooms and team rooms. It pairs a 4K LED panel with infrared touch that tracks up to 20 points at once, so several people can write, annotate or move objects on the same screen. This model has been discontinued by Newline. The facts below describe the unit as specified, and SmartRooms Qatar can quote a current equivalent for any project that needs a replacement.

Specifications that matter for planning

The 3840 × 2160 resolution gives a 16:9 picture across a display area of 1895 × 1066 mm. The panel is rated at 400 cd/m² brightness with a 4000:1 dynamic contrast ratio and an 8ms response time, and its 178° viewing angle keeps the image readable for people seated at the sides. The touch surface is anti-glare and anti-fingerprint with an 8H hardness rating, and the unit carries a 50,000-hour life time rating.

Outline dimensions: 1981 × 1187 × 112 mm
Net weight: 64.5 kg, gross weight 80.5 kg
Power input: 100–240 V AC, standby consumption below 0.5 W
Operating range: 0–40°C at 20–80% relative humidity, non-condensing

Connectivity and built-in computing

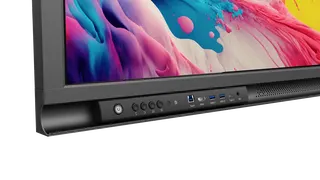

Inputs include three HDMI 2.0 ports, one DisplayPort 1.2 and a VGA port, and an HDMI 2.0 output passes the signal on to a second screen. A USB Type-C port delivers 65W Power Delivery and carries touch, audio and video over a single cable, which suits a laptop that needs charging during a session. The panel also has an integrated Wi-Fi 6 module, a dual Android 11 and Windows system design, and an OPS-PC slot for an external computer module. Two 20W speakers are built in.

Where it fits across Qatar

An 86-inch panel suits rooms where the audience sits far from the screen. A university lecture hall in Education City can show slides and annotations to students at the back. A boardroom in West Bay can display a shared document while a call connects to colleagues abroad, with the laptop charging through the Type-C port. A ministry training room in Lusail, or a hotel conference room near Hamad International Airport, can use the same panel for presentations that switch between Arabic and English material.

What to plan before ordering

At 64.5 kg net, the TT-8622S needs a wall structure or mobile stand rated for its weight, and a clear route for the crew that carries it in. Wall mounting and mobile stand are listed as optional accessories, so confirm which one you need when you request a quote. SmartRooms Qatar offers free site surveys, and we recommend one before fixing a panel this size to a wall, to check the wall, cable routes and power supply. Plan for the 0–40°C operating range too, since a room that heats up in summer may need its cooling reviewed first. To start, request a quote with your room dimensions, mounting plan and quantity, and SmartRooms Qatar will return a quotation, usually within one working day, for this model or a current equivalent.

Highlights

4K (3840 × 2160) LED panel in a 16:9 format
Display area of 1895 × 1066 mm
20-point infrared touch with a passive pen
65W Power Delivery over a single USB Type-C port
Integrated Wi-Fi 6 with dual Android 11 and Windows system
Built-in OPS-PC slot and 178° viewing angle

Classroom fit

At 86″ the farthest student should sit within about 6.4 m (6× the screen height).

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

7 specifications · Source: manufacturer · checked Oct 2026

TT-8622S7

General · Screen Size: 86″
General · Display area (mm): 1895 × 1066
General · Weight (kg): 64.5
General · Touch Sensor: Infrared(IR)
General · Resolution: 3840 × 2160 (4K)
General · Viewing Angle: 178°
General · Display technology: LED

Downloads

0 files from the manufacturer

No downloadable files are listed for this model yet. Ask us and we will send the datasheet.

Questions about TT-8622S

Which rooms in Qatar suit an 86-inch TT-8622S?

It suits large rooms where many people need to read one screen, such as university lecture halls, seminar rooms and large training rooms. In a lecture hall in Education City, the 1895 × 1066 mm display area keeps slides and annotations readable from the back row, and the 178° viewing angle helps students seated at the sides. A smaller meeting room may be better served by a smaller panel, which SmartRooms Qatar can quote on request.

Is the Newline TT-8622S still sold by the manufacturer?

No. Newline has discontinued the TT-8622S, so this page is for organisations that already run one, buyers comparing it with newer models, and anyone looking for a replacement. SmartRooms Qatar can quote a current equivalent or a compatible replacement, and we will check mounting, cabling and power against your existing room before you order.

How does the touch function work and what writing tool is used?

The panel uses infrared touch with 20 touch points, so several people can write or move objects at the same time. It is used with a passive pen, and the display includes palm rejection that distinguishes a pen or fingertip from a palm or wrist. The anti-glare, anti-fingerprint surface has 8H hardness, which helps in brightly lit rooms where glare can interfere with writing.

How bright is the picture, and will it work in a daylit training room in Lusail?

The display has 3840 × 2160 resolution, 400 cd/m² brightness and a 4000:1 dynamic contrast ratio. In a large training room with wide windows in Lusail, direct sunlight can wash out a screen of this brightness, so position the panel away from direct sun and check the lighting during a free site survey before fixing it in place.

Can it be installed in a hot hall or lobby without air conditioning?

The working range is 0–40°C at 20–80% humidity, non-condensing, and the storage range is -10 to 45°C. Summer temperatures in Qatar can push unconditioned halls above 40°C, which is outside the operating range. Use the panel in an air-conditioned room, and if a lobby receives sun exposure, check the environment with the SmartRooms Qatar team before choosing the location.

Which ports can I use to connect laptops and other sources?

The panel has three HDMI 2.0 inputs, one DisplayPort 1.2, a VGA input and an HDMI 2.0 output. It also has a USB Type-C port with 65W Power Delivery, two USB 3.0 Type-A ports, additional USB 2.0 Type-A ports, a microphone input, audio line out, S/PDIF, RS-232 control and an RJ-45 network connection. Type-C lets a laptop charge while sending its signal over one cable.

Does it include a camera for video conferencing?

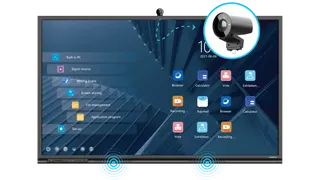

No. The 4K camera with a 120° field of view and 15° tilt adjustment is an optional add-on rather than part of the base panel. If your boardroom in West Bay needs to join calls with colleagues abroad, include the camera in your request so that the quotation covers it along with the display.

What operating system and wireless connectivity does it use?

It has an integrated Wi-Fi 6 module and a dual system design with integrated Android 11 and Windows OS. The panel also has an OPS-PC slot for an external computer module. Before ordering, the installer should confirm that any module you plan to use is compatible with the panel, so the room works as intended on day one.

What power does it need, and does it suit Qatar's mains supply?

The power input is rated for 100–240 V AC at 5.0A, with standby consumption below 0.5 W. Qatar's mains supply is 240 V at 50 Hz, which falls within the stated input range. Your installer should confirm a suitable BS 1363 (Type G) socket and circuit before the panel is fitted.

How should I plan delivery and mounting for a boardroom in Msheireb?

The net weight is 64.5 kg and the gross weight is 80.5 kg, with packing dimensions of 2119 × 1290 × 250 mm. Measure doors, lifts and corridors before ordering, then book a free site survey to check wall strength if you choose wall mounting, or floor space if you choose a mobile stand.

Does the manufacturer warranty cover this model?

Products supplied by SmartRooms Qatar are covered by the manufacturer's warranty. The data for this model does not list a warranty duration or terms, so SmartRooms Qatar will confirm the cover that applies to your order, and to any replacement, in the quotation before you buy.

Can a school in Al Wakrah order several units on a purchase order?

Yes. SmartRooms Qatar accepts purchase orders (LPOs), government tenders including Monaqasat, and payment by bank transfer, cheque or purchase order. For a school fitting out several classrooms or halls, list the room count and quantity in your request. If this discontinued model cannot be supplied, the quotation can cover a current equivalent instead.
