PMB000L864

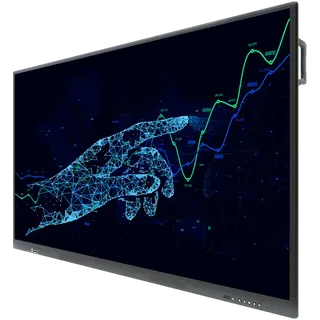

Prestigio PMB000L864 86-inch MultiBoard Interactive Display
- Screen size
- 86"
- Resolution
- 3840x2160@60Hz
- Touch
- 10 Points Writing and 20 Points…
- System
- Android 8.0

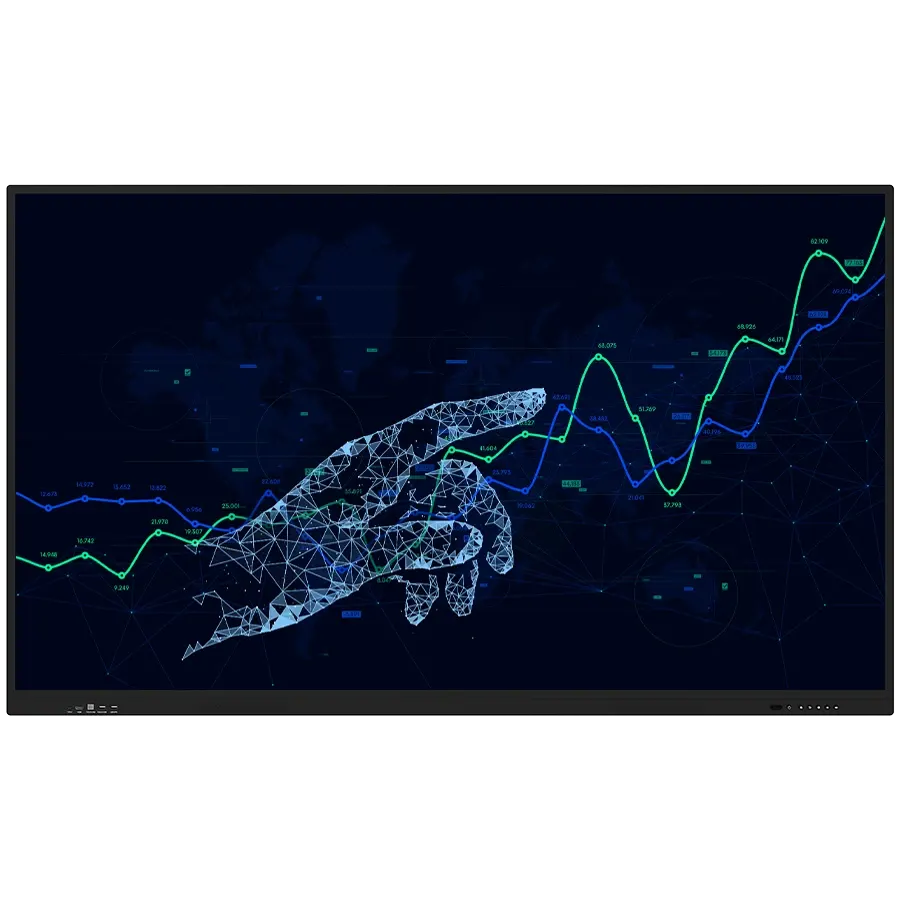

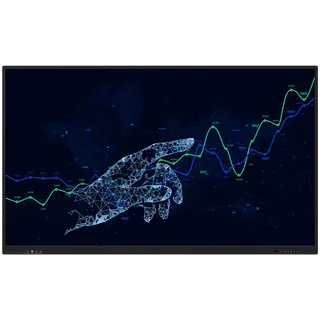

The Prestigio PMB000L864 is an 86-inch 4K interactive display from the MultiBoard Light Series Gen 4, with 20-point infrared touch, 10 simultaneous writing points and built-in Android 8.0. Its 3840x2160 LCD and 4,000:1 contrast suit lecture halls and boardrooms in Doha. The manufacturer has discontinued this model, so Qatari buyers comparing options should request a quote for a current equivalent or compatible replacement.
What the Prestigio PMB000L864 is
The Prestigio PMB000L864 is an 86-inch interactive display from the MultiBoard Light Series Gen 4 range. It combines a 3840x2160 LCD panel with an infrared touch frame and an Android 8.0 system, so teachers and presenters can write, annotate and open files without a separate computer. The manufacturer has discontinued this model. This page is written for organisations that already own it, for buyers comparing it with newer boards, and for anyone who needs a replacement.
The specifications that matter on site
The panel supports a maximum resolution of 3840x2160 at 60Hz, a brightness rating of 400 cd/m² and a contrast ratio of 4,000:1, with an 8 ms maximum response time. The touch system supports 20 touch points and 10 simultaneous writing points, and one feature lets two writers use different ink colours at once. Inside is an ARM Dual Core Cortex A73+A53 processor, 3 GB of RAM and 32 GB of internal storage.
- Ports: three HDMI 2.0 inputs, one HDMI output, a VGA input, two RJ-45 LAN ports, three USB 2.0 ports and a front-panel USB Type-C port.
- Audio: three 15 W speakers and a 15 W subwoofer, with line-in and line-out minijacks.
- Connectivity: Wi-Fi supporting IEEE 802.11a/b/g/n/ac and Bluetooth 2.1+EDR, 4.2 and 5.0.
Where it fits in Qatar

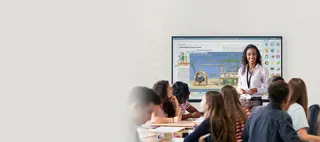

In a boardroom in West Bay or Msheireb, the 86-inch screen suits a group reviewing shared documents, and a laptop or conferencing system connected over HDMI can join calls with teams abroad. In a lecture hall at a university in Education City, the same panel can run lessons from its built-in Android system while a teacher's laptop connects through the HDMI inputs. A training centre in Lusail or a government office in Doha may prefer to link a dedicated embedded PC for a separate presentation environment. The source data lists compatibility with embedded PC models PMB528K001, PMB528K002 and PMB528K003, but no embedded PC is in the included accessories.
What to plan before you order
At 1967 mm wide, 1171.6 mm high and 88.7 mm deep, weighing 78 kg, this panel needs a wall that can carry its weight and a clear route for delivery and handling. SmartRooms Qatar offers free site surveys, so the team can check wall structure, power and cable runs before installation. The unit accepts AC 100-240 V at 50/60 Hz, which covers Qatar's 240 V, 50 Hz mains. Standby draw is 0.5 W and maximum output power is 380 W. The source data does not state an operating temperature range, so confirm with the SmartRooms Qatar team how the room will be cooled and whether the position is exposed to direct sun or dust before fixing the panel.
Warranty and ordering
The manufacturer provides a 36-month warranty, unless local law requires otherwise, and a wall mount kit is included. Ordering is by quotation: request a quote and SmartRooms Qatar will usually reply within one working day. Government and school buyers can order by LPO or through Monaqasat tenders, and payment is by bank transfer, cheque or purchase order. Because this model is discontinued, request a quote for a current equivalent or compatible replacement if you need one for your room.
Highlights
- 86-inch 16:9 LCD with 3840x2160 maximum resolution at 60Hz
- 20-point infrared touch with 10 simultaneous writing points
- Built-in Android 8.0 with 3 GB RAM and 32 GB storage
- Three HDMI 2.0 inputs, front USB Type-C and two RJ-45 LAN ports
- Three 15 W speakers plus a 15 W subwoofer
- 36-month manufacturer warranty, subject to local law
Classroom fit
At 86″ the farthest student should sit within about 6.4 m (6× the screen height).
Estimated timeline
Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.
Specifications
Software1
- Operating System
- Android 8.0
Display11
- Display Type
- LCD
- Display Diagonal
- 86"
- Maximum Resolution
- 3840x2160@60Hz
- Image Aspect Ratio
- 16:9
- Pitch Type
- Dot Pitch
- Pitch Width
- 0.4958 mm
- Image Brightness
- 400 cd/m²
- Image Contrast
- 4 000 : 1
- Maximum Response Time
- 8 ms
- Display Features
- 10 Point Touch-Screen UHD Lifetime 50000h Multi-Touch Infrared Touch-screen 20 Point Infrared Touch-Screen D-LED Backlight
- Display Technology
- TFT Active Matrix
Speaker2
- Output Power
- 3x15 W
- Subwoofer Output Power
- 15 W
Power6
- Power Device Type
- Power Supply
- Input Voltage
- AC 100-240 V
- Power Device Location
- Internal
- Input Frequency
- 50/60 Hz
- Power Consumption Stand By/Sleep
- 0.5 W
- Maximum Output Power
- 380 W
Miscellaneous5
- Included Accessories
- Quick Start Guide Warranty card Remote Control 7 Writing Pens Wall Mount Kit
- Cable Included
- USB Cable
- Compatibility
- PC PMB528K001, PC PMB528K002, PC PMB528K003
- Mounting Kit
- Included
- External Color
- Black
Networking Specifications3
- Wi-Fi
- IEEE 802.11a IEEE 802.11b IEEE 802.11g IEEE 802.11n Wi-Fi 4 IEEE 802.11ac Wi-Fi 5
- Bluetooth
- Bluetooth 2.1+EDR/4.2/5.0
- LAN
- Yes
Dimensions & Weight Device4
- Height (mm)
- 1171.6
- Depth (mm)
- 88.7
- Width (mm)
- 1967
- Nominal Weight
- 78 kg
Warranty2
- Warranty Term (month)
- 36 month(s)
- Warranty Term Notes
- Unless otherwise required by local law (see prestigio-solutions.com/warranty)
Touch System2
- Sensing Type
- Infrared Recognition
- Touch Point
- 10 Points Writing and 20 Points Touch
Android System3
- CPU
- ARM Dual Core Cortex A73+A53 CPU
- Installed RAM Storage Capacity
- 3 GB
- Internal Memory Size
- 32 GB
Display Connectors12
- HDMI Out
- 1
- USB 2.0
- 3 (USB 2.0 (type A))
- VGA
- 1 (15-pin D-sub)
- Audio Line-In
- 1 (3.5-mm minijack)
- A/V-In
- 1
- Serial
- 1 (RS-232)
- Audio Line-Out
- 1 (3.5-mm minijack)
- LAN
- 2 (RJ-45)
- USB
- 1 (USB Type C)
- Touch Port
- 2
- HDMI In 2.0
- 3 (HDMI (Type A))
- A/V-Out
- 1
Bundle1
- Bundle With
- 2 pen for writing with double colors+5 regular pen
