Elo 5053L (Discontinued) · Replacements in Qatar

Name: Elo 5053L 50-inch 4K Interactive Display (Discontinued)
Brand: Elo
SKU: elo-5053l
Availability: Discontinued

Overview

Discontinued by Elo and replaced by the 5054L, the 5053L is a 50-inch 4K interactive touch display. It offers 3840 x 2160 resolution, 40-point PCAP or 20-point infrared touch, and touch-through mounting behind glass up to 6mm. It suits endless aisle kiosks, meeting rooms and reception areas in Doha. Owners of this model and buyers needing a compatible replacement can request a quote.

What the 5053L Is and Why It Matters

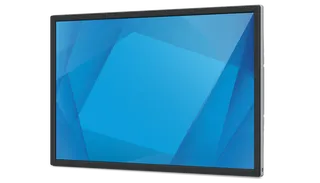

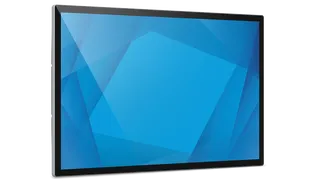

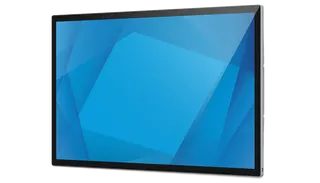

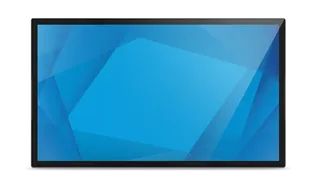

The Elo 5053L is a 50-inch interactive display with a 3840 x 2160 panel, a 16:9 aspect ratio and a black enclosure. Its active area measures 1095.84 mm x 616.41 mm. Elo has discontinued this model and replaced it with the 5054L, so this page serves three groups: organisations that already run a 5053L and are planning expansion or replacements, buyers comparing it with newer models, and anyone who needs a current or compatible replacement at the same size.

Choosing Between the PCAP and Infrared Versions

Three part numbers cover this model. The right one depends on how the screen will be touched and protected:

E665859: TouchPro PCAP, anti-glare glass, 40 touch points, 430 nits typical brightness.
E666042: TouchPro PCAP, anti-friction glass, 40 touch points, 430 nits typical brightness.
E666224: infrared, anti-friction glass, 20 touch points, 450 nits typical brightness.

The PCAP versions support palm rejection and gloves up to 1.4 mm thick. They also offer touch-through capability, rated for up to 6 mm glass or 3 mm plastic with up to two touches, which suits a panel mounted flush behind a counter, a mirror or a sealed kiosk front. The LCD panel itself is rated at 500 nits typical.

Display, Connectivity and Audio for Busy Sites

The panel is listed with a 4000:1 contrast ratio and 9.5 ms typical total response time. Inputs include two HDMI 2.0 ports, a DisplayPort 1.4 input and USB-C, which carries both video and touch from a computer. A 3.5 mm serial jack supports RS232/MDC control, and an RJ45 port connects an optional wired OSD remote. Four Elo Edge Connect micro USB 2.0 ports take scanners, card readers and other peripherals, and two 8 W stereo speakers are built in.

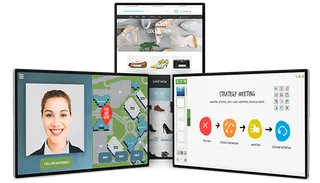

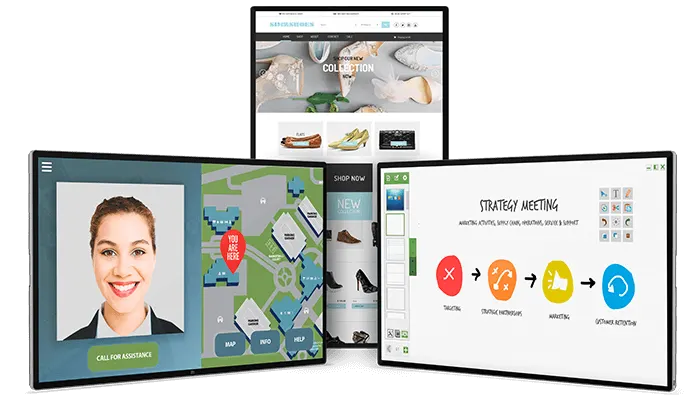

Where the 5053L Fits in Qatar

Three scenarios show how this size and connectivity are typically used:

Retail and malls: an endless aisle kiosk in West Bay or The Pearl, where shoppers browse the full range on a touch screen while a barcode scanner or card reader attaches to the Edge Connect ports.
Hotels and offices: a reception screen in Msheireb or Lusail showing wayfinding and visitor information, mounted in portrait orientation.
Education and meetings: a small meeting room in Education City where a 4K conference camera and speaker bar support calls with teams abroad.

Planning Power, Space and Environment

The power input accepts 100-240VAC at 50/60 Hz, so it runs on Qatar's 240 V, 50 Hz supply, and the box includes a UK-plug power cable for BS 1363 sockets. Typical draw is 99 W on with the monitor alone and 116 W with an ECMG4 computer module, dropping to 1.8 W in sleep. The unit is rated for 0 to 40°C in landscape, portrait or tilt (up to 15°) and 0 to 35°C in tabletop use. Qatar summers can pass 45°C, so place the display in an air-conditioned room and ask the SmartRooms Qatar team to review any window-facing or semi-exposed position.

Plan the mounting carefully. The VESA pattern is 400 x 400 mm and the PCAP unit measures 1162.1 mm x 682.7 mm x 62.0 mm. Unpackaged weight is 25.76 kg without the ECMG4 module and 27.86 kg with it. An optional wall mount kit (E721949) and stand (E722153) are available. SmartRooms Qatar offers a free site survey before a panel of this weight is wall-mounted, and professional installation can be included in your quotation.

Discontinued Status, Warranty and Next Steps

Elo has discontinued the 5053L and replaced it with the 5054L. The data lists a 3-year warranty with advance unit replacement, with optional 4-year (E740135) or 5-year (E740330) extensions that also include advance unit replacement. If your organisation already has 5053L units or needs a compatible replacement, request a quote and include your part numbers, quantity and mounting method. We will confirm the nearest current equivalent within the quotation.

Highlights

50-inch panel with 3840 x 2160 (4K) resolution
PCAP with 40 touch points or infrared with 20
Touch-through PCAP for mounting behind up to 6mm glass
Four Elo Edge Connect ports for scanners, card readers and cameras
3-year warranty with advance unit replacement included
Discontinued by Elo and replaced by the 5054L

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

41 specifications · Source: manufacturer · checked Oct 2026

Technical41

Part Number(s): TouchPro PCAP (clear with anti-friction) - E666042 TouchPro PCAP (anti-glare) - E665859 Infrared (clear with anti-friction) - E666224
Enclosure Color: Black
Touch Technology & Capacity: PCAP (TouchPro® Projected Capacitive) - 40 Touch with Palm Rejection and Touch Thru capability Infrared - 20 Touch
Touch Thru: TouchPro PCAP supports up to 6mm glass/3mm plastic with up to 2 touches. Supports gloves up to 1.4mm
Touch Interfaces: USB-C
Diagonal Size: 50'' / 1270 mm diagonal, Active matrix TFT LCD (LED)
Active Area: 43.14" x 24.27" / 1095.84 mm x 616.41 mm
Aspect Ratio: 16:9
Resolution: 3840 x 2160 @ 60hz
Other Supported Resolutions: 640 x 480 @ 60Hz 800 x 600 @ 56/60Hz 1024 x 768 @ 60Hz 1280 x 720 @ 50/60Hz 1280 x 960 @ 60Hz 1280 x 1024 @ 60Hz 1920 x 1080 @ 60Hz 2560 x 1440 @ 60Hz 2560 x 1600 @ 60Hz 3840 x 2160 @ 30/60Hz
Viewing Angle: Horizontal: ±89° or 178° total / Vertical: ±89° or 178° total
Number of Colors: 8-bit + FRC (1.07 billion)
Brightness (typical): LCD Panel: 500 nits PCAP: 430 nits IR: 450 nits
Response Time-total (typical): 9.5 msec
Contrast Ratio: 4000:1
On Screen Display: Let’s Get Started: Language Selection, Time Setting, Time Zone Video Source Select: HDMI-1, HDMI-2, DisplayPort, USB-C, Internal-PC DP, Internal-PC HDMI Video Settings: Video Port Discovery, Brightness, Contrast, Black Level, Sharpness and Aspect Ratio can be selected Color Settings: Color Temperature, Color Sensor, User Preset (for color), Picture Modes and HDMI Full Range are available in this menu. Audio Settings: Audio Input, Audio Output, Mute, Volume selection are available here. Power: Power Loss Behavior, Power Lock, Energy Saving Mode, Power Status Light options are available here Tim
I/O Ports: HDMI 2.0 x2 USB-C (for Touch and video) RJ45 (for optional OSD remote) DisplayPort 1.4 3.5mm TRS jack (for RS232/MDC) 3.5mm Audio Headphones out Elo Edge Connect Micro USB 2.0 x4
Control Buttons: Power Video Source Selection On Screen Display
Video: 2x HDCP-capable HDMI on Type A connector DisplayPort 1.4 connector USB-C connector Input Video Horizontal Sync frequency range: FHD: 30 – 135 KHz Input Video Vertical Sync (frame rate) frequency range: 24 - 64 Hz
Headphone Output Connector: 3.5 mm TRS jack
Speakers: 2 x 8 W stereo speakers
Power: Input connector (power): IEC 60320-C13 Input signal specifications (power): 100-240VAC 50/60Hz
Maximum Operating Time: 24 hours/day
Power Consumption (Typical): Monitor + AC/DC adapter: ON: 99W SLEEP: 1.8W OFF: 0.28W Monitor with ECMG4 + AC/DC adapter: ON: 116W SLEEP: 8.7W
Dimensions: TouchPro PCAP: 45.75" x 26.88" x 2.44" / 1162.1 mm x 682.7 mm x 62.0 mm IR: 45.75" x 26.88" x 2.83" / 1162.1 mm x 682.7 mm x 71.8 mm
Shipping Box Dimensions: 51.6" x 7.4" x 37.0" / 1310 mm x 187 mm x 940 mm
Weight (Unpackaged): TouchPro PCAP: With ECMG4: 61.42 lbs / 27.86 Kg Without ECMG4: 56.79 lbs / 25.76 Kg IR: With ECMG4: 61.62 lbs / 27.95 Kg Without ECMG4: 56.99 lbs / 25.85 Kg
Weight (Packaged): TouchPro PCAP: Without ECMG4: 69.84 lbs / 31.68 Kg IR: Without ECMG4: 71.1 lbs / 32.25 Kg
Operating Temperature: Portrait/Landscape/Tilt (≤15°) Mode: 0°C to 40°C / 32°F to 104°F Table top Mode: 0° C to 35° C / 32°F to 95°F
Storage Temperature: -20°C to 60°C / -4°F to 140°F
Humidity: Operating: 20% to 80% Storage: 10% to 95% (38.7°C max wet bulb temperature)

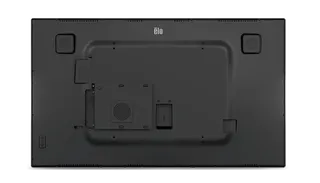

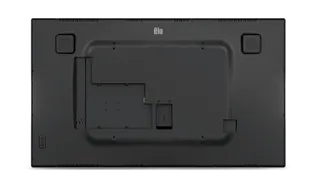

Mounting Options: VESA 400 x 400mm
Sealability: Touchscreen sealed to bezel Touchscreen sealed to LCD
MTBF: 50,000 hours demonstrated
Warranty: 3-year with AUR included
Extended Service Options: 4 year warranty coverage + AUR - Elo P/N: E740135 5 year warranty coverage + AUR - Elo P/N: E740330 3 year warranty coverage + OSE - Elo P/N: E740527 4 year warranty coverage + OSE - Elo P/N: E740728 5 year warranty coverage + OSE - Elo P/N: E740918
Regulatory approvals and declarations: UL 62368-1 FCC (US) cUL, IC (Canada) CB (International safety) (IEC/EN60950-1+IEC/EN62368-1) CE (Europe) VCCI (Japan) RCM (Australia) CCC, China RoHS (China) (for TouchPro version only) EAC (Russia) NOM (Mexico) IK07 and UL60950 for ball drop test
Energy Star: 8.0
Other Features: Ambient Light Sensor - changes panel color to match ambient light, Auto Wake
What's in the Box: Quick Install Guide HDMI 2.0 cable (Type A plug to Type A plug) USB cable (Type A plug to Type C plug) Power cable, IEC 60320-C13 to NA plug Power cable, IEC 60320-C13 to EU/KR plug Power cable, IEC 60320-C13 to UK plug Serial 3.5mm male to Serial DB9 female cable Energy label according to EU Regulation 1062/2010
IDS Optional Accessories: 2D Barcode Scanner (SE4720) – Elo P/N: E384627 2D Barcode Scanner (SE4107) – Elo P/N: E245047 Magnetic Stripe Reader – Elo P/N: E001002 NFC/RFID Reader – Elo P/N: E001004 EMV Cradle for MagTek eDynamo - Elo P/N: E375343 EMV Cradle for Ingenico RP457c (with Audio Jack, BT and USB) - Elo P/N: E586981 EMV Cradle for Ingenico RP457c (with BT and USB) - Elo P/N: E710930 Fingerprint Scanner – Elo P/N: E134286 Stand for IDS - Elo P/N: E722153 Wired OSD Remote - Elo P/N: E483757 Wall Mount Kit - Elo P/N: E721949 Passive Stylus - Elo P/N: E727568 Active PCAP Stylus - Elo P/N: E216215 Replacement Cable

Downloads

0 files from the manufacturer

No downloadable files are listed for this model yet. Ask us and we will send the datasheet.

Questions about 5053L

Is the Elo 5053L still available from the manufacturer?

No. Elo has discontinued the 5053L and replaced it with the 5054L. SmartRooms Qatar can quote the 5054L or another current, compatible 50-inch 4K replacement. Tell us your mounting method, the touch type you need and whether you want a Windows ECMG4 or Android Backpack computing module, and we will confirm the best option within the quotation, usually within one working day.

What is the difference between E665859, E666042 and E666224?

E665859 is a TouchPro PCAP version with anti-glare glass and 40 touch points. E666042 is a TouchPro PCAP version with anti-friction glass and 40 touch points. E666224 uses infrared touch with anti-friction glass and supports 20 touch points. All three are 50-inch 4K panels. Check the part number before ordering, because the touch technology and glass finish differ between versions.

Can the 5053L be mounted behind glass in a counter or kiosk?

Yes, but touch-through capability is listed only for the TouchPro PCAP versions, E665859 and E666042. The data rates the touch-through function for up to 6 mm glass or 3 mm plastic, with up to two touches. This suits a reception counter behind a protective panel in a Doha bank branch or a fully encased kiosk in a shopping mall. Ask the SmartRooms Qatar team to confirm your glass thickness before fabrication.

What resolution does the 5053L display at?

The native resolution is 3840 x 2160 at 60 Hz with a 16:9 aspect ratio. The panel also accepts lower resolutions such as 1920 x 1080 and 2560 x 1440 at 60 Hz. The 4K resolution suits menu boards, wayfinding and dashboards that people read from a distance, such as in a hotel lobby or office reception. The panel is listed with a 4000:1 contrast ratio.

Can the display run in portrait mode for a directory or menu board?

Yes. The data lists landscape, portrait and tilt mounting up to 15 degrees, as well as tabletop use. In portrait mode the operating range is 0 to 40°C. Portrait orientation suits a tall wayfinding board in the lobby of an office tower in West Bay, or a menu board in a café in the Industrial Area. The on-screen menu also includes a portrait rotation option.

How do I add a barcode scanner, card reader or camera?

Four Elo Edge Connect micro USB 2.0 ports take compatible accessories. Listed options include 2D barcode scanners (SE4107 and SE4720), a magnetic stripe reader, an NFC/RFID reader, EMV cradles, a fingerprint scanner and a 4K conference camera. In a self-service kiosk in a Doha retail store, a barcode scanner and a card reader can both connect to the same display, leaving the remaining ports free for future expansion.

Which computer module does the 5053L need?

The display can be fitted with an Elo ECMG4 Windows computer module, which turns it into an all-in-one touch PC with no external cables and uses 7th-generation Intel Core processors. As an alternative, the Elo Backpack 4 Android unit is available, which supports a maximum resolution of 1920 x 1080. The ECMG4 raises typical power draw to 116 W, so check the electrical load of the room before installation.

Is this display suitable for a meeting room in Education City?

Yes, for a small meeting room or study space where a limited group shares one screen. It connects through HDMI or USB-C, and a 4K conference camera and speaker bar can be added for calls with teams abroad. The two built-in 8 W speakers suit small rooms, but larger lecture spaces may need external audio. Ask us for a quotation that includes the camera and speaker bar if your room needs them.

Can it be installed near a window or in an area without air conditioning?

Qatar summer temperatures can exceed 45°C, while the 5053L is rated for 0 to 40°C in landscape, portrait and tilt modes, and 0 to 35°C in tabletop mode, with operating humidity from 20% to 80%. Install it in an air-conditioned room. Window-facing positions or open entrances should be reviewed with the SmartRooms Qatar team before ordering, including exposure to direct sunlight and dust.

What wall mount does it use, and how heavy is it?

The mounting pattern is VESA 400 x 400 mm. The PCAP unit measures 1162.1 mm x 682.7 mm x 62.0 mm and weighs 25.76 kg unpackaged without the ECMG4 module, or 27.86 kg with it. An optional wall mount kit (E721949) is listed for IDS models from 32 to 50 inches. Because of the weight, SmartRooms Qatar offers a free site survey to check the wall structure before installation.

What warranty comes with the 5053L?

The 5053L carries a 3-year warranty that includes advance unit replacement. If a fault cannot be resolved by phone, Elo sends a replacement unit with a pre-paid shipping label for returning the faulty one. Extended coverage to 4 years (E740135) or 5 years (E740330), with advance unit replacement, is also available. Products are covered by the manufacturer's warranty, and you can ask about extension options when you request a quote.

Can a government ministry or school order this display on an LPO?

Yes. SmartRooms Qatar accepts purchase orders (LPOs), government tenders including Monaqasat, and payment by bank transfer, cheque or purchase order. A school ordering several units should send the quantity and the part numbers it needs, so the quotation lists each variant. Because this model is discontinued, the quotation will confirm which version or replacement is available. Delivery covers all eight municipalities of Qatar.
