NEC V652-TM (Discontinued) · Replacements in Qatar

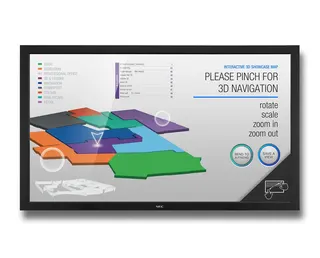

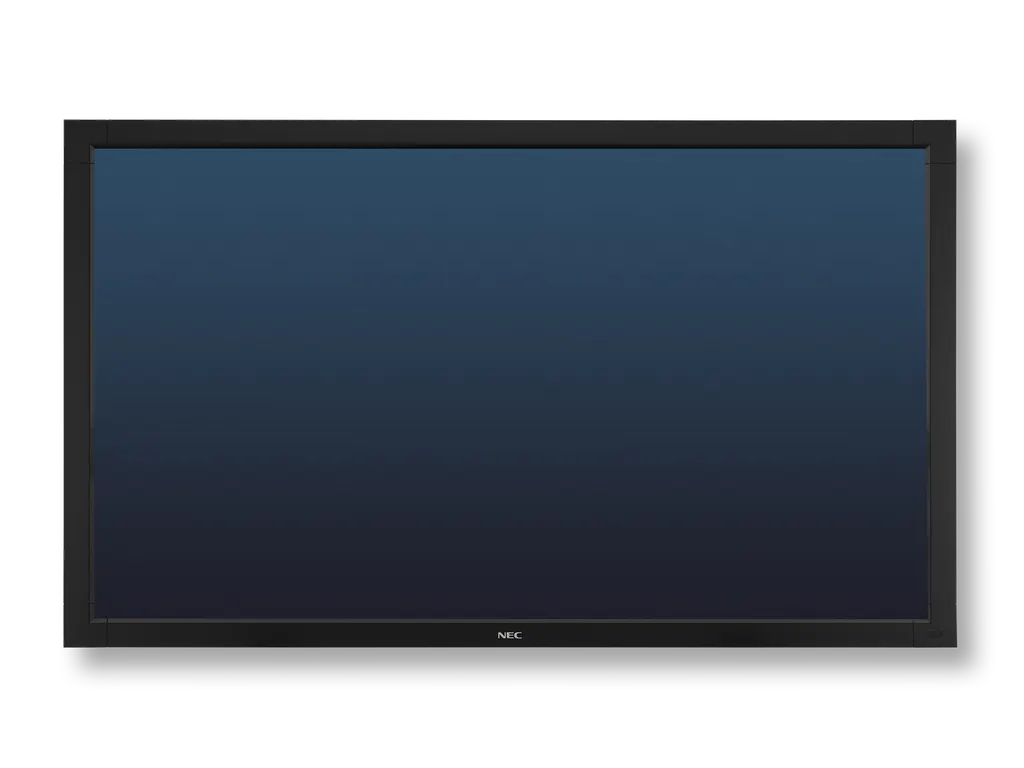

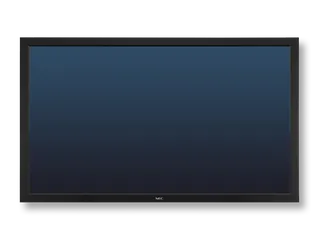

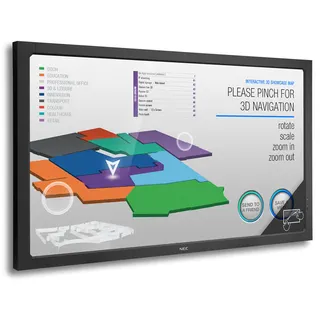

Name: NEC MultiSync V652-TM 65-inch Optical Camera Touch Display
Brand: NEC
SKU: nec-v652-tm
Availability: Discontinued

Overview

The NEC MultiSync V652-TM is a discontinued 65-inch touch display that tracks up to five simultaneous touches through four optical cameras. Anti-reflective tempered glass and a rear OPS slot for a plug-in computer suit classrooms and meeting rooms. Qatar organisations that own one, or need a replacement, can request a quote for a current equivalent.

What the V652-TM is and how its touch works

The NEC MultiSync V652-TM is a 65-inch display from the MultiSync V Series. It uses an AMVA3 panel with edge LED backlighting and a native resolution of 1920 x 1080 at 60 Hz. Touch is handled by four integrated optical cameras, and the screen responds to a finger, a stylus or a gloved hand. It tracks up to five simultaneous touch points, with gesture control on Windows 7 and Windows 8. NEC has discontinued this model, so this page is written for organisations that already own one, buyers comparing it with newer touch displays, and anyone looking for a replacement.

Glass, brightness and readability in bright rooms

The front protection glass is 5 mm thick, fully tempered, and treated with an anti-reflection coating on both sides. The published figures are 96% light transmission and a 2% reflection rate. Brightness is 450 cd/m² at the shipment setting and falls to 173 cd/m² in its Eco setting, with a typical contrast ratio of 4000:1. In a room with windows or strong overhead lighting, this combination helps text and diagrams stay legible on the screen.

Built-in computer slot and connections

The rear OPS slot follows the NEC and Intel OPS specification and accepts a plug-in computer module. The slot is rated 16 V / 4 A, draws a maximum of 61 W, and has a maximum inrush current of 10 A. Using a slot-in computer removes the external PC and its USB cable from the desk. NEC also lists a slot-in PC option with Intel Core i5 or i7 processors and recommends a specific module, so confirm the exact module with the SmartRooms Qatar team before ordering. Inputs include HDMI 1.3, DisplayPort, DVI-D, a 15-pin D-sub, and composite and component video on BNC connectors. There is also a DVI-D output, a 100Mbit LAN port and RS232 for control.

Where it fits in Qatar

A private school in Al Wakrah fitting out a classroom where a 65-inch panel suits the room size and the teacher works at the screen.
A university training centre in Education City equipping a seminar room where a small group reviews material together.
A hotel or serviced apartment in West Bay placing a touch screen in a meeting room or a guest information area, managed from an OPS computer.

What to plan before ordering

The operating range is 0 to +35°C at 20 to 80% humidity. Summer temperatures in Qatar often exceed 45°C, so the display belongs in an air-conditioned room, away from direct sunlight, with ventilation kept clear. The panel weighs 68.3 kg without its stand. A wall mount needs a 400 x 400 mm VESA pattern with M8 holes, a suitable bracket and a wall that can carry the load. SmartRooms Qatar offers a free site survey before wall mounting, and NEC lists the PDWHM-L wall mount as an accessory. Ingress protection is IP40 at the front and IP20 at the back. Integrated speakers are 10 W + 10 W, and optional 15 W + 15 W speakers are available.

Power, warranty and the replacement question

The power draw is 178 W at the shipment setting, below 0.5 W in ECO Standby, and the rated annual consumption is 260 kWh based on four operating hours per day. The energy efficiency class is B. The manufacturer's warranty is three years and includes the backlight. Because the V652-TM is discontinued, we recommend requesting a quote for a current equivalent or a compatible replacement. Share your room list and the number of units, and request a quote from SmartRooms Qatar to compare options for your project.

Highlights

Up to five simultaneous touch points with finger, stylus or gloved input
Four integrated optical cameras for touch detection
5 mm fully tempered glass with double-sided anti-reflection coating
96% light transmission and 2% reflection rate
Rear OPS slot rated 16 V / 4 A for a plug-in computer
Operating range 0 to +35°C; discontinued by NEC

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

60 specifications · Source: manufacturer · checked Oct 2026

Product Information3

Product Name: NEC MultiSync® V652-TM (Optical Camera Touch)
Product Group: LCD 65" Value Large Format Touch Display
Order Code: 60003553

Display9

Panel Technology: AMVA3 with Edge LED backlights
Active Screen Area (W x H) [mm]: 1,428.5 x 803.5
Screen Size [inch/cm]: 65 / 165
Aspect Ratio: 16:9
Brightness [cd/m²]: 450, 173 Eco (shipment setting)
Contrast Ratio (typ.): 4000:1
Viewing Angle [°]: 89 horizontal / 89 vertical (typ. at contrast ratio 10:1)
Response Time (typ.) [ms]: 8 (grey-to-grey)
Panel Refresh Rate [Hz]: 60

Touch7

Touch Technology: Optical Camera with 4 Cameras
Protection Glass: 5 mm, double sided anti-reflection, fully tempered
Touch Method: Finger; Gloves; Stylus
Supported Operating System: 1 touch point: Windows XP, Mac OS, Linux; 4 touch points: Windows Vista; 5 touch points (incl. gesture control): Windows 7, Windows 8
Data Interface: RS323; USB-HID
Light Transmission [%]: 96
Reflection Rate [%]: 2

Resolution3

Native Resolution: 1920 x 1080 at 60 Hz
Supported Resolutions: 1024 x 768; 1280 x 1024; 1280 x 720; 1280 x 768; 1280 x 800; 1280 x 960; 1366 x 786; 1400 x 1050; 1600 x 1200; 1680 x 1050; 1920 x 1080; 640 x 480; 720 x 400; 720 x 576; 800 x 600
Supported on digital inputs (Video): 1280 x 720p (50)16:9; 1280 x 720p (59.94/60)16:9; 1920 x 1080i (50)16:9; 1920 x 1080i (59.94/60)16:9; 1920 x 1080p (23.97/24)16:9; 1920 x 1080p (25)16:9; 1920 x 1080p (29.97/30)16:9; 1920 x 1080p (50)16:9; 1920 x 1080p (59.94/60)16:9; 720 x 480p (59.94/60)16:9; 720 x 576p (50)16:9

Synchronisation Rate2

Horizontal Frequency [kHz]: 31.5 - 91.1 (analog and digital)
Vertical Frequency [Hz]: 25.2 - 85

Connectivity9

Input Video Analogue: 1 x D-sub 15 pin; Composite (BNC); RGBHV for PC and Component/Composite (BNC)
Input Video Digital: 1 x DisplayPort (with HDCP); 1 x DVI-D (with HDCP); 1 x HDMI 1.3 (with HDCP)
Input Audio Analogue: 1 x 3,5 mm jack
Input Audio Digital: 1 x HDMI; DisplayPort
Input Control: LAN 100Mbit; remote control wire (3,5mm jack); RS232
Output Video Digital: 1 x DVI-D (with HDCP)
Output Audio Analogue: 3,5mm jack
Output Control: RS232
Remote Control: LAN with SNMP; Remote Control IR (internal/external (optional) sensor); RS-232C (9-pin D-sub) Input and Output

Open Modular Intelligence4

OPS Slot: Slot Technology: Open pluggable specification (NEC / Intel OPS standard)
Inrush Current [A]: max. 10
Power Consumption [W]: max. 61
Voltage / Current [V/A]: 16/4

Electrical3

Power Consumption [W]: 178 Eco (shipment setting)
Power Savings Mode [W]: < 0.5 (ECO Standby); < 1
Power Management: VESA DPMS

Environmental Conditions4

Operating Temperature [°C]: +0 to +35
Operating Humidity [%]: 20 to 80
Storage Humidity [%]: 10 to 90
Storage Temperature [°C]: -20 to +60

Mechanical5

Dimensions (W x H x D) [mm]: Without stand: 1,540.4 x 909.2 x 102
Weight [kg]: Without stand: 68.3
Bezel Width [mm]: 50.5 (top/bottom); 53.5 (left/right)
VESA Mounting [mm]: 4 holes; 400 x 400 (FDMI); M8
Ingress Protection: IP40 (front); IP20 (back)

Available Options2

Accessories: Feet (ST-651); Speaker (SP-RM1); Trolley (PDMHA, PDMHM-L); Wall mount (PDWHM-L, PDW T XL)
Option Slot: HD-SDI 1.5 and 3G, Intel Core i5 and i7; Slot-in PC (Core i5/7 with WS7P recommended)

Regulatory1

Safety and Ergonomics: C-tick; CE; FCC Class B; PSB; RoHS; TÜV GS; UL/C-UL or CSA; VCCI

Green Features2

Energy Efficiency: Ambient Light Sensor; Annual energy consumption: 260 kWh (based on 4 operating hours per day); Carbon Savings Meter; ECOMode; Energy Efficiency Class: B
Ecological Materials: Manuals on CD; Optional feet

Additional Features6

Special Characteristics: Advanced fan control; Automatic Alarm E-Mails; Copy display settings through RS232; DICOM Simulation; Hardware colour calibration possible; Input name adjustment; Matrix memory; PIN as theft protection; Rapid input switching; Scheduler; Screen saver functions; TileMatrix (10 x 10); User input priority definition; Various picture in picture options
Colour Versions: Black Front Bezel, Black Back Cabinet
Audio: Integrated Speakers (10 W + 10 W); Optional Speakers (15 W + 15 W)
Shipping Content: CD-ROM (User Guides/Manuals); Display; DVI-D cable; Free LAN control software (download); Power Cable; Remote Control; USB cable
Warranty: 3 years warranty incl. backlight
Operating Hours: 16/7

Downloads

7 files from the manufacturer

PDF Datasheets V652-TM_Datasheet.pdf 350 KB PDF Brochures Warranty-and-Services_Interactive_Computing.pdf 1.0 MB PDF Brochures · Opens on manufacturer site SharpProduct_Overview.pdf PDF Drawings & CAD TechnicalSchema-V652TM-withStand.pdf 371 KB PDF Drawings & CAD TechnicalSchema-V652TM-withoutStand.pdf 362 KB 7Z Drawings & CAD · Opens on manufacturer site v652-tm_outline_dxf(rev.1.0).7z PDF Certificates & compliance EnergyLabel-V652TM.pdf 184 KB

Questions about V652-TM

Is the NEC V652-TM still available from SmartRooms Qatar?

NEC has discontinued the V652-TM. SmartRooms Qatar can review your requirements and quote a current equivalent or a compatible replacement in the 65-inch touch display range. Include your room type, software and existing mounting details in your request so the recommended model matches your setup before you order.

What is the V652-TM designed for?

NEC positions the V652-TM for retail signage, conference rooms and education. At 65 inches it suits a classroom, huddle room or meeting room where a small group works at the screen. Larger lecture halls or boardrooms usually need a bigger panel, so measure the viewing distance in your room before choosing this size.

How many people can touch the screen at once, and with what?

The screen supports up to five simultaneous touch points, and you can use a finger, a stylus or a gloved hand. Gesture control is listed for Windows 7 and Windows 8. The source data lists one touch point for Windows XP, Mac OS and Linux, and four for Windows Vista. Confirm your operating system with the team before ordering.

Can the V652-TM run its own computer without an external PC?

Yes, through its OPS slot, which follows the NEC and Intel OPS standard. The slot is rated 16 V / 4 A with a maximum draw of 61 W. This removes the external PC and its USB cable from the desk. NEC also lists a slot-in PC option with Intel Core i5 or i7 processors, so confirm the exact module with SmartRooms Qatar.

Will the V652-TM cope with Qatar's summer heat?

The rated operating temperature is 0 to +35°C at 20 to 80% humidity. Summer temperatures in Qatar often pass 45°C, so install it in an air-conditioned room, away from direct sunlight and windows, with ventilation kept clear. It is not suited to open-air or uncooled spaces. Confirm the room's cooling during the site survey.

How readable is the screen in a bright room?

The panel has 96% light transmission, a 2% reflection rate and a 4000:1 typical contrast ratio. Brightness is 450 cd/m² at the shipment setting and 173 cd/m² in its Eco setting. These figures help in rooms with windows or strong overhead light, but test the screen in your actual room before committing to a large order.

Can it be wall-mounted in a classroom in Education City or an office in West Bay?

It uses a 400 x 400 mm VESA pattern with M8 holes and weighs 68.3 kg without its stand. A wall mount needs a suitable bracket and a wall that can carry this load. NEC lists the PDWHM-L as a wall mount accessory. SmartRooms Qatar offers a free site survey before installation, which checks wall structure, cable routes and power positions.

What connections does it have?

Video inputs are HDMI 1.3, DisplayPort and DVI-D, all with HDCP, plus a 15-pin D-sub and composite and component video on BNC. Audio comes in through a 3.5 mm jack. Control is available through LAN (100Mbit), RS232 and an IR remote. The box includes a DVI-D cable and a USB cable, and the DVI-D output can feed a second display.

Are speakers included, and how loud are they?

Integrated speakers are rated at 10 W + 10 W. NEC also lists optional speakers, SP-RM1, rated at 15 W + 15 W. Choose the optional pair if the room is large or you run lessons or presentations with audio. Ask SmartRooms Qatar to confirm the speaker option for your model when you request a quote.

Our school is buying several units. How do we order?

Send SmartRooms Qatar your list of rooms and the number of units. The team delivers to all 8 municipalities of Qatar, offers professional installation and usually issues quotations within one working day. Schools and government bodies can order by LPO or through Monaqasat tenders, and pay by bank transfer, cheque or purchase order. Lead times are confirmed in the quotation.
