Name: Newline IP Series 55 to 86-inch Interactive Display (Discontinued)
Brand: Newline
SKU: newline-ip-series
Availability: Discontinued

Overview

The Newline IP Series is a range of 55, 65, 75 and 86-inch interactive displays with 4K resolution, 20-point PCAP touch and a 178° viewing angle. The manufacturer has discontinued this series, so SmartRooms Qatar can quote a current equivalent or a compatible replacement. It suits Qatari organisations that already own these panels or need to match an existing meeting room, classroom or boardroom installation.

What the Newline IP Series is

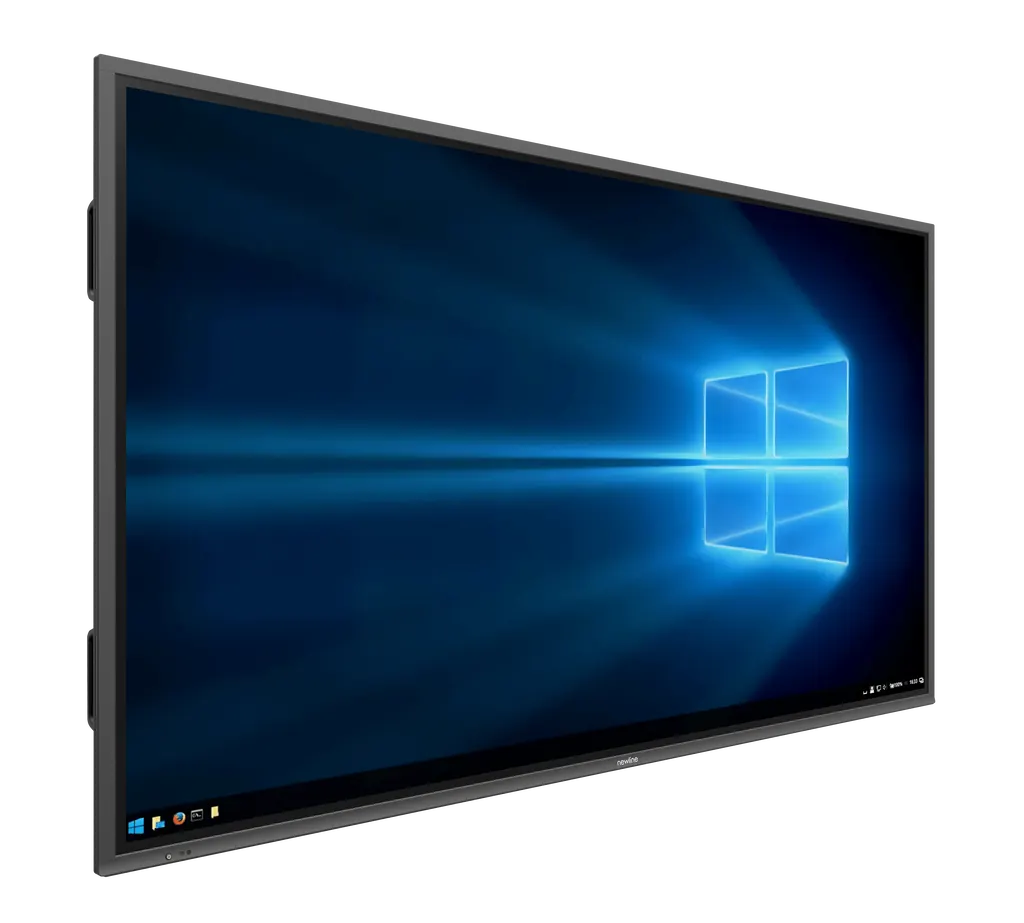

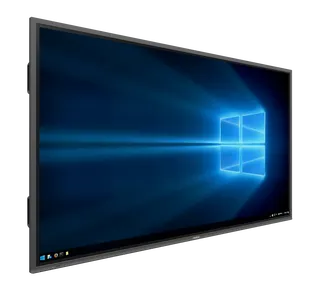

The Newline IP Series is a family of interactive flat panels sold as four models: the TT5519IP (55-inch), TT6519IP (65-inch), TT7519IP (75-inch) and TT8619IP (86-inch). Each uses a 4K panel with optically bonded, anti-glare tempered glass. The manufacturer has discontinued this series, so it is no longer offered as a current model. Organisations that already run these panels, and buyers comparing them with newer displays, can request a quote for a current equivalent or a compatible replacement.

Touch, picture and viewing performance

The touch layer is projected capacitive (PCAP) with 20 touch points, so several people can write or annotate at the same time. The 3840 x 2160 resolution gives 4K detail, and the surface hardness is rated above 7H. Brightness is listed at 370 nit with a dynamic contrast ratio of 4,000:1. The 178° viewing angle keeps the image readable for people seated at the sides of a room, and the 8 ms response time keeps on-screen writing responsive. The 55-inch to 75-inch models use 8-bit colour with FRC, which the datasheet gives as 1.07 billion colours, while the 86-inch model is listed at 10-bit.

Ports, software and connectivity

The rear panel carries two HDMI 2.0 inputs, a VGA input, YPbPr and CVBS video inputs, audio inputs, an AV output and a headphone socket. Touch data runs over a USB Type-B connection, and an RS232 port and a USB 2.0 port are also fitted. For computing, the panel has one OPS slot that supports 4K at 60Hz. The datasheet lists no built-in operating system, so Windows comes from an optional OPS PC. Newline Cast and Broadcast software supports Windows and allows wireless screen sharing from a participant's own device.

Where it fits in Qatar

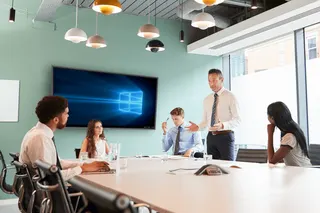

A 55-inch or 65-inch panel suits a huddle room or small meeting room in an office in West Bay or Msheireb, where a team in Doha joins a call with colleagues abroad. Their lighter weights of 28 kg and 36 kg make wall planning simpler.

The 75-inch and 86-inch models suit a lecture hall or training room in Education City, or a boardroom in Lusail. The 86-inch panel has a 1895 x 1066 mm display area and weighs 60 kg, so the wall and fixings must be checked before delivery.

Summer conditions in Qatar need planning. Temperatures can exceed 45°C, and the datasheet lists working temperatures of 0°C to 40°C and 0°C to 45°C. The source does not map each rating to a single model, so confirm the figure for the size you plan to buy. Keep the panel in an air-conditioned room, away from windows and open lobby entrances.

What to plan before you order

VESA pattern: 400 x 400 mm (55-inch), 600 x 400 mm (65-inch), 800 x 400 mm (75-inch and 86-inch)
Net weights of 28, 36, 49 and 60 kg, with gross weights up to 76 kg
Outline dimensions from 1290 x 764 x 73 mm to 1977 x 1150 x 86 mm
Maximum power of 350 W, 350 W, 400 W and 450 W, with 0.5 W standby
Mounting options: wall-mount or mobile stand

SmartRooms Qatar offers a free site survey before wall-mounting a large panel, professional installation across Qatar, and supply to all eight municipalities. Organisations buying several units can order by purchase order (LPO) or through government tenders. Products are covered by the manufacturer's warranty. Request a quote with your room size, mounting wall and number of panels, and we will send a quotation, usually within one working day.

Highlights

20-point PCAP touch with optically bonded anti-glare glass
3840 x 2160 resolution with a 178° viewing angle
Available in 55, 65, 75 and 86-inch models
OPS slot supports 4K at 60Hz for an optional OPS PC
Rear HDMI 2.0 inputs, VGA, USB Type-B touch and RS232
Discontinued by the manufacturer; quotes for current equivalents

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

11 specifications · Source: manufacturer · checked Oct 2026

IP series11

Model Name: TT5519IP | TT6519IP | TT7519IP | TT8619IP
Size: 55" | 65" | 75" | 86"
Display Area: 1211 x 682 mm | 1428 x 804 mm | 1650 x 928 mm | 1895 x 1066 mm
Weight: 28kg | 36kg | 49kg | 60kg
Resolution: 3840 x 2160 pixels
Touch Technology: PCAP
Touch Points: 20 Point
Viewing Angle: 178°
Embedded Operating System: N/A
RAM: 2GB DDR4 MCP
CPU: MIPS Advanced Multi-core CPU

Downloads

3 files from the manufacturer

PDF Datasheets Flyer_Newline_IP_202112.pdf 1.8 MB PDF Datasheets SpecSheet_Newline_IP_202112.pdf 940 KB PDF Manuals & guides Newline_QuickGuide_IP_201912.pdf 7.5 MB

Questions about IP Series

Is the Newline IP Series still available from the manufacturer?

No. The manufacturer has discontinued the IP Series, which covers the TT5519IP, TT6519IP, TT7519IP and TT8619IP. SmartRooms Qatar can quote a current equivalent or a compatible replacement, and we will check your wall space, mounting pattern and power supply before recommending one. Buyers who already own these panels can also ask us to match a replacement to an existing installation.

Which size suits a huddle room in an office in West Bay?

The 55-inch TT5519IP suits a huddle room or small meeting room. Its display area is 1211 x 682 mm, it weighs 28 kg and it uses a 400 x 400 mm VESA pattern. The 65-inch TT6519IP offers a 1428 x 804 mm display area at 36 kg for a slightly larger room. Send us the room dimensions and seating plan so we can match the panel to the space.

What are the main differences between the four models?

The models differ in size, weight and power. The 55-inch, 65-inch, 75-inch and 86-inch versions weigh 28 kg, 36 kg, 49 kg and 60 kg. Maximum power is 350 W for the first two, 400 W for the 75-inch and 450 W for the 86-inch. The 86-inch model is the only one listed with 10-bit colour, while the others use 8-bit with FRC. All four share 4K resolution, 370 nit brightness and 20-point touch.

Is the 86-inch model suitable for a boardroom in Lusail?

The 86-inch TT8619IP is built for large meeting rooms, with a 1895 x 1066 mm display area and 10-bit colour. It weighs 60 kg net and 76 kg gross, and it uses an 800 x 400 mm VESA pattern. Its 178° viewing angle helps people seated at the sides of a boardroom see the content clearly. Book a site survey before installation so the wall and fixings can carry the load.

How does the touch function work in a classroom?

The panel uses PCAP touch with 20 touch points, so several students can write or annotate at the same time. Input works with a Newline passive pen or a finger, and touch data connects to a computer through a USB Type-B port. The surface is anti-glare tempered glass with optical bonding, which suits a teaching room with bright lighting. Ask us about the touch cable and driver setup for your classroom computers.

Does the Newline IP Series run Windows on its own?

Not by itself. The datasheet lists the embedded operating system as N/A, with 2GB DDR4 RAM and a MIPS multi-core CPU. Windows comes from an optional OPS PC that fits the OPS slot, which supports 4K at 60Hz. Newline Cast and Broadcast software supports Windows, so plan the computing setup around the OPS PC or a laptop connected to the panel.

Can staff share laptop screens wirelessly on this panel?

Yes, through the Newline Cast software. The datasheet describes wireless screen sharing from any device, with control and annotation possible from the display or from the sharing device. In an organisation in Doha where staff move between floors, presenters can walk around the room while annotating. Confirm your network arrangements with our team before ordering, as the source does not describe network requirements in detail.

Will the panel cope with Qatar summer temperatures?

Install it indoors in an air-conditioned room. The datasheet lists working temperatures of 0°C to 40°C and 0°C to 45°C, with 20 to 80% relative humidity, without condensation. Summer temperatures in Qatar can exceed 45°C, so avoid placing the panel near windows, in lobbies with open doors or in unconditioned storerooms. Confirm the rating for your chosen size with the SmartRooms Qatar team before you request a quote.

What power does the panel need for a Qatar installation?

The datasheet lists a working voltage of AC 100-240 V at 50/60 Hz, which covers Qatar's 240 V, 50 Hz mains supply. Maximum consumption is 350 W for the 55-inch and 65-inch models, 400 W for the 75-inch and 450 W for the 86-inch, with standby draw of 0.5 W. Have a qualified electrician confirm circuit capacity and socket arrangements before installation, as the source does not specify the power cable or plug.

How should we plan wall mounting for an 86-inch panel?

The 86-inch model uses an 800 x 400 mm VESA pattern and has an outline of 1977 x 1150 x 86 mm. Its net weight is 60 kg and its gross weight is 76 kg, so the wall, bracket and fixings must be rated for that load. The datasheet lists wall-mount or mobile stand options. SmartRooms Qatar offers a free site survey before you wall-mount a large panel, followed by professional installation across Qatar.

Can a school order several units through a purchase order?

Yes. SmartRooms Qatar accepts purchase orders (LPOs) and government tenders, and payment can be made by bank transfer, cheque or purchase order. A school in Al Wakrah fitting out several classrooms with 55-inch or 65-inch models can send its room list, mounting walls and power points, and receive one quotation covering all the units. Products are covered by the manufacturer's warranty.
