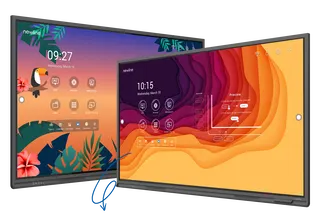

Name: Newline Lyra 98-inch 4K Interactive Display (Discontinued)
Brand: Newline
SKU: newline-lyra
Availability: Discontinued

Overview

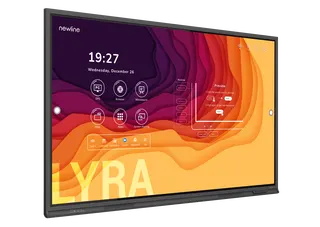

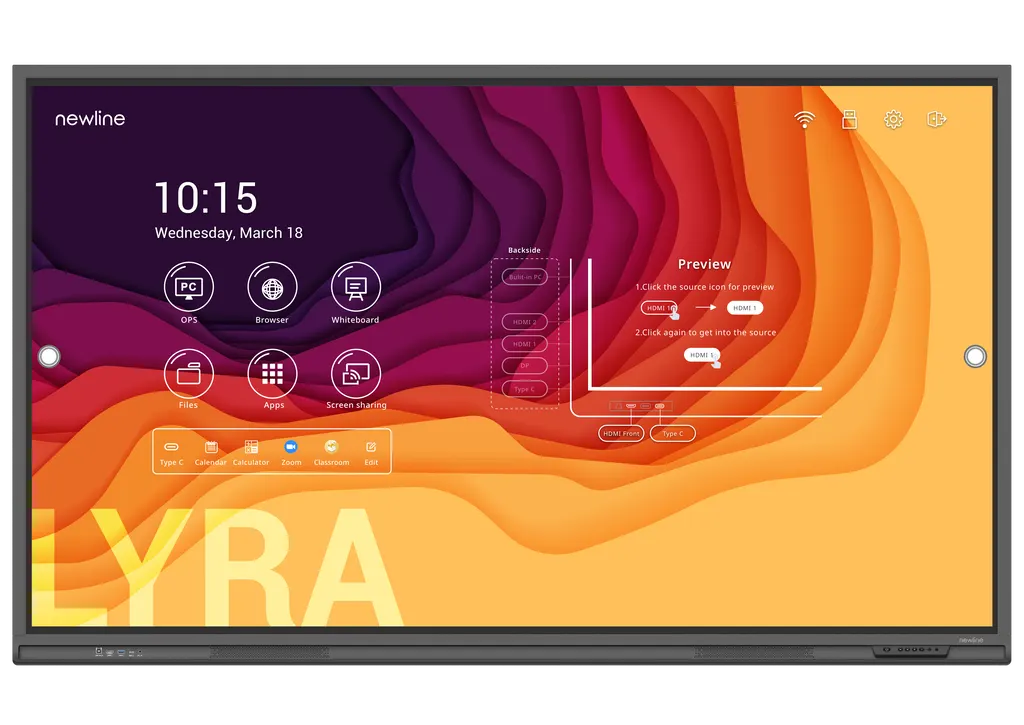

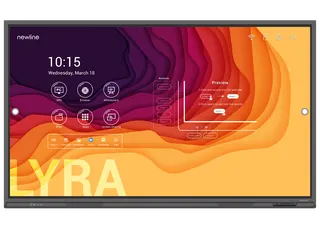

The Newline Lyra 98-inch is a 4K interactive display with infrared touch, two 20 W speakers, 400 cd/m² brightness and a built-in Android system. The manufacturer has discontinued this model, so it suits organisations that already own it, buyers comparing options, and anyone looking for a replacement. SmartRooms Qatar can quote a current equivalent sized for your room and wall.

What the Newline Lyra 98-inch is

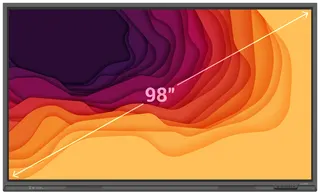

The Newline Lyra 98-inch is a large interactive display for lecture halls, classrooms and boardrooms where the whole room must read one screen. Its 3840 × 2160 panel offers 4K resolution across a 2161 × 1216 mm display area, with an LED backlight and a 178° viewing angle. The manufacturer has discontinued this model, so these details reflect its final specifications.

Display, touch and audio facts that matter

Brightness: 400 cd/m², with a contrast ratio of 5000:1 and a 6 ms response time.
Touch: infrared technology with 20 touch points on Windows and 20 on Android, rated at ±1 mm accuracy, with two passive pens listed.
Glass: anti-glare and anti-fingerprint tempered glass rated 7H, with a TÜV certified antimicrobial coating on the touch surface.
Sound: two 20 W speakers mounted at the front.

At 108 kg, the panel needs a wall mount rated for that load, and its listed VESA pattern is 800 × 600 mm. Outline dimensions are 2258.4 × 1344.8 × 122 mm excluding the wall mount, so measure the wall and the approach route first.

Connectivity and software

The front panel has a 65 W powered USB Type-C port, so a laptop can connect with one cable carrying data, audio, video and power. Other front ports include HDMI, USB Type-B touch, USB 3.0 Type-A and a microphone input, while the rear adds DisplayPort 1.2, gigabit RJ45, an OPS slot for a plug-in computer module and RS232. Wi-Fi 6 and Bluetooth 5.2 are built in as a replaceable module.

The panel runs Android 11 on an octa-core processor with 4 GB RAM and 64 GB storage, and its datasheet notes an upcoming upgrade to Android 13. Up to six user profiles, one admin and five users, keep each teacher's or team's apps and settings ready for the next session.

Where it fits in Qatar

A university lecture hall in Education City, where students in the back rows read the same 4K detail as those in front.
A West Bay boardroom where leaders review shared files with colleagues abroad, connecting laptops through the front USB-C port.
A corporate training centre in Msheireb where each trainer's profile keeps their setup between courses.

What to plan before you order

Start with the wall. A panel of this weight needs a structural check, correct fixings and room for installers to lift it safely. SmartRooms Qatar offers free site surveys that cover wall type, access through doors and lifts, and the position of power and network outlets.

The datasheet gives no operating temperature range, so confirm the room's air conditioning and window glazing with the SmartRooms Qatar team before installation, especially when outdoor summer temperatures exceed 45°C. Power draw is listed at 422 W in standard mode and below 0.5 W in standby.

Schools and public bodies can order through a purchase order, LPO or tender. Send the room list and quantity, and SmartRooms Qatar will quote supply, delivery across all eight municipalities of Qatar and professional installation.

Because this model is discontinued, request a quote for a current equivalent or a compatible replacement matched to your room size, wall and connectivity needs. Our team usually responds within one working day.

Highlights

98-inch 4K panel with 3840 × 2160 resolution
Infrared touch with 20 points on Windows and Android
400 cd/m² brightness and 5000:1 contrast ratio
Front 65 W powered USB Type-C port
Android 11 with six user profiles
Discontinued model; quote for a current equivalent

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

9 specifications · Source: manufacturer · checked Oct 2026

Display7

Screen Size: 98"
Display Area (mm): 2161 × 1216
Weight (kg): 108
Touch Technology: IR
Resolution: 3840 × 2160 (4K)
Viewing Angle: 178°
Backlight: LED

Audio & Video2

Sound: 20 W x 2
Camera: Optional

Downloads

7 files from the manufacturer

PDF Datasheets Lyra_Newline_Specsheet_05.23.pdf 811 KB PDF Manuals & guides RS-No-HDMI-Out-Quick-Start-Guide.pdf 1.7 MB PDF Manuals & guides User Manual Extended_Lyra(Q)_Newline_EN.pdf 5.3 MB PDF Manuals & guides User manual EN Q Series.pdf 1.9 MB URL Manuals & guides · Opens on manufacturer site Newline Assistant for LYRA URL Brochures · Opens on manufacturer site Education Brochure PDF Brochures · Opens on manufacturer site Newline_Insights_App_Store_Classroom_Tools_22_EN.pdf

Questions about Lyra

Is the Newline Lyra 98-inch still sold by the manufacturer?

No. Newline has discontinued the Lyra 98-inch, so it is no longer part of the manufacturer's current range. SmartRooms Qatar can still help if you already own one or need to replace it. We can quote a current equivalent or a compatible replacement that matches your room size, wall structure and connectivity needs, including a 98-inch size where the room requires it.

What resolution, brightness and viewing angle does the Lyra 98-inch offer?

It has a 3840 × 2160 (4K) resolution, 400 cd/m² brightness and a 5000:1 contrast ratio, with a 6 ms response time and a 178° viewing angle. The LED backlight covers a 2161 × 1216 mm display area. These figures suit a large lecture hall where students seated at the sides and back still need to read small text on the screen.

How does the touch work, and how many people can write at once?

The panel uses infrared touch with 20 touch points on Windows and 20 on Android, rated at ±1 mm accuracy. The specifications list two passive pens, and the surface responds to finger and fist input. Several people can write at once up to the touch point limit, which helps group work in a seminar or project meeting where more than one person needs the board.

Can teachers at a school in Al Rayyan share one panel and keep their own settings?

Yes. The Lyra supports six user profiles: one admin and five users. Each profile can save a home screen, apps and personal settings for a teacher, a class, a team or a department. A school in Al Rayyan sharing one panel between subject teachers can switch profiles rather than reconfigure the screen every lesson. The unit also includes an Admin Mode for the settings menu.

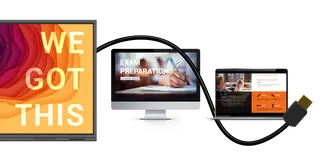

How do I connect a laptop to the Lyra 98-inch?

Use the front USB Type-C port, which is rated at 65 W powered. One cable can carry video, data, audio and charging power from a laptop that supports USB-C video output. The front also has an HDMI input, and the rear adds two HDMI inputs and a DisplayPort 1.2 input for other sources. Connecting a second source lets a presenter switch devices without unplugging the first.

Is a camera included, and can I add a computer module?

A camera is listed as optional, so it is not part of the standard setup. The panel has a camera slot. It also has an OPS slot at the rear that accepts a compatible plug-in OPS computer module. An OPS module runs a computer inside the display instead of a separate PC on the desk, but you should confirm compatibility with the panel before buying one.

What does the 98-inch panel need for wall mounting?

The panel weighs 108 kg net and lists an 800 × 600 mm VESA pattern. Outline dimensions are 2258.4 × 1344.8 × 122 mm excluding the wall mount. You will need a wall that can carry the weight, a mount rated for it and a trained lifting team. SmartRooms Qatar offers free site surveys to check wall type, door and lift access and cable routes before installation is arranged.

Would a 98-inch panel suit a university lecture hall in Education City?

Yes, provided the room is large enough to view the screen comfortably from distant seats. The 2161 × 1216 mm display area suits halls where students sit far from the front. The 4K resolution keeps tables, diagrams and small labels legible across the room. Before ordering, confirm sightlines, the mounting wall and the power position with a site survey.

Is it suitable for a West Bay boardroom that meets colleagues abroad?

It suits a boardroom where a large group needs one shared screen. The front USB-C port and the rear gigabit RJ45 port help connect laptops and a wired network, and Wi-Fi 6 with Bluetooth 5.2 is built in. Because 98 inches is large, the table and seating layout will shape the decision. Video calls need a camera and a conferencing setup, which we can discuss within the quotation.

How should the room be prepared for summer heat in Doha?

The source data does not list an operating temperature range for this model, so we cannot state one. Outdoor temperatures in Doha can exceed 45°C in summer, so check that the room is air-conditioned and that sun-facing window glazing does not heat the area around the panel. The SmartRooms Qatar team can confirm the environment with you before a replacement is specified.

How much power does the 98-inch panel draw?

The datasheet lists 422 W in standard mode and below 0.5 W in standby for the 98-inch size. These figures help you estimate circuit load and daily running consumption for a room. The rear I/O also lists a power output connection rated at 180 W. A qualified electrician should confirm the circuit before the panel is connected.

How can a school or ministry order several units through an LPO or tender?

SmartRooms Qatar supports purchase orders (LPOs) and government tenders, including Monaqasat. For several 98-inch units, send the room list, wall details and quantity, and the team will prepare a quotation covering supply, delivery to all eight municipalities, professional installation and your payment method: bank transfer, cheque or purchase order. Because this model is discontinued, the quotation will cover a current equivalent or compatible replacement.
