Newline NAOS IP (Discontinued) · Replacements in Qatar

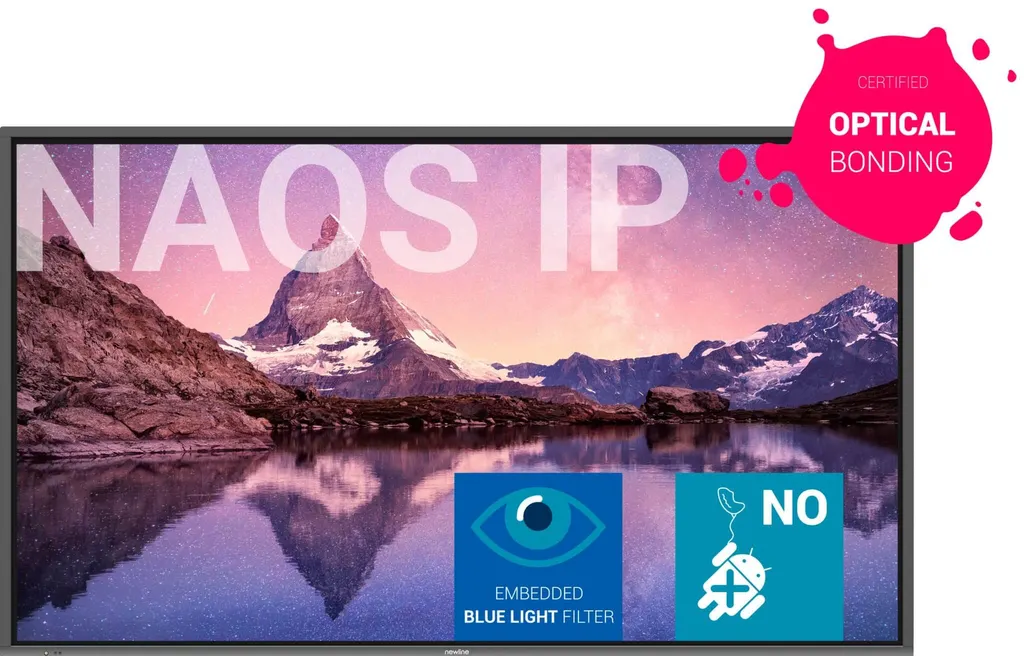

Name: Newline NAOS IP 55 to 86-inch Interactive Flat Panel
Brand: Newline
SKU: newline-naos-ip
Availability: Discontinued

Overview

The Newline NAOS IP is a discontinued interactive display series from 55 to 86 inches, built around a 4K P-Cap touch layer, optically bonded glass and a 178° viewing angle. It runs Windows through an OPS port for an optional on-board PC. Qatar buyers who already own one, or are comparing options, can request a quote for a current equivalent or compatible replacement.

What the Newline NAOS IP is

The Newline NAOS IP is a discontinued interactive display series made for corporate meeting spaces. It comes in four screen sizes, 55, 65, 75 and 86 inches, and pairs a 4K panel with projected capacitive (P-Cap) touch behind optically bonded glass. The manufacturer has discontinued this model, so this page is written for organisations that already run NAOS IP panels, buyers comparing them with newer models, and anyone searching for a replacement.

Specifications that matter for planning

Every size shares a 3840 x 2160 resolution, an LED backlight, a 178° viewing angle and P-Cap touch with 20 points on Windows. Brightness is rated at 400 cd/m² or higher, the dynamic contrast ratio is 4000:1, and the rated lifetime is 50,000 hours or more. The size-dependent figures are listed below.

55-inch: display area 1211 x 682 mm, net weight 28 kg, VESA 400 x 400 mm
65-inch: display area 1428 x 804 mm, net weight 36 kg, VESA 600 x 400 mm
75-inch: display area 1650 x 928 mm, net weight 49 kg, VESA 800 x 400 mm
86-inch: display area 1895 x 1066 mm, net weight 60 kg, VESA 800 x 400 mm

Security and the Windows environment

The series has no functional Android layer, which the manufacturer presents as a security advantage. Its OPS port, rated 4K at 60 Hz, accepts an optional on-board PC, so a full Windows desktop and its applications run on the panel itself rather than on a laptop at the table. Combined with Newline's interactive ecosystem tools for Windows, IT teams can keep network access under control while staff still use the display easily.

Where it fits in Qatar

A 55 or 65-inch panel suits a small meeting room in West Bay or Msheireb, where a team reviews documents with colleagues abroad. An 86-inch panel suits a boardroom in Lusail or a lecture space at Education City, where people sit further from the screen and need clear text. A school in Al Wakrah fitting out classrooms should settle the size and wall position before ordering, so installation runs without rework.

What to plan before ordering

Wall or stand: the 86-inch model weighs 60 kg net, so survey the wall before fixing.
Power: the working voltage is AC 100-240 V at 50/60 Hz, which covers Qatar's 240 V supply. Standby draw is below 0.5 W.
Environment: the source data gives no operating temperature range, so confirm placement near windows or lobbies with the SmartRooms Qatar team, given summer heat above 45°C and dust storms.
Replacement: because the model is discontinued, compare a current equivalent before committing.

Request a quote from SmartRooms Qatar. The team offers a free site survey, professional installation and quotations usually within one working day, so you can compare this model's fit with a current replacement before you commit.

Highlights

4K UHD resolution of 3840 x 2160 across 55 to 86-inch sizes
Projected capacitive touch with 20 points on Windows
Optically bonded, anti-glare tempered glass with anti-fingerprint coating
178° viewing angle with LED backlight
OPS port supports an optional on-board PC at 4K 60 Hz
No functional Android layer, positioned for enterprise security

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

7 specifications · Source: manufacturer · checked Oct 2026

General7

Size: 55'' | 65" | 75" | 86"
Display area (mm): 1211 x 682 | 1428 x 804 | 1650 x 928 | 1895 x 1066
Touch Technology: P-Cap | P-Cap | P-Cap | P-Cap
Resolution: 4K | 4K | 4K | 4K
Viewing Angle: 178° | 178° | 178° | 178°
Backlight: LED | LED | LED | LED
Weight (Kg): 28 | 36 | 49 | 60

Downloads

5 files from the manufacturer

PDF Datasheets NaosIP_Specsheet_Newline_Website_EN_20.pdf 1.8 MB PDF Datasheets · Opens on manufacturer site NaosIP_Specsheet_Newline_Website_EN_20_3fe0b3.pdf PDF Manuals & guides IP-SERIES-QUICK-GUIDE-USER.pdf 8.2 MB PDF Manuals & guides IP-User-manual.pdf 3.9 MB PDF Manuals & guides NaosIP_User-manual_Newline_2021.pdf 3.8 MB

Questions about NAOS IP

Has Newline discontinued the NAOS IP?

Yes. Newline has discontinued the NAOS IP series, so this page covers the model for organisations that already own it, buyers comparing options, and anyone seeking a replacement. Request a quote and the SmartRooms Qatar team will suggest a current equivalent or compatible replacement, with lead time confirmed in the quotation based on stock.

Which screen sizes did the NAOS IP come in?

The series came in 55, 65, 75 and 86 inches. All four use a 16:9 aspect ratio and a 4K resolution of 3840 x 2160. The display area is 1211 x 682 mm on the 55-inch model and 1895 x 1066 mm on the 86-inch model, with the 65-inch and 75-inch models falling between them.

Which size suits a small meeting room in West Bay?

A 55-inch or 65-inch panel suits a small meeting room in West Bay or Msheireb, where a team of four to eight reviews documents with colleagues abroad. The 65-inch model has a 1428 x 804 mm display area and a net weight of 36 kg, which keeps wall fixing manageable for a standard office wall.

Is an 86-inch model right for a boardroom or lecture hall?

Yes, when attendees sit at a distance and need clear text. The 86-inch model has a 1895 x 1066 mm display area and a net weight of 60 kg, so a boardroom in Lusail or a lecture space at Education City should have its wall checked before installation. SmartRooms Qatar offers free site surveys for this purpose.

How does the touch layer work, and how many touch points are supported?

The panel uses projective capacitive (P-Cap) touch with optical bonding, anti-glare tempered glass and an anti-fingerprint coating. Windows supports 20 touch points, and a fine passive pen is listed as the writing pen. The manufacturer describes the touch response as instant, which suits quick whiteboarding in busy meetings.

Can it run Windows without a separate computer?

The series is optimised for Windows and has an OPS port rated 4K at 60 Hz. Adding an optional OPS PC lets the display run a Windows desktop and its applications directly, so presenters do not need a laptop at the table. The manufacturer says the series has no functional Android layer.

Is it suitable for a corporate network with strict security rules?

The NAOS IP is positioned for enterprise security, with a Windows-based environment and no functional Android layer. For an office in the Industrial Area or central Doha, ask your IT team to review the OPS PC configuration, account policies and network access before rollout. SmartRooms Qatar can quote the hardware and advise on the setup.

Which ports are on the back of the panel?

Inputs include two HDMI 2.0 ports (4K at 60 Hz), one VGA port (2K at 60 Hz), a USB-B 2.0 touch port, a USB-A 2.0 port, a VGA audio input, a YPbPr input and an RS232 serial port. Outputs are a line out and an AV out. A school in Al Rayyan can connect a teacher laptop by HDMI and link the touch function through USB-B.

How is it mounted, and what VESA pattern does it need?

VESA mounting is 400 x 400 mm on the 55-inch model, 600 x 400 mm on the 65-inch model and 800 x 400 mm on the 75-inch and 86-inch models. Net weights range from 28 kg to 60 kg, so wall brackets must be rated for the chosen size. A hotel lobby in The Pearl should have a site survey first, then professional installation.

What power supply does it need, and does it suit Qatar?

Working voltage is AC 100-240 V at 50/60 Hz, with a maximum current of 3.0 A, which covers Qatar's 240 V, 50 Hz supply. Rated consumption is up to 190 W on the 55-inch model and up to 400 W on the 86-inch model, and standby draw is below 0.5 W.

Can I place it near a window or in a hot lobby in summer?

The source data does not give an operating temperature range, so suitability for hot or dusty locations cannot be confirmed from the specification alone. Summer temperatures in Doha can exceed 45°C, so confirm the environment with the SmartRooms Qatar team before choosing a lobby, atrium or window-facing room.

Can a school or government office order several units on a purchase order?

Yes. SmartRooms Qatar accepts purchase orders (LPOs) and government tenders, including Monaqasat, and accepts payment by bank transfer, cheque or purchase order. Send the LPO with your quotation request, and delivery covers all eight municipalities of Qatar. Confirm the mix of sizes before issuing the order.
