Newline PTC Series (Discontinued) · Replacements in Qatar

Name: Newline PTC Series 65 to 86-inch Interactive Collaboration Display
Brand: Newline
SKU: newline-ptc-series
Availability: Discontinued

Overview

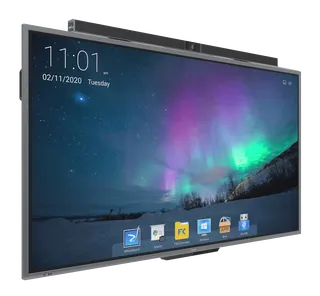

The Newline PTC Series is a discontinued all-in-one interactive display sold in 65-inch (TT-6519PTC), 75-inch (TT-7519PTC) and 86-inch (TT-8619PTC) sizes. Each has a 3840 x 2160 panel, optically bonded anti-glare glass, up to 20 P-CAP touch points, a built-in camera, a microphone array and a soundbar. Organisations in Qatar that run these units, or need a comparable replacement, can request a quote for a current equivalent.

What the Newline PTC Series offers

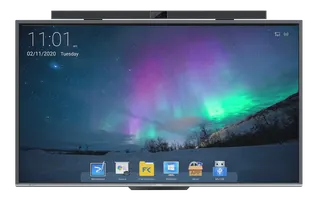

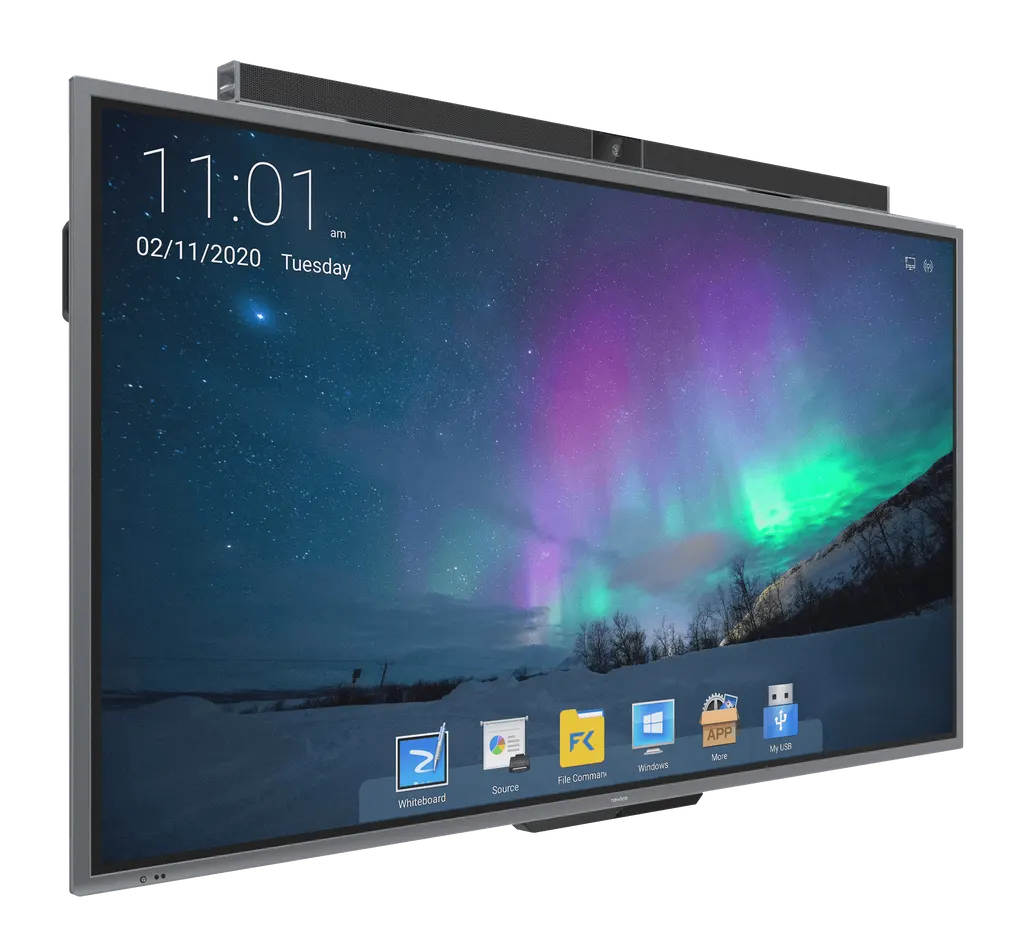

The Newline PTC Series is an all-in-one interactive display that combines a 4K panel, a camera, a microphone array and a soundbar in one unit. It is sold in three sizes: the 65-inch TT-6519PTC, the 75-inch TT-7519PTC and the 86-inch TT-8619PTC. The manufacturer has discontinued this range, so this page is written for organisations that already run these panels, buyers comparing them with newer displays, and anyone who needs a replacement.

Specifications that shape the buying decision

Panel: 3840 x 2160 resolution, LED backlight with a blue light filter, 370 nit brightness, 4000:1 dynamic contrast and 8 ms response time.
Viewing: 178° viewing angle through optical bonding, which the manufacturer says reduces reflection and parallax.
Touch: P-CAP touch with up to 20 points, operated by stylus or finger, on anti-glare tempered glass rated 7H.
Collaboration: 1920 x 1080 camera with a 90° viewing angle, a four-way microphone array with 8 m pickup distance, and a soundbar mounted on top.
Computing: Android 8.0 with 4GB RAM and 32GB ROM, an OPS slot for an optional OPS PC, and built-in Wi-Fi on 2.4 GHz and 5 GHz.

Where it fits in Qatar

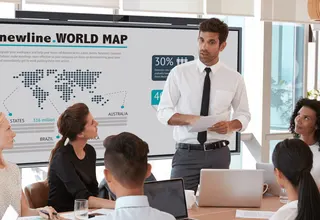

In a boardroom in West Bay or Msheireb, the 86-inch model gives a large shared surface for annotation, while a remote team abroad appears through the built-in camera. A 65-inch unit suits smaller meeting rooms in Al Sadd or the Industrial Area, where the microphone array picks up voices across the table without extra hardware. In Education City or Al Rayyan, the 75-inch size works well in seminar rooms, where wireless screen sharing lets students present from their own devices.

What to plan before installation

Net weights are approximately 40 kg for the 65-inch, 50 kg for the 75-inch and 61 kg for the 86-inch model, so check the wall structure before mounting. The panel supports wall mounting or a mobile stand, with VESA positions of 600 x 400 mm and 800 x 400 mm. Outline dimensions run from 1509 x 865 x 86 mm for the 65-inch to 1997 x 1150 x 86 mm for the 86-inch. Ports include two HDMI inputs, a VGA input, an HDMI output, USB-C, three USB 3.0 ports, RJ45 and RS232. The stated working range is 0 to 40°C, so plan room cooling carefully, especially for rooms that receive heat through windows. SmartRooms Qatar offers a free site survey before installing large panels.

Next steps for a replacement or compatible quote

If you own a PTC Series display and need a matching unit, send us the model code, the room size and the type of wall or stand you have. SmartRooms Qatar will prepare a quotation for a current equivalent or compatible replacement, usually within one working day. We accept purchase orders and LPOs, government tenders through Monaqasat, and deliver to all eight municipalities of Qatar. Request a quote today and we will match the display to your room.

Highlights

3840 x 2160 4K panel with 178° viewing angle
Up to 20 P-CAP touch points for stylus or finger
Built-in 1920 x 1080 camera and four-way microphone array
Android 8.0 with 4GB RAM, 32GB ROM and OPS slot
Wall-mount or mobile stand; net weight 40 to 61 kg
Discontinued by manufacturer; we quote current replacements

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

11 specifications · Source: manufacturer · checked Oct 2026

PTC series11

Model Name: TT-6519PTC | TT-7519PTC | TT-8619PTC
Size: 65" | 75" | 86"
Display Area: 1428.48 x 803.52 mm | 1650.24 x 928.26 mm | 1895.04 x 1065.96mm
Weight: 40kg | 50kg | 61kg
Resolution: 3840 x 2160 pixels
Touch Technology: P-CAP
Touch Points: Up to 20 Points
Viewing Angle: 178°
Embedded Operating System: Android 8.0
RAM: 4GB
CPU: Hisilicon 811 ( A73 x 2 + A53 x 2 )

Downloads

4 files from the manufacturer

PDF Datasheets SpecSheet_Newline_PTC_202112.pdf 825 KB PDF Manuals & guides PTC-User-Manual-V2.2-Final.pdf 6.0 MB PDF Brochures Brochure_Corporate_FXAP_20191030.pdf 1.9 MB PDF Other documents PTC_FAQ.pdf 1.2 MB

Questions about PTC Series

Is the Newline PTC Series still available?

No. The manufacturer has discontinued the PTC Series, so the TT-6519PTC, TT-7519PTC and TT-8619PTC are no longer offered as a current range. If you need a replacement for a room that already uses one of these displays, send the model code and room details to SmartRooms Qatar. We will prepare a quotation for a current equivalent or compatible replacement, usually within one working day.

Which sizes were in the PTC Series, and what are their display areas?

The range had three models. The 65-inch TT-6519PTC has a display area of 1428.48 x 803.52 mm, the 75-inch TT-7519PTC measures 1650.24 x 928.26 mm, and the 86-inch TT-8619PTC measures 1895.04 x 1065.96 mm. All three use a 16:9 ratio and a 3840 x 2160 resolution. The 86-inch version suits lecture halls and large boardrooms, while the 65-inch suits smaller meeting rooms. Check the model code on your existing unit before requesting a replacement.

How bright is the panel, and will it work in a room with strong daylight?

The panel is rated at 370 nit brightness, with 4000:1 dynamic contrast and an 8 ms response time. It uses an LED backlight with a blue light filter, and the optically bonded anti-glare glass reduces reflections and parallax. In rooms with strong sunlight through windows, compare these figures with other displays when requesting a quote, and check the window positions relative to the screen during the site survey.

Does it have a built-in camera and microphones for video calls?

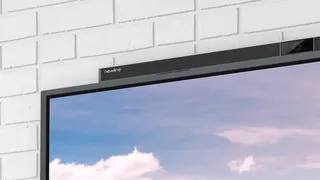

Yes. The unit includes a 1920 x 1080 CMOS camera with a 90° viewing angle, positioned below the front centre, and a four-way microphone array with an 8 m pickup distance. The microphones support echo cancellation, noise suppression and beamforming. The soundbar mounted on top has a stated transmission range of 12 m. For a boardroom in West Bay connecting to teams abroad, the screen, camera and audio all sit in one unit.

Can it run video conferencing software without a separate PC?

The display runs Android 8.0 with 4GB RAM and 32GB ROM, so Android apps such as the whiteboard, calculator, calendar, mail and browser work without an extra computer. For Windows conferencing software, the manufacturer offers an optional OPS PC that fits the OPS slot, which supports 4K at 60Hz or 30Hz. The panel can switch between its built-in system and the OPS PC. Confirm that your specific Windows application runs with your IT team before installation.

Which connections are available for laptops and presentation sources?

The rear panel has two HDMI inputs, one VGA input, one USB-C port, an HDMI output, an audio input and a microphone input. USB ports include one USB 3.0 touch port, two public USB 3.0 ports and one USB 2.0 port for Android. There is also an RJ45 network port, an RS232 control port, an SPDIF output and an earphone output. Built-in dual-band Wi-Fi can run a hotspot at the same time, so laptops can share their screen without cables.

How does the touch work, and can several people write at once?

The glass uses P-CAP touch with up to 20 touch points, and it responds to a stylus or a finger. The anti-glare tempered glass has a 7H surface hardness and is optically bonded to the panel. Multiple touch points let several presenters annotate at once in a classroom or workshop. Ask the SmartRooms Qatar team to confirm the touch set-up for your room before ordering several units for a school or training centre.

Can a 75-inch or 86-inch panel be wall-mounted in a Qatari building?

Yes. The PTC Series supports wall mounting or a mobile stand, with VESA positions of 600 x 400 mm and 800 x 400 mm. Net weights are approximately 50 kg for the 75-inch and 61 kg for the 86-inch model, so the wall structure and bracket rating should be checked before installation. SmartRooms Qatar offers free site surveys, which is the right step before mounting a heavy panel in a lecture hall or boardroom in Lusail or Al Khor.

What operating and storage temperatures apply, given Qatar's summers?

The stated working range is 0 to 40°C at 20 to 80% humidity, non-condensing, and the storage range is -10 to 45°C. Summer temperatures in Qatar can exceed 45°C, so the room needs reliable air conditioning rather than relying on the display's tolerance. Confirm the installation position with our team before installation, especially near windows or in spaces that heat up during the day.

Can a government ministry or school order several units through a purchase order?

Yes. SmartRooms Qatar accepts purchase orders and LPOs, government tenders including Monaqasat, and payment by bank transfer, cheque or purchase order. For example, a school in Al Wakrah refitting several classrooms can send one request listing the room sizes, so the quotation covers the right mix of 65-inch, 75-inch and 86-inch units. Because the range is discontinued, the quotation will be for a current equivalent or compatible replacement.

Does the product come with a warranty?

Products are covered by the manufacturer's warranty. The source data does not state the warranty length or terms for the PTC Series, so this page does not give a period. When you request a quote, ask our team to confirm the warranty terms that apply to the current equivalent we propose for your room.

Is there an Arabic-language interface?

The available data does not list the interface languages, so we cannot confirm Arabic menu support. The built-in Android environment includes apps such as the whiteboard, calculator, calendar, mail, an office suite, sign-in and voting tools, and a browser. If your office works in Arabic and English together, ask SmartRooms Qatar to confirm language support for the replacement model before you place an order.
