Newline TRUTOUCH VN Series (Discontinued)

Name: Newline TRUTOUCH VN Series 65 to 86-inch Interactive Display
Brand: Newline
SKU: newline-trutouch-vn
Availability: Discontinued

Overview

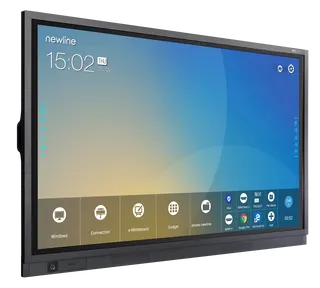

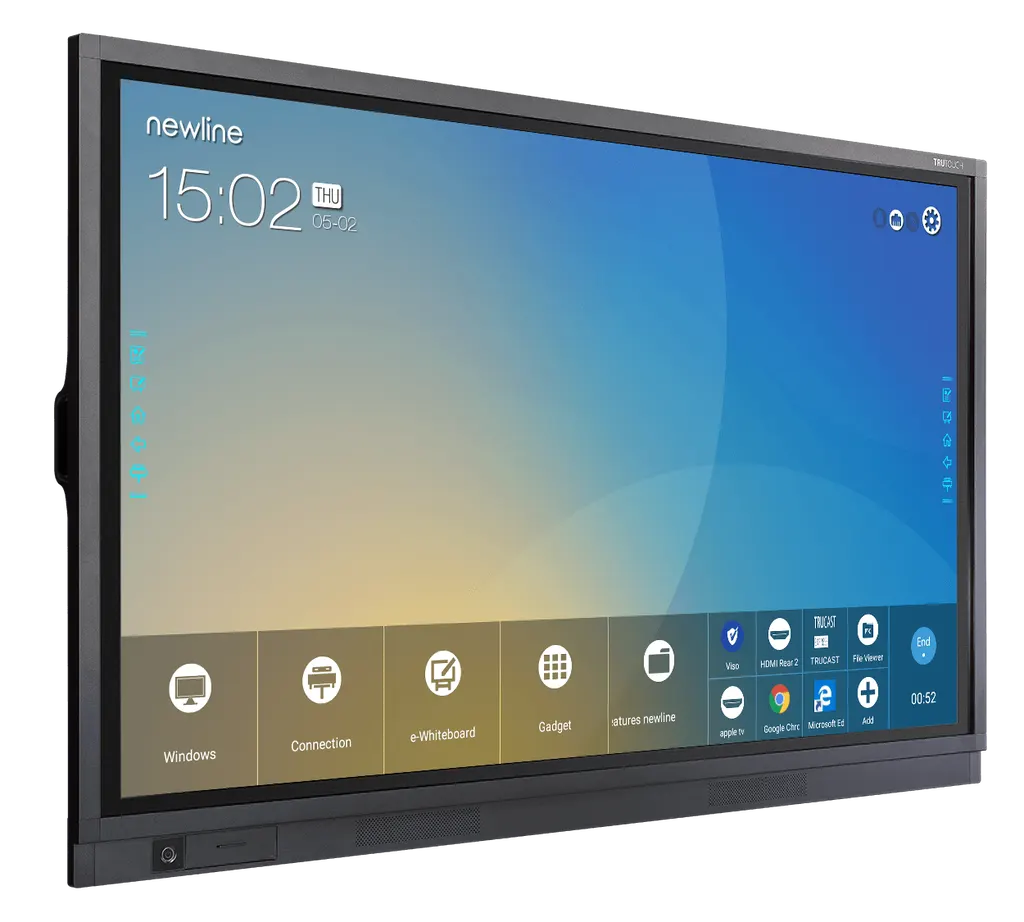

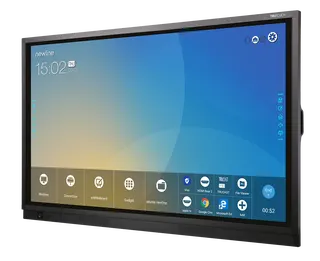

The discontinued Newline TRUTOUCH VN Series covers 65, 75 and 86-inch interactive touch displays: TT-6518VN, TT-7518VN and TT-8618VN. Each model pairs a 4K UHD optically bonded panel with infrared touch, up to 20 touch points in Windows and an embedded Android system. It suits meeting rooms, boardrooms and classrooms in Qatar that already run these displays or are comparing them with newer panels. Request a quote for a current equivalent.

What the TRUTOUCH VN Series is

Newline's TRUTOUCH VN Series is an interactive flat panel range that the manufacturer has discontinued. It is sold as three models: the TT-6518VN (65-inch), TT-7518VN (75-inch) and TT-8618VN (86-inch). Each uses a 3840 x 2160 pixel LCD panel with LED backlight, infrared touch and an embedded Android 5.0.1 system, so meeting tools can run on the display without a separate computer. This page is written for organisations that already run these models, buyers comparing them with newer panels, and anyone looking for a replacement.

Touch, image and writing performance

The touch layer uses infrared sensing with optical bonding and an anti-glare tempered glass surface rated above 7H. Optical bonding reduces reflections and parallax, which matters when people write close to the glass during a meeting. The panel supports up to 20 touch points in Windows and 10 in Android, and accepts both a stylus and a finger.

Brightness: 370 nit after glass
Dynamic contrast: 4000:1
Viewing angle: 178 degrees, so people seated across the room still see the screen
Response time: 8 ms
Rated life: 50,000 hours

Where it fits in Qatar

A 65-inch panel suits a classroom or huddle room, such as a private school room in Al Wakrah being fitted out with interactive teaching tools. The 75-inch model suits a ministry or corporate meeting room in Msheireb, where Doha staff connect with colleagues abroad. The 86-inch model suits a boardroom in West Bay or a lecture hall in Education City, where the wider display area helps students at the back follow annotations.

Connectivity, power and installation planning

The front panel offers one HDMI 1.4 input (4K at 30 Hz), a touch USB port and two public USB 2.0 ports. Other connections include an HDMI output, line out, SPDIF, USB 3.0, RS232, two RJ45 (in/out) ports, an OPS slot supporting 4K at 60 Hz and a DC 5V-2A output. An optional Wi-Fi dongle adds 802.11 a/b/g/n/ac dual-band wireless, and an optional OPS PC is listed. The panel has no built-in microphone.

Power: AC 100-240 V, 50/60 Hz, which covers Qatar's 240 V, 50 Hz supply
Operating temperature: 0 to 40 degrees C, so install in air-conditioned rooms
Net weight: 39 kg, 50.5 kg and 62.5 kg
Mounting: wall-mount or mobile stand

Qatar summers regularly pass 45 degrees C, so confirm the room's cooling capacity before installation. Because these panels are heavy, a free site survey before wall-mounting is a sensible first step.

Ordering a current equivalent

Because the TRUTOUCH VN Series is discontinued, most buyers will want a quote for a current equivalent or compatible replacement rather than the original model. Send the model number, screen size, room type and quantity to SmartRooms Qatar. The team can arrange delivery to all eight municipalities of Qatar, professional installation, and supply against purchase orders or government tenders. The panels are covered by the manufacturer's warranty. Request a quote and we will respond, usually within one working day.

Highlights

Discontinued Newline series in 65, 75 and 86-inch sizes
3840 x 2160 4K resolution with infrared touch
Optically bonded anti-glare glass with 178-degree viewing angle
Up to 20 touch points in Windows, 10 in Android
Android 5.0.1 with 2GB RAM and 8GB ROM
OPS slot (4K at 60 Hz) and two RJ45 in/out ports

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

11 specifications · Source: manufacturer · checked Oct 2026

VN series11

Model Name: TT-6518VN | TT-7518VN | TT-8618VN
Size: 65" | 75" | 86"
Display Area: 1429.5 x 804.5 mm | 1651 x 929 mm | 1897 x 1066 mm
Weight: 39kg | 50.5kg | 62.5kg
Resolution: 3840 x 2160 pixels
Touch Technology: Infrared touch
Touch Points: 20 Points in Windows / 10 Points in Android
Viewing Angle: 178°
Embedded Operating System: Android 5.0.1
RAM: 2GB
CPU: Cortex A53 x 4 1.4GHz

Downloads

9 files from the manufacturer

PDF Datasheets Flyer_Newline_VN-Series_202105.pdf 1.5 MB PDF Datasheets SpecSheet_Newline_VN_202105.pdf 1.1 MB PDF Datasheets VN-Series-English.pdf 5.0 MB PDF Manuals & guides Quick-Guide-Newline-Assistant.pdf 1.3 MB PDF Manuals & guides VN-Interactive-Display-User-Manual-V1.0-20180925.pdf 4.0 MB PDF Manuals & guides VN-Quick-Start-Manual-V3.0.pdf 2.6 MB PDF Manuals & guides VN-User-manual-V3.0.pdf 6.1 MB URL Manuals & guides · Opens on manufacturer site Newline Assistant for VN Series PDF Other documents VN-series-Parts-List.pdf 648 KB

Questions about TRUTOUCH VN Series

What is the Newline TRUTOUCH VN Series?

It is a range of interactive touch displays built on a 4K UHD (3840 x 2160) LCD panel with infrared touch and an embedded Android 5.0.1 system. The range covers three models: the TT-6518VN at 65 inches, the TT-7518VN at 75 inches and the TT-8618VN at 86 inches. Staff can annotate, share files and run meeting tools directly on the screen, which suits meeting rooms, boardrooms and classrooms.

Has Newline discontinued the TRUTOUCH VN Series?

Yes. The manufacturer has discontinued the TRUTOUCH VN Series. Organisations that already run these models, or are comparing them with newer panels, can ask SmartRooms Qatar for a quote on a current equivalent or compatible replacement. Share the model number and quantity so the team can match size, mounting and connectivity.

Which size suits a room in Qatar: 65, 75 or 86 inches?

Match the size to viewing distance and room use. The 65-inch TT-6518VN, with a 1429.5 x 804.5 mm display area and 39 kg net weight, suits a small classroom or huddle room, such as a private school room in Al Wakrah. The 75-inch TT-7518VN (1651 x 929 mm, 50.5 kg) suits a ministry meeting room in Msheireb. The 86-inch TT-8618VN (1897 x 1066 mm, 62.5 kg) suits a West Bay boardroom or lecture hall.

How many touch points does it support, and does it work with Windows and Android?

The series supports up to 20 touch points in Windows and 10 in Android, using infrared touch with a stylus or finger. The display runs Android 5.0.1 with 2GB RAM and 8GB ROM. The specifications also list an optional OPS PC, so confirm that option when requesting a quote if your sessions need Windows touch with all 20 points.

Does the display have a built-in microphone or camera?

No. The specifications list the built-in microphone as not available, so plan for an external microphone and camera if video calls are part of the room's use. The panel has two front-facing 15 W speakers. Request a quote to have the team recommend compatible accessories for the room alongside the panel.

Can it be installed in a hot or dusty area in Qatar, such as a lobby or near windows?

Plan for air-conditioned indoor rooms. The rated operating temperature is 0 to 40 degrees C at 20 to 80 percent relative humidity, and Qatar summers can exceed 45 degrees C. Keep the panel out of direct sunlight, away from unfiltered outdoor air and dust, and confirm the room's cooling before ordering. The storage range is 15 to 55 degrees C.

What power does it need, and is it suitable for Qatar's mains supply?

The listed working voltage is AC 100 to 240 V at 50/60 Hz, which includes the 240 V, 50 Hz supply used in Qatar. Maximum power is 250 W for the 65-inch model, 400 W for the 75-inch and 450 W for the 86-inch, with 0.5 W standby on each. Review socket and circuit arrangements with your electrical contractor during installation.

Which ports are available for connecting a laptop and other sources?

The front panel has one HDMI 1.4 input (4K at 30 Hz), one USB touch port and two public USB 2.0 ports. Other connections include an HDMI output, line out, SPDIF, USB 3.0, RS232 and two RJ45 in/out ports. Check your laptop output before connecting, because the front HDMI input is limited to 4K at 30 Hz.

Can I add a PC or share screens wirelessly from staff devices?

Yes, through optional modules. The panel has an OPS slot supporting 4K at 60 Hz, and an optional OPS PC is listed. Wireless sharing requires the optional Wi-Fi dongle supporting 802.11 a/b/g/n/ac dual-band (2.4G/5G). Newline Cast supports Windows and Android, and Newline Display Management supports Android. Specify the options you need when requesting a quote.

How much wall space and mounting support does the 86-inch model need?

The 86-inch TT-8618VN has outline dimensions of 2018 x 1211 x 104 mm, a 62.5 kg net weight and an 81.5 kg gross weight (plus or minus 2 kg). It can be wall-mounted or fitted to a mobile stand. The listed VESA patterns are 600 x 400 mm and 800 x 400 mm, so confirm the pattern for your bracket. Book a free site survey to check the wall and access route before installation.

Can a school or government office buy several units on a purchase order?

Yes. SmartRooms Qatar supplies on purchase orders (LPOs) and government tenders, including Monaqasat, with payment by bank transfer, cheque or purchase order. For example, a private school in Al Wakrah fitting out several classrooms can list 65-inch units on one LPO. Quotations are usually issued within one working day, and because the model is discontinued, the quote will confirm the current equivalent.

What should a hospital training room in Doha check before choosing a replacement for a TRUTOUCH VN?

Start with screen size, wall load and room temperature. Compare the display area, net and gross weights, VESA pattern and ports of the replacement against the original TT model you are replacing. Confirm the room is air-conditioned within the operating range and that the software your trainers use runs on the proposed system. The SmartRooms Qatar team can check these points in the quotation.
