CTP20

What the Yealink CTP20 does at the meeting table

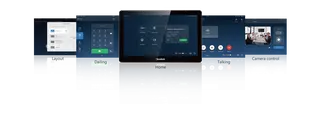

The Yealink CTP20 is a 13.3-inch touch panel that sits on the conference table and handles meeting control for a compatible Yealink video conferencing endpoint. Instead of using a remote, participants can preview and adjust the camera, join or create a meeting, change the participant layout and start recording directly on the screen. It is built for small and medium meeting rooms where one person runs the call and everyone else needs a simple, shared surface.

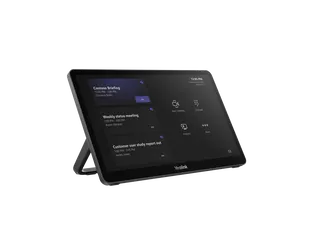

This model is discontinued. Yealink ended sales of the CTP20 on 30 June 2023, and new orders are no longer accepted. Yealink's end-of-life policy states that the first year after end of sale includes hardware and software technical support along with bug and security fixes. From the second to the fifth year, Yealink attempts software bug fixes but does not add new features, and hardware spares depend on local distributors and stock. SmartRooms Qatar can quote a current compatible replacement if you need a new panel.

Display, touch and writing specifications

• 13.3-inch IPS full HD capacitive touch screen at 1920 x 1080 (16:9)
• 10-point multi-touch for several people working on the screen at once

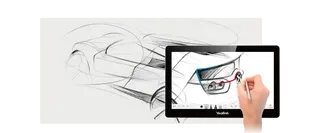

• Built-in whiteboard that shows handwriting as it is written
• Active capacitive pen with 1,024 pressure levels
• Stand adjustable from 15 to 70 degrees
• Dimensions 321.5 x 118 x 196 mm (W x D x H)

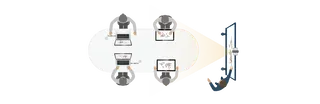

Up to four CTP20 units can share one system when paired with the VC880, VC800 or VC500 endpoint, while the VC200 supports one unit at a time. When paired with the WPP20 wireless presentation pod, participants can annotate shared content on the panel and gain reverse control of the computer. The WPP20 is a separate Yealink product.

Connectivity, power and what to confirm before ordering

The panel connects to the endpoint over a single RJ45 Ethernet cable that also carries power through PoE (IEEE 802.3af, 48V 0.27A), or over 2.4G/5G Wi-Fi (IEEE 802.11n/ac). Power consumption is 7W. A USB 2.0 Type-A port records to a USB flash drive. Yealink states that the built-in microphone and USB 2.0 Type-C content sharing with a PC will be supported through software updates, so confirm the firmware status with SmartRooms Qatar before relying on them.

• Check that the PoE switch or injector used for the CTP20 supports 802.3af at the panel's rating
• Choose cable or Wi-Fi depending on the table layout and whether cable routing is possible
• Measure the desk space for the 321.5 mm wide footprint and the stand angle
• Confirm the endpoint model, since VC880, VC800, VC500 and VC200 work with this panel

Where it fits in Qatar

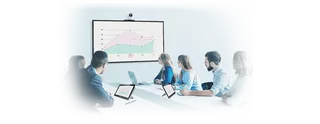

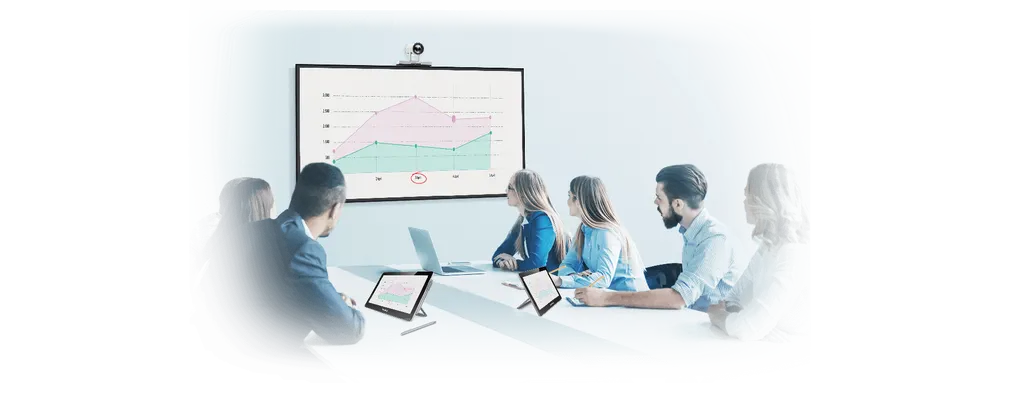

In a small boardroom in West Bay or Msheireb, a CTP20 at the table lets the chair start a call with the Doha team and a partner office abroad without leaving the table. In a university research room in Education City, it suits small group sessions where students and faculty annotate shared material on the whiteboard. A government office that runs Arabic and English sessions side by side can use the panel to switch layouts and manage recording from one place.

The source data does not give an operating temperature range for the CTP20. Keep the panel inside air-conditioned meeting rooms, away from direct sunlight and dust, and ask the SmartRooms Qatar team to confirm the environment before placing it near windows or in a lobby exposed to Qatar's summer heat.

Planning the order and installation

Send SmartRooms Qatar your endpoint model, room layout and the number of panels, and we will arrange a free site survey to check cable routes, switch ports and table space before anything is installed. Quotations are usually issued within one working day. Multi-room orders can be raised on an LPO, and government tenders follow the same route. Then request a quote for this panel, or for a current equivalent that matches your endpoint.
