Name: Yealink UVC84 4K PTZ Camera for Meeting Rooms (Discontinued)
Brand: Yealink
SKU: yealink-uvc84
Availability: Discontinued

Overview

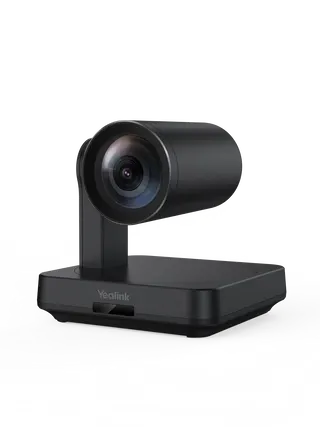

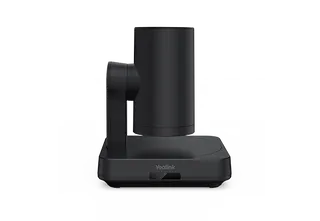

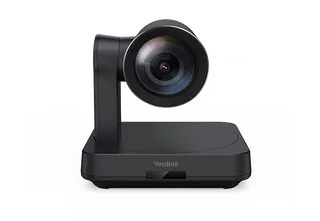

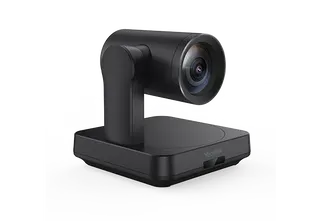

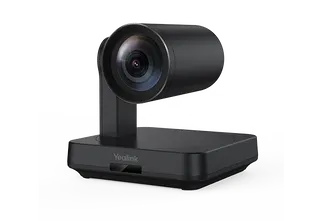

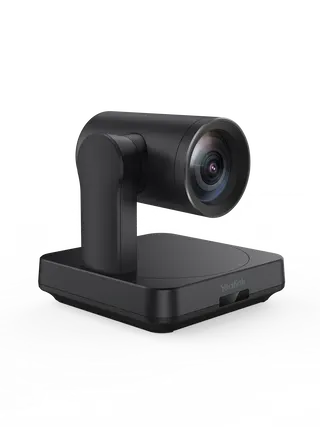

The Yealink UVC84 is a 4K USB PTZ camera for medium and large meeting rooms, with 12x optical zoom, 3x digital zoom and an 80° field of view. Its Auto Framing keeps participants in shot, and it pans ±100° and tilts 45° up or 90° down. Yealink has discontinued this model, so existing owners and replacement buyers in Qatar should request a quote for a current equivalent.

What the Yealink UVC84 is and where it fits

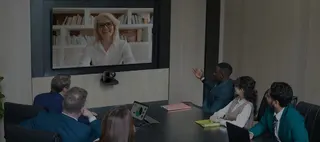

The Yealink UVC84 is a 4K USB PTZ camera designed for medium and large meeting rooms. One unit combines a 4K sensor, 12x optical zoom and an 80° field of view, enough to frame a full table of participants in a boardroom while keeping people at the far end clear for remote callers. A boardroom in West Bay or Msheireb, a seminar room in Education City or a hotel meeting room near Hamad International Airport can all use it when attendees sit along a long table. Yealink has discontinued the model, so this page serves organisations that already run one, buyers comparing it with newer cameras, and anyone who needs a replacement.

Lens, framing and movement

The camera pairs its 4K sensor with a lens that zooms 12x optically, plus 3x digital zoom, which Yealink lists as 36x HD zoom in total. Mechanical pan reaches ±100°, and tilt runs from 45° upward to 90° downward. Auto Framing adjusts the shot to the people in the room, so staff can focus on the discussion rather than steering the camera. Nine camera presets let a chair or technician return to set positions quickly, and manual control is available through the VCR20 remote or Yealink camera control plug-in software.

Auto Framing keeps participants in shot without manual PTZ work.
Nine presets recall set camera positions for regular seating layouts.
Privacy: the lens turns down automatically when a meeting ends and turns back on when the next one starts.

Connections, audio and power

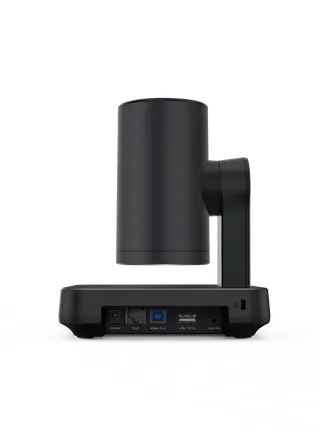

The UVC84 has one USB 2.0 Type-B port and one USB 2.0 Type-A port, along with a 3.5mm line-out, a Yealink microphone port using an RJ-45 connector, a power port, a security lock slot and a reset slot. It is designed to work with the VCM34 array microphone, the VCM38 ceiling microphone and the MSpeaker II soundbar, so camera and audio can be specified as one room package. The box includes a 7m USB cable, a wall bracket with accessories, the VCR20 remote and a power adapter rated for AC 100 to 240V input with 48V DC output at 0.7A.

Planning a UVC84 installation in Qatar

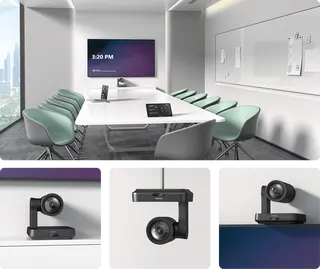

Rooms with large windows or glass walls need careful placement, because strong backlight can wash out faces. The camera can sit on a conference table, on top of a TV, on a stand or tripod, or be mounted on a wall or ceiling. It weighs 2.9 kg and its working height ranges from 156 mm to 192 mm, so check the mounting surface and cable route before ordering. The operating range is 0 to 40°C and 10 to 95% humidity. Qatar summer temperatures can exceed 45°C outdoors, so keep the camera in an air-conditioned room, away from windows, direct sunlight and strong supply vents. A free site survey is worth booking before any ceiling or wall fixing.

Discontinued status and support

Yealink ended sale of the UVC84 on 30 June 2025, and new orders are no longer accepted. Under the manufacturer's end-of-life policy, the first year after end-of-sale includes hardware and software technical support, bug fixes and security fixes. From the second to the fifth year, Yealink attempts software bug fixes but adds no new features, and hardware spares depend on local distributors and stock. Sites that rely on the UVC84 should plan replacements early. Request a quote from SmartRooms Qatar for a current equivalent that suits your room size, or for a compatible replacement. Send your room dimensions, camera count and mounting plan, and the team will prepare a quotation, usually within one working day.

Highlights

4K sensor with 12x optical and 3x digital zoom
80° field of view with built-in Auto Framing
Pan ±100°, tilt 45° up to 90° down, nine presets
USB 2.0 Type-B and Type-A ports plus 3.5mm line-out
Designed to pair with VCM34, VCM38 and MSpeaker II
Operating range 0–40°C, 10–95% humidity

Room fit

Tell us the room size and platform (Teams, Zoom or BYOD) and we confirm the right combination with your quotation.

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

12 specifications · Source: manufacturer · checked Oct 2026

Package Content1

Details: UVC84 Camera VCR20 remote control Power adapter Wall bracket and accessories 7m USB cable

Camera2

Pan: ±100°, Tilt: +45°, -90°
Details: 4K sensor 80° FoV 36X HD Zoom, 12X optical plus 3X digital zoom 9x Camera presets

UVC84 Connections1

Details: 1 x USB2.0 Type-B port 1 x USB2.0 Type-A port 1 x Yealink microphone port (RJ-45) 1 x 3.5mm line-out port 1 x Power port 1 x Security lock slot 1 x Reset slot

Product Specification5

- Sleeping Dimensions (W.D.H): 156 mm x 156 mm x 183 mm
- Working Dimensions (W.D.H): 156 mm x 156 mm x 156 mm
- Working Height: 156 mm - 192 mm
N.W: 2.9 kg
Details: UVC84 Camera:

Other Physical Features3

External Yealink Power Adapter: AC 100~240V input and DC 48V/0.7A Output
Operating humidity: 10 - 95%
Operating temperature: 0 - 40℃

Downloads

10 files from the manufacturer

Questions about UVC84

Is the Yealink UVC84 still available to order in Qatar?

No. Yealink discontinued the UVC84 with an end-of-sale date of 30 June 2025, so new orders are not accepted. SmartRooms Qatar can still prepare a quote for a current 4K PTZ camera suited to medium or large rooms, or for a compatible replacement. Quotations usually arrive within one working day, and ministries, government bodies and schools can issue an LPO or take part in government tenders. Send your room size and camera count to start.

What room size is the UVC84 designed for?

The UVC84 is designed for medium and large meeting rooms. Its 80° field of view and 12x optical zoom let one camera cover a full boardroom table or a training room where participants sit at different distances from the lens. Smaller huddle spaces for four to six people usually need a narrower camera. Check your seating plan and the distance to the camera with the SmartRooms Qatar team before deciding.

How much zoom and field of view does the camera offer?

The UVC84 provides 12x optical zoom and 3x digital zoom, which Yealink lists as 36x HD zoom in total, with an 80° field of view. It pans ±100° and tilts 45° upward or 90° downward. The 4K sensor gives remote participants clear detail when they view a shared screen, and a speaker at the far end of a long table can be framed without moving the camera by hand.

Can it frame participants automatically during a meeting?

Yes. Auto Framing is built in, so the camera adjusts its shot to the people in the room and staff do not need to steer it during a call. Manual control remains available through the VCR20 remote or Yealink camera control plug-in software, and nine camera presets can be recalled for regular seating layouts. This suits a company boardroom in Doha where the chair wants attention on the agenda rather than on the camera.

Which microphones and soundbar is it designed to work with?

Yealink designed the UVC84 to pair with the VCM34 array microphone, the VCM38 ceiling microphone and the MSpeaker II soundbar. The microphones connect through the Yealink microphone port, an RJ-45 connector on the camera. Whether an array or ceiling microphone suits a room in Lusail or Msheireb depends on the room layout and display position. Ask for a quote that lists the full audio kit before you order.

Which ports does the camera have for connecting to a computer?

The camera has one USB 2.0 Type-B port and one USB 2.0 Type-A port, a 3.5mm line-out, a Yealink microphone port using RJ-45, a power port, a security lock slot and a reset slot. The package includes a 7m USB cable. Plan the cable route from the table or display to the computer so it stays within that length, and check the route before installation.

Will it work in a Doha boardroom during the summer?

Use it in an air-conditioned room within its operating range. The UVC84 is rated for 0 to 40°C and 10 to 95% humidity, while Qatar summer temperatures outdoors can exceed 45°C. Mount the camera away from windows, direct sunlight and strong air-conditioning outlets, and ask SmartRooms Qatar to review the room before installation, including a free site survey.

What comes in the box?

The package includes the UVC84 camera, the VCR20 remote control, a power adapter, a wall bracket with accessories and a 7m USB cable. The camera measures 156 mm by 156 mm by 156 mm in working position and weighs 2.9 kg. Before ordering, confirm whether you need extra mounting hardware, a longer cable or microphones, so the quotation covers the full installation.

Can it be wall or ceiling mounted in a meeting room?

Yes. The UVC84 can sit on a conference table, on top of a TV, on a TV stand or tripod, or be mounted on a wall or ceiling using the included wall bracket and accessories. Its working height ranges from 156 mm to 192 mm. Before fixing anything into a ceiling in a Lusail office or a Msheireb conference room, book a free site survey to confirm the bracket position, cable route and sightlines.

Does the power adapter suit Qatar's 240 V supply?

The external adapter accepts AC input from 100 to 240V and outputs 48V DC at 0.7A, so its input range covers Qatar's 240 V, 50 Hz mains. Qatar sockets use BS 1363 (Type G) plugs. Ask SmartRooms Qatar to confirm the plug type supplied with the adapter before you order, so your electrician can plan the socket position and cable run.

What happens to privacy when a meeting ends?

The UVC84 turns its lens down automatically when a meeting ends and turns it back on when the next one starts. This matters in offices where a camera sits in a shared room, such as a corporate head office in Doha or a government department. Confirm your camera-use policy with your IT and security teams before rollout.

What support is still available for a UVC84 already in use?

The manufacturer's end-of-life policy provides full technical support, bug fixes and security fixes during the first year after end-of-sale. From the second to the fifth year, Yealink attempts software bug fixes but adds no new features, and hardware spares depend on local distributors and stock. If your site relies on the UVC84, plan replacements early. SmartRooms Qatar can quote for a current equivalent when you are ready.
