Name: Hisense 86X1EE 86-inch LiteBoard Interactive Display (Discontinued)
Brand: Hisense
SKU: hisense-86x1ee
Availability: Discontinued

Overview

The Hisense 86X1EE is an 86-inch model from the X1EE LiteBoard series, discontinued by the manufacturer. It pairs a 3840 x 2160 VA panel with 400 nits typical brightness and infrared touch supporting up to 40 points. Its operating system-free design suits schools and meeting rooms in Qatar that already own this model. Buyers comparing it with newer panels can request a quote for a current equivalent or replacement.

What the Hisense 86X1EE is and why it is listed as discontinued

The Hisense 86X1EE is an 86-inch interactive display from the X1EE LiteBoard series. The manufacturer has discontinued this model, so it is no longer part of its current range. Organisations that already run it, or are comparing it with other panels, can use the specifications below to plan a like-for-like replacement or a comparison, and SmartRooms Qatar can quote a current equivalent for the same room.

Panel and touch facts that matter in daily use

The screen uses a 3840 x 2160 VA panel with a D-LED backlight, 400 nits typical brightness and a 4000:1 typical contrast ratio. A 178-degree horizontal and vertical viewing angle keeps content readable for people seated at the sides of a classroom or boardroom. The display shows 1.07 billion colours through 10-bit processing and covers 72% of the NTSC colour gamut. Its refresh rate is 60Hz and its typical response time is 8 ms.

Touch is provided by an infrared frame with anti-glare glass on the surface. The listed capacity is up to 40 touch points, with a minimum touch object of 2 mm and a writing height of 3 mm or less. Touch accuracy is rated at 90 percent within ±1 mm, and multi-touch is listed for Windows and Android.

Connectivity, power and control

Inputs: three HDMI 2.0 inputs, one USB-C input, one USB 2.0 port, one USB 3.0 port and an RS232 control input on an RJ45 connector.
Expansion: one optional OPS slot, with an OPS power output rated DC 18V 5A.
Audio: built-in speakers rated 2 x 15 W plus 20 W, and one audio output.
Power: input rated AC 100 to 240 V at 50/60 Hz, with typical consumption of 226.7 W without OPS and a maximum of 430 W.

The product has no built-in Wi-Fi, Bluetooth or camera, so any wireless use depends on an external source or a separately fitted module, which should be confirmed before purchase. The listed certifications include CE, FCC, UKCA and Energy Star.

Where it fits in Qatar

In a secondary school in Al Wakrah fitting out a new assembly room, a panel this size gives a whole class a readable surface for lessons. At a training centre in Education City, several HDMI inputs and the RS232 control port help staff who move between laptops and a fixed room system.

In a government meeting room in Msheireb, the display can serve as the main screen for teams presenting in English and Arabic. Arabic is not among the listed menu languages, so menu language should be confirmed before purchase. In a conference room in West Bay, the 4000:1 typical contrast ratio suits presentations in rooms where the lighting is dimmed.

What to plan before you order

Weight: 54.5 kg net and 72.5 kg packed, so plan for at least two people and a suitable route for delivery.

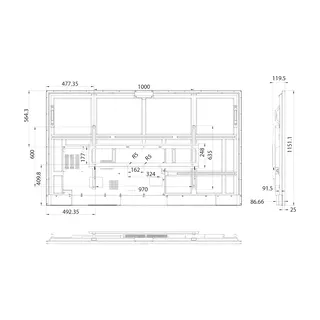

Wall mounting: VESA pattern 1000 x 600 mm with four M8 screws. Check the wall structure or mobile stand before ordering.
Size: 1954.2 x 1151.1 x 98 mm. Measure the room and the approach route together.
Environment: the source data does not state an operating temperature range, so confirm room conditions, including heat from sun-facing glass, with the SmartRooms Qatar team.

SmartRooms Qatar offers a free site survey before wall-mounting a panel of this weight, and professional installation can be included in the quotation. Schools and government bodies ordering several units can issue a purchase order or LPO, or follow a tender through Monaqasat. Request a quote and we will confirm the current equivalent options for your room.

Highlights

86-inch 3840 x 2160 VA panel with 400 nits typical brightness
Infrared touch frame supporting up to 40 touch points
Operating system-free design with one optional OPS slot
Three HDMI 2.0 inputs, USB-C, USB 3.0 and RS232 control
Built-in speakers rated 2 x 15 W plus 20 W
Listed as discontinued by Hisense; quote for a current equivalent

Classroom fit

At 86″ the farthest student should sit within about 6.4 m (6× the screen height).

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

44 specifications · Source: manufacturer · checked Oct 2026

Interactive Display panel12

LCD Size: 86’’
Backlight Type: D-LED
Panel Type: 86": VA
Resolution: 3840 x 2160 (Pixels)
Brightness: 400nits(typ.)
Contrast Ratio: 4000:1(typ.)
Response Time: 8ms(typ.)
Refreshing Frequency: 60Hz
Viewing Angle: 178°(H) / 178°(V)
Lifetime(typ.): 50,000 hrs
Colour Gamut(X% NTSC): 72%
Display Colours: 1.07B(10bit)

System5

CPU: Architecture - 32bits RISC CPU - 8031 CPU for STB Working Frequency - 633MHz
GPU: N/A
RAM: 64MB
OS: N/A
Language: English (default), Chinese, French, Spanish, German, Italian, Polish, Finnish, Norwegian, Swedish, Thai, Indonesian, Japanese, Russian, Vietnamese

Power5

Power Requirements: AC 100V ~ 240V, 50/60Hz
Power Consumption(Max.): 430W (Max)
Power Consumption(Typ.) Without OPS: 226.7WTyp. /
Speaker: Built in speaker - 2x15W+20W - External - /
OPS Power: DC 18V / 5A

Physical7

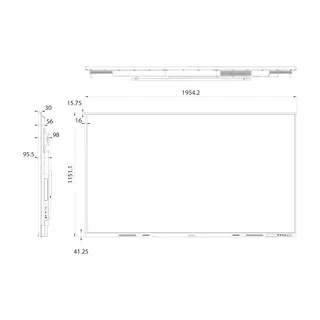

Product Size (W x H x D): 1954.2 x 1151.1 x 98mm / 77 x 45.3 x 3.8 inch
Package Size (W x H x D): 2095 x 1283 x 240mm / 82.5 x 50.5 x 9.4 inch
Net Weight: 54.5kg / 120.1lbs
Packed Weight: 72.5kg / 159.8lbs
Housing Material: Front Shell: Aluminium / Rear Shell: Plastic
Housing Colour: Black + Tarnish
VESA: 1000 x 600mm, 4-M8 Screw

Connectivity6

Wi-Fi: N/A
Bluetooth: N/A
NFC: No
Camera: No
Input: HDMI(2.0) IN - x3 DP(1.2a) IN - / VGA IN - / Mic IN - / OPS(Optional) - x1 LAN - / USB2.0 - x1 USB3.0 - x1 Type-C - x1 Audio IN - N/A RS232 IN - x1 (RJ45) Service - x1
Output: RS232 OUT - N/A HDMI OUT - / AV OUT - / S/PDIF - / Touch - x2 Audio OUT - x1

Touch8

Sensing Type: Infrared Touch Frame
Surface Protection: Anti-Glare Glass
Infrared Touch: ≤40 points
Touch Accuracy: 90%(±1mm)
Theory Clicks: Unlimited
Minimum Touch Object: ≥2mm
Writing Height: ≤3mm (Spport Quatro Sense)
Windows 10/8/7, Android: Multi Touch

Certification1

Standard Certification: CB / CE / ERP / SouthAfrica Energy Efficiency / cTUVus / CEC / FCC / UKCA / Energy Star

Downloads

2 files from the manufacturer

PDF Datasheets 86X1EE_Datasheet_V3.pdf 1.6 MB PDF Brochures LiteBoard_Brochure_v3.pdf 4.8 MB

Questions about 86X1EE

Is the Hisense 86X1EE still sold by the manufacturer?

No. Hisense lists the 86X1EE under discontinued end-of-life products, so this exact model may not be available to order. SmartRooms Qatar can quote a current equivalent or a compatible replacement for your room. Send the room size, the mounting method and the inputs you need, and the team will confirm which option suits your order.

Who is the 86X1EE best suited to in Qatar?

It suits an 86-inch display in a lecture hall, a large meeting room or a boardroom where a group needs to see the same content at once. A school in Al Wakrah fitting out an assembly room, or a company in West Bay running client presentations, would benefit from the 3840 x 2160 resolution and 178-degree viewing angle, which keep text readable from side seats. Buyers who already own one can compare its specifications with a newer panel before deciding.

How good is the picture for presentations and documents?

The panel delivers 3840 x 2160 resolution, 400 nits typical brightness and a 4000:1 typical contrast ratio. It shows 1.07 billion colours through 10-bit processing and covers 72% of the NTSC colour gamut, with a 60Hz refresh rate and 8 ms typical response time. These figures suit slide decks, spreadsheets and video calls in a bright meeting room. For colour-critical design work, compare the 72% NTSC figure with your requirement before ordering.

Does the 86X1EE run its own operating system, and can it work wirelessly?

The source data lists no operating system and no GPU, because the display uses an operating system-free design. Content comes from a connected source such as a laptop, a PC or an optional OPS module, through HDMI, USB-C or USB. It has no built-in Wi-Fi, Bluetooth or camera. A meeting room in Doha that depends on wireless sharing should confirm the method with the SmartRooms Qatar team before ordering.

Can I add a computer module to the display?

Yes. The display has one optional OPS slot and provides OPS power rated DC 18V 5A. An OPS module lets a school or office run a computer inside the panel itself, which suits a teacher in a Doha school who wants the room ready without carrying a separate laptop. The data does not list specific compatible modules, so confirm the module type with the SmartRooms Qatar team.

What touch performance does the model offer?

It uses an infrared touch frame with anti-glare glass on the surface. The source lists up to 40 touch points, a minimum touch object of 2 mm, a writing height of 3 mm or less, and touch accuracy of 90 percent within ±1 mm. Multi-touch is listed for Windows and Android. These figures help a classroom or training room judge whether direct writing on the screen will work for its lessons.

Can the on-screen menu be set to Arabic?

Arabic is not among the menu languages listed in the source data. The listed options include English as the default, plus Chinese, French, Spanish, German, Italian, Japanese and others. In a government office in Msheireb where staff work in Arabic and English side by side, confirm the menu language with the SmartRooms Qatar team before ordering, so the display matches how your staff operate it.

Will it work with Qatar's power supply?

The power input is rated AC 100 V to 240 V at 50/60 Hz, which covers Qatar's 240 V, 50 Hz mains supply. Typical consumption is 226.7 W without the OPS module, with a maximum of 430 W. These figures help facilities teams plan circuits for a hall with several units. Confirm the power cable and plug configuration on your quotation before installation.

How heavy is it, and what wall mount does it need?

The net weight is 54.5 kg and the packed weight is 72.5 kg. The VESA pattern is 1000 x 600 mm with four M8 screws, and the body measures 1954.2 x 1151.1 x 98 mm. In a hall at Education City, plan for two people and a clear path for the delivery. SmartRooms Qatar offers a free site survey to check the wall structure before a panel this heavy is mounted.

Can it be controlled by a room control system?

Yes. The display has an RS232 input on an RJ45 connector, and the source data lists RS232 control as a function. This allows the display to be integrated with a room control system used by a facilities team. Before ordering, confirm the command set your system requires, because the source data does not publish a full command list.

Is it suitable for a room with sun-facing windows in Doha summers?

The source data does not state an operating temperature range, so it cannot confirm performance in hot conditions from the information available. Summer temperatures in Qatar can exceed 45°C, so a room with sun-facing glass should be assessed before installation. Ask the SmartRooms Qatar team to review the room, blinds and air conditioning, and confirm the operating environment in writing with your quotation.

How can a school order several units using a purchase order?

This model is sold by quotation. SmartRooms Qatar accepts purchase orders (LPOs), and payment by bank transfer, cheque or purchase order. A school ordering several 86X1EE units can send the quantities and a room list with its LPO, and the team usually responds with a quotation within one working day. Government tenders can be followed through Monaqasat, and delivery covers all eight municipalities of Qatar.
