Promethean AP9-A86 (Discontinued) · Replacements in Qatar

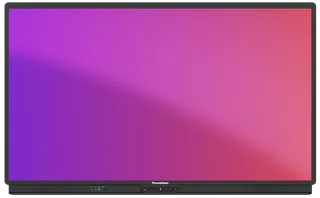

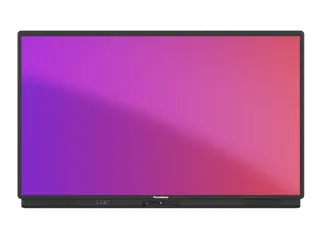

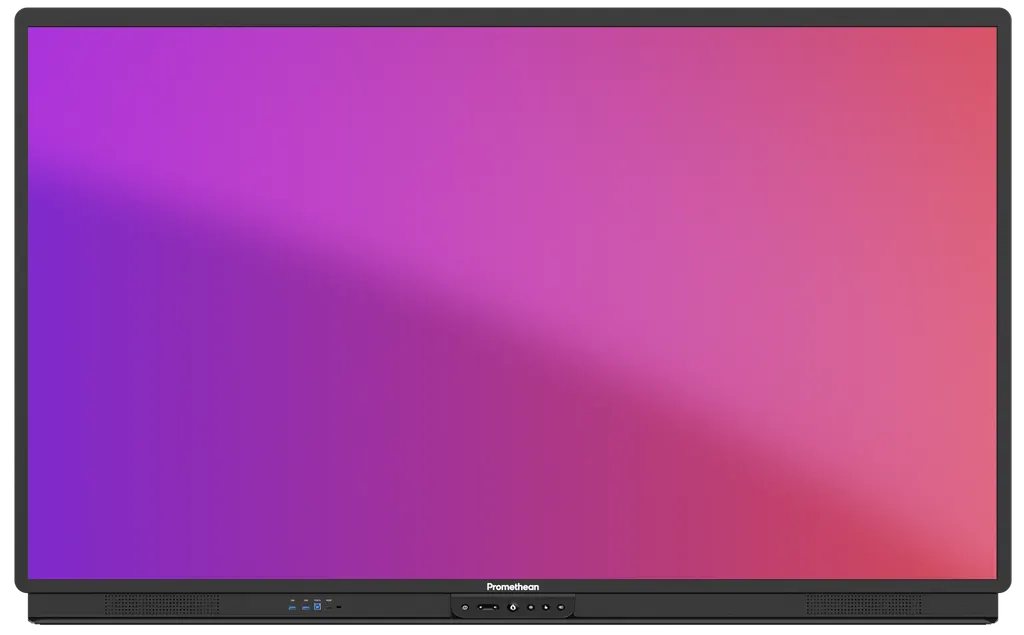

Name: Promethean ActivPanel 9 AP9-A86 86-inch Interactive Display
Brand: Promethean
SKU: promethean-ap9-a86
Availability: Discontinued

Overview

The Promethean ActivPanel 9 AP9-A86 is an 86-inch 4K UHD interactive display with 20 continuous touch points, two battery-less pens and an OPS slot for a plug-in computing module. It also offers Wi-Fi 6, a 60 W USB-C port and ActivInspire Professional. The manufacturer has discontinued this model, so SmartRooms Qatar quotes a current equivalent or compatible replacement for boardrooms, lecture halls and large training rooms in Qatar.

What this 86-inch ActivPanel 9 is

The Promethean ActivPanel 9 AP9-A86 is an 86-inch interactive display built around a 4K UHD TFT LCD panel with direct LED backlighting. It runs ActivPanel OS, an Android-based system, on a quad-core ARM Cortex-A73 processor with 4 GB of RAM and 32 GB of internal storage. The manufacturer has discontinued this model. This page is written for organisations that already own one, for buyers comparing it with newer models, and for anyone who needs a current equivalent or a compatible replacement.

Display and touch figures that matter in a large room

Resolution: 3840 x 2160 pixels at 60 Hz, across a display area of 1895 x 1066 mm.
Brightness and contrast: 400 cd/m² rated brightness, with a 5000:1 dynamic and 1200:1 static contrast ratio.
Glass: 4 mm heat-tempered, anti-glare and anti-fingerprint glass, bonded to the panel, with 9H pencil hardness.
Touch: 20 continuous touch points, 1 mm touch accuracy and a 200 Hz scan rate.

At 86 inches the screen gives a group a wide working surface, and the 4K resolution keeps small text and fine diagrams sharp when a presenter stands close to the glass. Palm rejection and palm erase, together with pen and touch differentiation, let a presenter rest a hand on the glass while writing with a pen. The ambient light sensor helps the display respond to room lighting, which matters where windows or bright ceiling lights are present.

Connectivity, OPS and the ActivPanel OS

The rear and front panels provide three HDMI 2.0 inputs in total, a single HDMI 2.0 output, one DisplayPort 1.2 input and a USB-C 3.2 Gen 1 port that delivers 60 W Power Delivery to a connected laptop. A single OPS slot takes a plug-in computing module, which lets the room run the software staff already use without a separate PC on the desk. Wi-Fi supports 802.11 a/b/g/n/ac/ax with dual band and Wi-Fi 6, Bluetooth is 5.0, and the RJ45 LAN ports run at 1 Gbps with Wake-on-LAN. The panel also includes a Trusted Platform Module, cloud-based user profiles, over-the-air updates and Promethean Admin Tools for managing panels remotely.

Where the 86-inch model fits in Qatar

Three situations suit this size well:

A university lecture hall in Education City, where a lecturer writes, annotates and plays video for a full cohort, with the OPS slot keeping the lecture computer at the front of the room.
A government authority boardroom in Doha that connects with teams abroad, using the HDMI and USB-C inputs for laptop presentations and the built-in speakers for remote participants.
A private school in Al Rayyan converting a large assembly or multipurpose hall, where the Explain Everything Whiteboard and the included ActivInspire Professional licence support lessons.

Qatar summer heat, which regularly passes 45 °C outdoors, makes room climate control part of the planning. The rated operating range is 0 °C to 40 °C with 20% to 80% non-condensing humidity, and storage is rated from -15 °C to 55 °C. Confirm the room conditions with the SmartRooms Qatar team before placing the panel near a window or an unconditioned entrance.

Planning the installation and the discontinued status

The panel measures 1975 x 1208 x 113 mm and weighs 69.6 kg net, or 83.4 kg packed, so a wall mount must be rated for that load. It uses an 800 x 600 mm VESA pattern, and the box includes four M6 VESA screws, a mini PC bracket and three cable management hooks sized for this model. The manufacturer recommends installation by a qualified installer. SmartRooms Qatar offers free site surveys, which we suggest before any wall fixing because they confirm wall structure, cable routes and socket positions. Typical power draw is 189 W, and standby draw is 0.5 W or less. The source data does not list Energy Star certification for this 86-inch model, so check that requirement before a government tender.

Because the AP9-A86 is discontinued, a quotation is the best route to current stock or a compatible replacement. Request a quote with your room dimensions, the number of units and your deadline, and the SmartRooms Qatar team will reply, usually within one working day.

Highlights

86-inch 4K UHD panel at 3840 x 2160 and 60 Hz
20 continuous touch points with 1 mm touch accuracy
Two battery-less pens and a full-length pen tray
One OPS slot, HDMI 2.0 inputs and 60 W USB-C
Wi-Fi 6, Bluetooth 5.0 and 1 Gbps LAN ports
ActivInspire Professional licence included in the box

Classroom fit

At 86″ the farthest student should sit within about 6.4 m (6× the screen height).

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

88 specifications · Source: manufacturer · checked Oct 2026

Display18

Screen Size and Resolution: 65" 4K; UHD (3840 x 2160 @ 60 Hz) 75" 4K; UHD (3840 x 2160 @ 60 Hz) 86" 4K; UHD (3840 x 2160 @ 60 Hz)
Screen Type: TFT LCD (Direct LED Backlight)
Blue Light Reduction: Yes
Bonded Glass: Yes
Aspect Ratio: 16:9
Display Area: 65" 4K: 1429 x 804 mm (56.3 x 31.7 in) 75" 4K: 1652 x 930 mm (65 x 36.6 in) 86" 4K: 1895 x 1066 mm (74.6 x 41.9 in)
Display Colours: 1.07 Billion (10-bit)
LCD Viewing Angle: 178°
LCD Response Time: 8 ms
LCD Refresh Rate (Panel): 60 Hz
LCD Brightness (Brightness of display without cover glass): 455 cd/m²
LED Lifespan: 50,000 hours
Contrast Ratio: 5000:1 Dynamic 1200:1 Static
Brightness: 400 cd/m²
Ambient Light Sensor: Yes
Glass Hardness: 9H (pencil) , 7 (Mohs)
Glass Type: Heat tempered, Anti-Glare, Anti-Fingerprint
Glass Thickness: 4 mm

Interactivity18

Vellum Touch Technology: Yes
Continuous Touch Points: 20
Touch Resolution: 32768 x 32768 px
Response Time: 10 ms
Touch Accuracy: 1 mm
Tracking Rate: 4 m/s
Scan Rate: 200 Hz
Gestures and Edge Swipes: Windows ® supported
Unique Pen IDs: 1
Pen and Touch Differentiation: Yes
Palm Erase: Yes
Palm Rejection: Yes
Pens Included: Yes, 2
Pen Type: Battery-less pen
Pen Holder: Integrated full-length pen tray
Pen Tip Diameter: 3 mm
Classroom Essential Apps: Including Explain Everything Whiteboard, Annotate, Timer, Spinner, Screen Capture, Screen Recording, Screen Share, Browser, PDF Reader, Media Player
Compatibility: Windows ® 7 to 11; Mac OS ® 10.8 to 10.11; macOS ® Sierra 10.12.1 or later; Linux ® Ubuntu 20.04 LTS; Chrome OS™

Computing7

Operating System: ActivPanel OS (Android-based)
RAM: 4 GB
Internal Storage: 32 GB
CPU: ARM CORTEX - A73 x 4
GPU: ARM Mali-G71 MP3
Trusted Platform Module: Yes
Cloud Based User Profiles: Yes

Audio1

Dual Front-facing Speakers: 2 x 21 W (peak)

Connectivity21

OPS Slot: 1
HDMI In (Rear): 2 (2.0)
HDMI In (Front): 1 (2.0)
Display Port: 1 (1.2)
USB-A 2.0 (Rear): 1
USB-C 3.2 Gen 1 (Rear): 1 (60 W Power Delivery)
USB-B 3.2 Gen 1 (Touch, Front): 1
USB-B 3.2 Gen 1 (Touch, Rear): 3
USB-A 3.2 Gen 1 (Front): 2
USB-A 3.2 Gen 1 (Rear): 2
MicroSD Slot: Yes
LAN In (RJ45): 1 Gbps
LAN Out (RJ45): 1 Gbps
Wake-on-LAN: Yes
Wi-Fi (Client) *: IEEE 802.11 a/b/g/n/ac/ax, Wi-Fi 6 and dual band supported
Bluetooth *: 5.0
HDMI Out: 1 (2.0)
AV-In (3.5 mm): 1
Mic (3.5 mm): 1
Audio Out (3.5 mm): 1
RS-232: 1

Panel Management2

OTA Updates: Yes
Promethean Admin Tools: Yes Page 1

Power3

Power Requirements: 100 V - 240 V AC
Power Consumption (Typical): 65": 120 W 75": 131 W 86": 189 W
Ultra-Quiet Fanless Design: Yes

Environmental4

Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F)
Storage Temperature: -15 °C to 55 °C (-5 °F to 131 °F)
Operating Humidity: 20% to 80% non-condensing humidity
Storage Humidity: 20% to 90% non-condensing humidity

Compliance & Certification2

Regulatory Certifications: CE, FCC, IC, UL, CUL, CB, RCM
Energy Star Certified: 65" 4K: Yes 75" 4K: Yes 86" 4K: No

Physical Specifications6

Panel Dimensions: 65": 1509 x 946 x 113 mm (59.4 x 37.2 x 4.4 in) 75": 1730 x 1070 x 113 mm (68.1 x 42.1 x 4.4 in) 86": 1975 x 1208 x 113 mm (77.8 x 47.6 x 4.4 in)
Packed Dimensions: 65": 1660 × 1045 × 220 mm (65.4 x 41.1 x 8.7 in) 75": 1900 × 1160 × 225 mm (74.8 x 45.7 x 8.9 in) 86": 2160 × 1310 × 225 mm (85 x 51.6 x 8.9 in)
Panel Net Weight: 65": 43.2 kg (95.3 lb) 75": 55.3 kg (121.9 lb) 86": 69.6 kg (153.4 lb)
Packed Weight: 65": 53.5 kg (118 lb) 75": 67.5 kg (148.8 lb) 86": 83.4 kg (183.9 lb)
Wall Mount* Dimensions: 1010 x 720 x 52 mm (39.8 x 28.3 x 2.0 in)
VESA Mount Point: 65": 600 x 400 mm (23.6 x 15.7 in) 75": 800 x 400 mm (31.5 x 15.7 in) 86": 800 x 600 mm (31.5 x 23.6 in)

Education Software Licence1

ActivInspire ® Professional: Included

Packed Contents1

What’s in the Box: 1x ActivPanel 9 1x 3 m Length HDMI Cable 1x 3 m Length USB Cable (A-B) 1x 3 m Regional Power Cable 1x 2 m Length USB-C Cable 1x Remote Control 2x Batteries for Remote 2x Pens 1x Sealed Antistatic Bag 8x Desiccant 4x VESA Mount Screws (M6) 1x Mini PC Bracket with Screws (x2) 1x Quick Install Guide 2x Cable Management Hooks - 65" & 75" 3x Cable Management Hooks - 86"

Installation1

The installation of this product should be completed not supplied by Promethean or not meeting minimum safety and warranty. For more information, visit Support.PrometheanWorld.com.: by a qualified installer. Use of components specifications may impact performance,

Warranty1

Warranty term and upgrade options vary by region. information and visit PrometheanWorld.com/Warranty.: Contact your local reseller or distributor for

Support1

For all Promethean products, visit Support.PrometheanWorld.com.: Page 2

AP9-A861

size_inch: 86

Downloads

0 files from the manufacturer

No downloadable files are listed for this model yet. Ask us and we will send the datasheet.

Questions about AP9-A86

What is the Promethean AP9-A86 and who should buy it?

The AP9-A86 is an 86-inch interactive display with a 3840 x 2160 4K UHD panel, 20 continuous touch points and an OPS slot for a plug-in computing module. It suits lecture halls, boardrooms and large training rooms where a group shares one screen. Because the manufacturer has discontinued it, most buyers today ask for a current equivalent instead.

Has Promethean discontinued the AP9-A86?

Yes. The manufacturer has discontinued this model and announced an end of sale. If you need an 86-inch class interactive display, or a compatible replacement for an existing ActivPanel 9 installation, request a quote from SmartRooms Qatar. Include the room size, the number of panels and the mounting method so the reply can match your requirement.

What resolution and brightness does the 86-inch model offer?

The panel runs at 3840 x 2160 (4K UHD) at 60 Hz across a display area of 1895 x 1066 mm. The rated brightness is 400 cd/m², with a 5000:1 dynamic and 1200:1 static contrast ratio. The viewing angle is 178 degrees, and the LED backlight is rated for 50,000 hours.

How accurate is the touch for classroom or meeting use?

The panel supports 20 continuous touch points with 1 mm touch accuracy, a 200 Hz scan rate and a 10 ms response time. Palm rejection and palm erase are included, and the two battery-less pens have a 3 mm tip. Pen and touch inputs are distinguished, so a teacher can write with a pen while resting a hand on the glass.

What does the OPS slot do, and how many ports are on the panel?

The single OPS slot takes a plug-in computing module, so a PC can sit inside the display rather than on a separate desk. On the connectivity side there are three HDMI 2.0 inputs, one HDMI 2.0 output, one DisplayPort 1.2 input, a USB-C 3.2 Gen 1 port with 60 W Power Delivery, two RJ45 LAN ports at 1 Gbps and an RS-232 port.

Which operating systems and laptops can connect to it?

The source data lists compatibility with Windows 7 to 11, Mac OS 10.8 to 10.11, macOS Sierra 10.12.1 or later, Linux Ubuntu 20.04 LTS and Chrome OS. The built-in ActivPanel OS is Android-based, and gestures and edge swipes are supported on Windows. Check your laptops and any OPS module against this list before ordering.

Will it fit a wall in a Doha boardroom?

The panel measures 1975 x 1208 x 113 mm and weighs 69.6 kg net, or 83.4 kg packed, so the wall and mounting hardware must carry that load. The VESA pattern is 800 x 600 mm, and the box includes four M6 screws. SmartRooms Qatar offers free site surveys, which we recommend before fixing a panel of this size to a wall in a West Bay or Lusail office.

What power does it need, and does it suit Qatar's mains supply?

The power rating is 100 V to 240 V AC, which covers Qatar's 240 V, 50 Hz mains. Typical consumption is 189 W for the 86-inch model, and standby draw is 0.5 W or less. The box includes a 3 m regional power cable. Confirm socket positions with the installer so cable runs stay tidy and safe.

Can it be used in a hot room or outdoors in summer?

The rated operating range is 0 °C to 40 °C with 20% to 80% non-condensing humidity, and storage is rated from -15 °C to 55 °C. Qatar summers regularly exceed 45 °C outdoors, so the panel should sit in an air-conditioned room that stays within the operating range. Check with the SmartRooms Qatar team before placing it in an unconditioned lobby or near a sun-facing window.

What is in the box with the AP9-A86?

The box contains the ActivPanel 9, a remote control with two batteries, two pens, a 3 m HDMI cable, a 3 m USB A-to-B cable, a 2 m USB-C cable, a 3 m regional power cable, a mini PC bracket with screws, four M6 VESA screws, three cable management hooks sized for the 86-inch model and a quick install guide. ActivInspire Professional is listed as included.

Is the 86-inch model Energy Star certified for a government office purchase?

The source data lists Energy Star certification as Yes for the 65-inch and 75-inch models but No for the 86-inch model. The listed regulatory certifications are CE, FCC, IC, UL, CUL, CB and RCM. If an energy label is a condition of your ministry or authority tender, ask SmartRooms Qatar to confirm the position before you submit the bid.

Can a private school in Al Rayyan buy several units through an LPO?

Yes. SmartRooms Qatar accepts purchase orders (LPOs) and government tenders, including Monaqasat, and accepts payment by bank transfer, cheque or purchase order. For a school fitting out several large halls, send the list of rooms and their sizes so we can quote one batch. Availability is confirmed with the quotation, so plan site surveys and installation with that in mind.
